Whole genome-sequence analysis of Bacillus subtilis strain KC14-1 with broad-spectrum antifungal activity

BMC Genomics volume 26, Article number: 319 (2025) Cite this article

Abstract

Background

Bacillus is used as a biological control agent in agricultural production. The main mechanisms responsible for its biocontrol activity encompass the generation of various antifungal active substances during life activities, competition, antagonism with pathogens, promotion of growth, and induction of plant resistance, enhancing the inhibition of pathogenic fungi. Bacillus has high biological control potential and has become a research hotspot.

Results

It was found that strain KC14-1 had significant inhibitory effects on Fusarium fujikuroi, Rhizoclonia solani, Alternaria solani, Fusarium oxysporum, and Valsa mali. Based on morphological observations, physiological and biochemical determinations, and 16 S rRNA, gyrA, and gyrB gene sequencing, strain KC14-1 was identified as Bacillus subtilis. Whole genome sequencing results showed that the genome of strain KC14-1 was composed of a ring chromosome 3,908,079 bp in size, with a GC content of 43.82% and 3,895 coding genes. Anti-SMASH predicted that the genome of strain KC14-1 contained nine gene clusters that synthesised antibacterial substances. The homology between fengycin, bacillibactin, pulcherriminic acid, subtilosin A, and bacilysin was 100%.

Conclusion

The biocontrol potential of Bacillus subtilis KC14-1 was determined through whole-genome analysis. Our study provides a solid foundation for developing and utilising this strain.

Peer Review reports

Background

Plant disease incidence significantly limits agricultural production. The occurrence of plant diseases leads to an annual loss of approximately 10–15% of the global crop output, which translates into an economic loss of hundreds of billions of dollars [1] Chemical fungicides remain the primary tool used to prevent and control plant diseases [2]. However, due to their long-term use, many diseases have developed resistance [3] and severely affected the environment, threatening food safety and causing numerous other problems. Therefore, many chemical fungicides have been gradually banned, resulting in the inability to control plant diseases effectively. In particular, consumer requirements regarding the quality and safety of agricultural products have changed significantly over the past few decades, and people now attach more importance to whether agricultural products are green and healthy [4, 5], which has also led to the use of traditional pesticides to combat diseases. Therefore, controlling plant diseases does not rely so heavily on chemical pesticides; instead, biological pest control, rather than chemical pesticide use, is an effective measure for combating plant diseases [2, 6, 7].

Biological control refers to using microorganisms and their metabolites to inhibit the spread of pathogens [8,9,10,11,12]. The main bacteria used to control plant diseases are Bacillus. Owing to their broad-spectrum antibacterial activity and biosafety, members of the genus Bacillus are used as biological control agents in agricultural production [13, 14]. The main mechanisms responsible for the biocontrol activity include the production of a variety of antibacterial active substances during life activities, such as lipopeptide antibiotics (e.g., iturin [15], surfactin [16], and fengycin [17]) and antibacterial proteins (e.g., cellulase and chitinase) [18]. Competition and antagonism with pathogens can promote growth and induce resistance in plants [19, 20], thereby enhancing pathogen inhibition. Hence, competition and antagonism have a high potential for biocontrol and have become a research hotspot.

Bacillus is capable of producing a variety of secondary metabolites [21,22,23,24]. However, traditional techniques cannot efficiently and readily determine whether antagonistic strains can produce bacteriostatic substances. In addition, some potentially active antibacterial substances that have not yet been discovered are difficult to identify using traditional methods. However, with the development of biological information, whole-genome sequencing of bacteria has become the method of choice for its greater convenience and speed. Thus, through whole-genome sequencing analysis, bacteriostatic synthetic gene clusters [25] can be mined, significantly changing the situation. Indeed, to date, many researchers have analysed active secondary metabolites produced by Bacillus through genome sequencing [26,27,28]. In particular, studying functional antimicrobial genes and secondary metabolite gene clusters at the molecular level is important for mining microbial resources with the potential for biocontrol. Although many strains of secondary metabolite genes have been predicted to be resolved because of the large number of microorganisms, DNA content may significantly differ even among strains of the same species. Genomic analysis of strains with antagonistic activity is significant in supplementing the capacity to produce secondary metabolites [29, 30].

This study obtained Bacillus strain KC14-1, which has broad-spectrum antimicrobial activity, by screening. The classification status of this bacterium was determined based on morphological observations, physiological and biochemical analyses, and molecular biology techniques. Whole-genome component analysis, functional annotation, and analysis were performed to provide a genetic basis for further development of this bacterial strain.

Materials and methods

Antagonistic screening of biocontrol strains

Early-stage biocontrol strains KC14-1 and KC14-2 were isolated from Baiyin of Gansu Province a soil sample found in the soil interroot of unincorporated apple trees in the laboratory. Fusarium fujikuroi, Rhizoclonia solani, Alternaria solani, Fusarium Oxysporum, and Valsa mali were used as target fungi to evaluate the antagonistic effect of these biocontrol strains. Biological control strains and pathogenic fungi were stored at -20 °C in the College of Plant Protection, Gansu Agricultural University. Face-off culture was performed on potato agar medium, and the edges of the activated pathogenic fungi were formed into a 5-mm-thick fungal cake and inserted into the centre of the PDA medium. Biocontrol strains were inoculated on both sides of the pathogen at equal distances, and non-inoculated biocontrol strains were used as controls. Each treatment was triplicated, the colony diameter was measured at 25 °C for 5 d, and the antifungal rate was calculated. High-activity biocontrol strains were screened, and broad-spectrum activity was determined using the abovementioned method. Biocontrol bacteria were activated with LB medium, and pathogenic fungi were activated with PDA medium.

Classification and status of the antagonistic strains

GEN-III microtitre plates were used to determine the phenotypes of the biocontrol bacterial strains. This included 71 carbon-source utilisation tests and 23 chemical sensitivity tests. The strains were inoculated into LB medium and cultured at 37 °C for 12 h. The morphology of the strains was observed using field emission scanning electron microscope (FEI Co. LTD, Hillsboro, OR, USA).A bacterial genome extraction kit was used to extract bacterial genomic DNA using bacterial universal primers, 27 F (5′-AGTTTGATCMTGGCTCAG-3′) and R1492 (5′-GGTTACCTTGTTACGACTT-3′). Primer sequences p-gyrA-f (5′-CAGTCAGGA AATGCGTACGTCCTT-3′) and p-gyrA-r (5′-CAAGGTAATGCTCCAGGCATTGCT-3′) [31] were used for gyrA gene amplification via PCR. Similarly, PCR amplification of the gyrB gene was performed using primers up-1s (5′-GAAGTCATCATGACCGTTCTGCA-3′) and up-2 sr (5′-AGCAGGGTACGGATGTGCGAGCC-3′) [32].

The PCR reaction mixture included 9.5 µL ddH2O, upstream and downstream primers (10 µmoL/L) 1 µL, DNA template 1 µL, and 2× Rapid Taq Master Mix 12.5 µL. The PCR reaction procedure was as follows: 95 °C for 3 min; 95 °C for 15 s, 55 °C for 15 s, and 72 °C for 30 s, 30 cycles.

The PCR products were sent to Xi’an Qingke Biological Company(Xi’an, China) for sequencing. The sequencing results were BLAST-compared using National Centre for Biotechnology Information (NCBI) to filter out the sequences of highly similar strains. A phylogenetic tree was constructed using MEGA 5.0 software.

Strain whole-genome sequencing

The biocontrol bacterial strains were inoculated into an LB liquid medium at 28 °C, shaken at 180 rpm, and incubated for 24 h. The fermentation broth was centrifuged at 4 °C at 10,000 rpm for 5 min to collect the bacterial pellet. DNA was extracted and commissioned to perform whole-genome sequencing by Baseo using PacBio and Illumina. The quality of the extracted DNA was examined using Qubit (Thermo Fisher Scientific, Waltham, MA, USA) and Nanodrop (Thermo Fisher Scientific).

Genome assembly and correction

The sequencing results were assembled using Falcon software (version 0.3.0) [33] and filtered using the Illumina FASTP platform (version 0.20.0) [34]. Filtering conditions: (1) removal of reads with ≥ 10% unrecognised nucleotides (N); (2) removal of ≥ 50% of reads with bases with Phred quality score ≤ 20; (3) removal of reads targeting the barcode adapters. After filtering, the genome sequence was corrected, and the final genome sequence was determined using Pilon (version 1.23) software [35].

Prediction of genome components

Prediction of sequenced ORF genomes was performed using the NCBI database; non-coding RNA prediction was performed using rRNAmmer (version 1.2); gene island prediction was performed using IslandPath-DIMOB (version 1.0.0) in the online tool IslandViewer4; genomic CRISPR prediction was performed using the CRISPRFinder (version 4.2.17); transposon prediction was performed using TransposonPSI (version: 20100822). RepeatMasker (version 4.0.5) and TRF (version 4.09) were used to predict genomic and tandem repeats, respectively. Finally, Phage_Finder (version 2.0) was used to predict prophages [36].

Feature notes

A genosphere map of strain KC14-1 was created using CGView v2.0. Genes were annotated at NCBI by comparing non-redundant protein databases (Nr), high-quality protein annotation information databases such as SwissProt, Kyoto Encyclopaedia of Genes and Genomes (KEGG), and Gene Ontology (GO). Additionally, the Homologous Protein Cluster Database (COG) and Carbohydrate-Active EnZymes (CAZy) were used to complement the note database. Lastly, anti-SMASH (version 4.1.0) was used to predict the gene clusters of secondary metabolites [26, 37, 38].

Results

Screening of antagonistic bacterial strains

Five pathogenic fungi, namely, F. fujikuroi, R. solani, A. solani, F. oxysporum, and V. mali, were selected in the laboratory to test the antifungal activity of the biological control Bacillus strains KC14-1 and KC14-2 and the growth diameter of the pathogens on the third and seventh days, respectively. The results showed that the two bacterial strains had antifungal activity against the five fungal pathogens above; furthermore, the antifungal effect of strain KC14-1 was greater than strain KC14-2 on the third and seventh days. On the third day, strain KC14-1 showed high antagonistic activity against Valsa mali, with an inhibition rate of 65.48%. Later, on the seventh day, the inhibition rate of KC14-1 against Valsa mali reached 70%, and it had an antagonistic effect on the other four pathogens (Fig. 1; Table 1). Therefore, we believe that strain KC14-1 has broad-spectrum antifungal activity.

Fig. 1
figure 1

Broad-spectrum activity determination of the biocontrol Bacillus strains KC14-1 and KC14-2. Notes: V. mali, A; F. oxysporum, B; R. solani, C; F. fujikuroi, D; A. solani, E

Full size image
Table 1 Broad-spectrum activity determination of the biocontrol Bacillus strains KC14-1 and KC14-2
Full size table

Identification of strain KC14-1

Strain KC14-1 was cultured in darkness at 28 °C for 24 h. The colony edges were milky white, rough, opaque, irregularly wavy, and light orange in the centre. There were noticeable bumps and folds and gram-negative staining. Scanning electron microscopy revealed that the bacteria were blunt, short, rod-like, and isolated at both ends (Fig. 2).

Fig. 2
figure 2

Colony morphology and electron microscope morphology of Bacillus strain KC14-1. Note: A: Colony morphology on LB medium; B and C: Morphology of bacteria under electron microscope

Full size image

The phenotypic fingerprint of the strain was identified through physiological and biochemical tests using GEN-III microplates of a biological, microbial automatic-identification system. The colour changes during the REDOX reaction of tetrazolium dye indicated using carbon sources and sensitivity to chemical substances. The results showed that strain KC14-1 could use D-trehalose, sucrose, D-fructose, gentiobiose, D-cellobiose, and other carbon sources. Chemical susceptibility tests showed that strain KC14-1 grew normally in 8% NaCl (Table 2). Based on the Identification Manual of Common Bacteria, the strain was tentatively named Bacillus sp.

Table 2 Physiological and biochemical determination of the biocontrol strain KC14-1
Full size table

The 16 S rRNA, gyrA, and gyrB of strain KC14-1 were sequenced. The effective sequence lengths for PCR amplification were 1493, 939, and 1200 bp, respectively. The electrophoretic results for the amplified products are shown in Fig. 3. Homologous BLAST sequences were compared with those in the NCBI database. MEGA5.0 software was used to construct the phylogenetic tree of strain KC14-1 using the neighbour-joining tree method. The results showed that the 16 S rRNA sequence of KC14-1 correlated with Bacillus subtilis NFAA (MT192659.1) and Bacillus subtilis LSRBMoFPIKRGCFTRI33 (MT133340.1), clustered in the same branch. In turn, the gyrA gene sequence from KC14-1 and Bacillus subtilis SRCM100761 (CP021889.1) and the gyrB gene sequence from Bacillus subtilis BEST3145 (AP024628.1) clustered in the same branch. The phylogenetic tree constructed from the amplified gene sequences was identified as Bacillus subtilis(Fig. 4). Based on morphological observations and physiological and biochemical characteristics, 16 S rRNA, gyrA, and gyrB were identified as genes of Bacillus subtilis.

Fig. 3
figure 3

PCR amplification of gyrA, 16 S rRNA, and gyrB of B. subtilis strain KC14-1

Full size image
Fig. 4
figure 4

Phylogenetic evolutionary tree based on (A) 16 S rRNA gene, (B) gyrA gene, and (C) gyrB gene

Full size image

Whole genome-sequence analysis of Bacillus strain KC14-1

Second-generation Illumina sequencing technology, third-generation PacBio sequencing technology, third-generation sequencing data for genome assembly, and second-generation data were used to correct assembly results for the Bacillus KC14-1 strain used in the experiments described herein.

Using the NCBI database, and after splice assembly and correction of the three-generation sequencing reads with Falcon, the genome of strain KC14-1 was found to consist of a ring chromosome with a genome size of 3,908,079 bp, GC content of 43.82%, and 3895 coding genes. Total gene length was 33,544,750 bp, the longest gene was 10,764 bp, and the shortest was 78 bp, with a GC content of 44.56% (Fig. 5). The number of tRNA genes predicted by non-coding genes was 86, with an average length of 77 bp and a total length of 6646 bp. The number of rRNA genes was 30, including 5S_rRNA, 23S_rRNA, and 16S_rRNA genes, which were 10, with lengths of 1160, 29,277, and 15,500, respectively. There were 23 sRNA genes with a total length of 3050. Using the CRISPRFinder software, CRISPR projections for the genome predicted the number of genes to be 3. The CRISPR_ Lengths were 105, 107, and 112, and the predicted Repeat_ Lengths were 25, 24, and 32, respectively.

The RepeatMasker software was used to predict the scattered repeat sequences in the bacterial strain genome. Prediction results showed that the total number of short interspersed repeat sequences (SINEs) was 12, totalling 719 bp. Meanwhile, the total number of long interspersed repeat sequences (LINEs) was 25, totalling 1650 bp. The total number of long terminal repeat (LTR) sequences was 1, with a length of 66 bp. The total number of DNA transposons (DNA elements) was three, with a length of 168 bp. A total of 42 scattered repeats were predicted with a total length of 2812 bp, accounting for 0.07% of the entire genome, and one unclassified type: tandem repeat sequence distribution of clusters on the chromosomes, including microsatellite sequences, small satellites, and satellite DNA sequences. The TRF software was used to predict 67 tandem repeats in the bacterial genome, with a total length of 6050 bp, accounting for 0.15% of the total length of the genome. Strain KC14-1 was predicted to have five genes on the genome island with lengths of 17,396, 8056, 8067, 58,116, and 54,076 bp, respectively. The total length of the genomic islands on the genome island was 145,711 bp, with an average length of 29142.20 bp. Lastly, two prophages were predicted, with genome sizes of 34,777 and 23,834 bp, respectively. The predicted total prophage length was 58,611, and the average length was 29305.50.

Fig. 5
figure 5

Whole genome circle map of Bacillus subtilis KC14-1. Note: The outermost circle represents the position coordinates of the genome sequence. The figure shows the positive chain genes from the outer to the inner circle, followed by negative chain genes, ncRNA (black for tRNA, red for rRNA), GC content (red for greater than the mean, blue for less than the mean), GC SKEW, which is used to measure the relative content of G and C, and to mark the starting and end points in circular chromosomes; GC skew = (G-C)/(G + C); purple means greater than 0, orange means less than 0)

Full size image

Basic functional notes

The Nr, Swiss-Prot, GO, KEGG, and COG databases were used for gene annotation, and BLAST was used to predict the stem gene sequences. Functional databases were used to indicate the amino acid sequences of the encoded proteins. The total number of coding genes was 3895. The numbers of functionally annotated genes as per NR, Swiss-Prot, COG, and KEGG were 3873, 3733, 2926, and 3878, respectively, and the number of unannotated genes was 17 (Fig. 6).

Fig. 6
figure 6

Venn diagram for Nr-, Swiss-Prot-, KEGG- and COG-annotated genes

Full size image

The gene sequences were translated into their corresponding amino acid sequences and compared with the NR database. A total of 3873 genes were successfully annotated using the NR database. B. subtilis, Bacillus sp. CMAA 1185, Bacillus sp. LM 4 − 2, Streptococcus pneumoniae, Bacillus sp. JS, Paenibacillus polymyxa, Bacillus sp. YP1, Bacillus sp. SN32, Bacillus sp. MBGLi79, B. azotoformans, Bacillus sp. Rc4, Bacillus cereus, Bacillus sp. FJAT-14,266, Bacillus halotolerans, Bacillus sp. Ru63, Terrabacteria, B. amyloliquefaciens, Bacillus sp. SJZ110, and Bacillus sp. 79 − 23 had 3583, 89, 72, 50, 12, 8, 7, 6, 6, 5, 3, 3, 3, 3, 2, 2, 2, 2, 2, and 1 genes, respectively (Fig. 7).

Fig. 7
figure 7

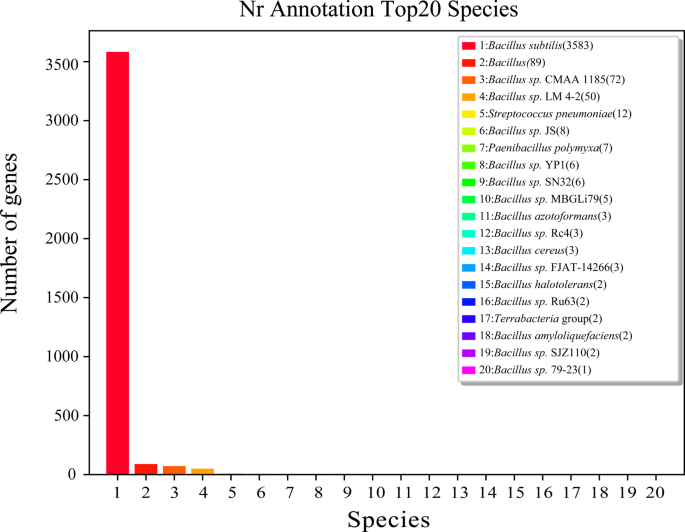

Nr-annotated genes in species of Bacillus subtilis KC14-1 strain

Full size image

Microbial production of secondary metabolites occurs through several metabolic pathways. It is important to study the metabolic pathways of secondary metabolites. Gene pathway annotation can effectively link the functional information of secondary metabolites with the metabolic pathways involved in cells, helping us obtain secondary metabolites more quickly, efficiently, and accurately. KEGG is a database that systematically analyses the metabolic pathways of gene products in cells and their functions as gene products. KEGG can be used to investigate the complex biological behaviours of genes further. Gene pathway annotation can be obtained according to the KEGG annotation information, which makes it easier to understand microbial function from the biological process of the system. DIAMOND was compared with the KEGG database to obtain annotation results corresponding to the genes. According to KEGG pathways, a total of 3878 genes were found to be enriched in 133 metabolic pathways, including mainly metabolism, genetic information processing, environmental information processing, cellular processes, and organic systems. Amino acid metabolism, 206 genes; carbohydrate metabolism, 267 genes; energy metabolism, 119 genes; metabolism of cofactors and vitamins, 157 genes; lipid metabolism, 70 genes; xenobiotic biodegradation and metabolism, 37 genes; biosynthesis of other secondary metabolites, 49 genes; nucleotide metabolism, 79 genes; metabolism of terpenoids and polyketones, 36 genes; and other ammonia genes. There were 55 genes involved in basal acid metabolism and 30 more in polysaccharide biosynthesis and metabolism (Fig. 8). Many genes regulate secondary metabolism in strain KC14-1. Therefore, the types of secondary metabolites in this strain may be abundant.

Fig. 8
figure 8

KEGG-annotated genes of Bacillus subtilis strain KC14-1

Full size image

Gene ontology (GO) and annotation for strain KC14-1 included cytological components, molecular functions, and biological pathways. The annotation results revealed 25 functional branches of biological pathways with 14,113 annotated genes, 15 branches of molecular functions with 5,739 annotated genes, and 19 functional branches of cytological components with 8,706 annotated genes. The numbers of genes related to cellular and metabolic processes were 2845 and 2612, respectively. Regarding molecular function, catalytic activity and binding-related genes were the highest, at 2262 and 1890, respectively. Meanwhile, the number of cell-related genes in the cytology component was the highest (2266) (Fig. 9). The cellular environment, possible biological processes, and molecular functions of stem gene products are described to understand their biological significance.

Fig. 9
figure 9

GO annotation and functional classification of Bacillus subtilis KC14-1

Full size image

A total of 5572 protein-coding genes were annotated in the COG database. Functional annotations were divided into 25 categories of which 22 had gene enrichment: RNA processing and modification (A), chromatin structure and kinetics (B), energy production and conversion (C), cell cycle division regulation (D), amino acid transport and metabolism (E), nucleotides transport and metabolism (F), carbohydrate transport and metabolism (G), coenzyme transport and metabolism (H), lipid transport and metabolism (I), ribosome structure translation (J), transcription (K), replication (L), cell wall or membrane or extracellular envelope biosynthesis (M), cell mitosis (N), post-translational modification (O), inorganic ion transport and metabolism (P), secondary metabolite biosynthesis (Q), general function prediction of genes (R), Function unknown (S), information transduction mechanisms (T), secretion and vesicle transport (U), and defence mechanism (V). The number of successfully annotated genes for these 22 categories were 0, 2, 192, 34, 363, 83, 285, 132, 112, 167, 307, 119, 196, 66, 103, 219, 91, 493, 319, 170, 51, and 61, respectively. Additionally, there was no gene enrichment in the following three functional pathways: extracellular structure (W), nuclear structure (Y), or cytoskeleton (Z) (Fig. 10). Further studies are needed to annotate genes with unknown functions.

Fig. 10
figure 10

COG functional classification diagram for Bacillus subtilis KC14-1

Full size image

Our results showed that six functions were identified: glycoside hydrolase (GH), glycosyltransferase (GT), polysaccharide lyase (PLs), carbohydrate esterase (CEs), auxiliary REDOX enzyme (AAs), and carbohydrate-binding modules (CBMs). The numbers of annotation genes were 216, 243, 8, 47, 2, and 99, respectively. Glycoside hydrolase (GH) and glycosyltransferase (GT) had the highest proportions among gene families. Analysis of these genes showed that the KC-14 genome contained genes encoding glucanases GH16 and CBM3, xylan-degrading enzymes GH30_8 and GH11, and peptidoglycan-degrading enzymes CBM50, GT28, CE4, and GT2, among others (Fig. 11). The gene encoding the lysozyme protein, GH23, showed that the strain could degrade dextran, xylan, and other substances.

Fig. 11
figure 11

CAZy classification diagram for Bacillus subtilis KC14-1

Full size image

Natural metabolite gene clusters are predicted on the anti-SMASH website. In this case, we found nine gene clusters in the genome of strain KC14-1 (Table 3). Secondary metabolites are mainly produced via two metabolic pathways: non-ribosomal peptide synthase (NRPS) and polyketide synthase (PKS). In turn, the gene cluster encoding the secondary metabolism of polyketide synthases is divided into three types: type I polyketide synthases (T1pks), type II polyketide synthases (T2pks), and type III polyketide synthases (T3pks). The KC14-1 genome contains four encoded PKS and NRPS gene clusters: one PKS synthase gene cluster has two gene clusters involved in terpene synthesis, a gene cluster associated with iron vector synthesis, and a gene cluster involved in active peptide synthesis. There are five gene clusters with a similarity > 90%, which can be considered to produce this secondary metabolic gene cluster, although there may be some deviations in the predicted results on the anti-SMASH website; however, the above data still show that strain KC14-1 has a huge potential to synthesise and produce a variety of secondary metabolites.

Table 3 Gene clusters encoding secondary metabolites in strain KC14-1
Full size table

Discussion

Bacillus is widely present in soils, aquatic environments, and plant bodies, with a wide variety and many closely related species [39, 40], making it difficult to determine their taxonomic status by any single method. Therefore, in this study, we jointly identified strain KC14-1 as Bacillus subtilis by morphological, physiological, and biochemical characteristics and molecular biology techniques. According to previous studies, Bacillus can promote plant growth [41], induce plant disease resistance, and secrete active substances against pathogens [37]. It is widely used in agriculture. For example, Bacillus subtilis F62 has inhibitory effects on all fungal pathogens and can reduce mycelial growth rate and decrease Botrytis sp. Incidence [42]. In particular, Bacillus amyloliquefaciens strains Trb7 and Trb1 were identified as effective bactericidal agents, effectively inhibiting Ralstonia pseudosolanacearum in tomato [43]; in another case, antagonistic bacteria, JF-4 and JF-5, were effective against banana wilt by 48.3% and 40.3%, respectively [44]. The B. subtilis strain KC14-1 consistently showed bacteriostatic activity against various pathogenic fungi, and the bacterial inhibition rate was more than 50% at day 5 compared to the control. We preliminarily believe that strain KC14-1 has the potential for biocontrol and can be further explored as a biocontrol strain.

Analysing species information at the genomic level has become an effective means of efficiently developing and using antagonistic bacterial strains, which provides an in-depth understanding of the genetic and physiological characteristics of the strains and has great significance in unravelling the underlying mechanisms of defence and their potential for the production of secondary metabolites [41, 45,46,47]. Via whole genome sequencing of strain KC14-1, we assembled and corrected a gene sequence consisting of a circular chromosome with a genome size of 3,908,079 bp, a GC content of 43.82%, and a coding gene number of 3895. The genome of strain KC14-1 was found to contain a variety of gene clusters involved in the synthesis of antimicrobial substances, including surfactin, 1-carbapen-2-em-3-carboxylic acid, fengycin, bacillibactin, pulcherriminic acid, subtilosin A, and bacilysin. The anti-SMASH website predictions showed high homology (100%) of the gene clusters for the synthesis of fengycin, bacillibactin, pulcherriminic acid, subtilosin A, and bacilysin, followed by 78% homology of the gene cluster for the synthesis of surfactin, and only 16% homology of the gene cluster for the synthesis of 1-carbapen-2-em-3-carboxylic acid, which does not exclude the possibility that strain KC14-1 can produce, as yet, unidentified secondary metabolites. Fengycin is produced by a variety of Bacillus species and inhibits pathogenic bacteria by altering the structure and permeability of pathogenic bacterial biofilms, destroying the stability and integrity of lipid membranes; it is a ferric ion chelator that chelates iron in the environment and affects the growth of pathogenic bacteria [48,49,50]. In turn, bacillibactin is formed by the cyclisation of glycine, threonine, and DHB and was first isolated from B. subtilis [51]. It is synthesised through the NRPS pathway as a high-affinity line of organisms to run iron carriers, competition, antibiosis, toxicity, and environmental remediation. It is currently believed that bacteria can inhibit pathogens owing to the ability of the ferritin to chelate iron ions in the environment, causing iron deficiency in pathogenic bacteria and nutrient deficiency leading to growth inhibition [52]. As for bacilysin, this is a dipeptide antibiotic that is active against a wide range of pathogens. Its structure is simple and has an effective mechanism of action as a pleiotropic signalling molecule, affecting cellular activity; however, not all bacilli can produce bacilysin [53]. In turn, subtilosin A is a cyclic wool sulphur-antibiotic protein [54], a genetically encoded and ribosomally synthesised polypeptide antibiotic [55] that prevents the polymerisation of monomers in the bacterial cell wall to form functional cell wall plasmids. In addition, the KC14-1 genome contained two secondary metabolite-related gene synthesis clusters with unknown functions. The inhibitory effect of this bacterium on several pathogenic fungi demonstrated by the preliminary test may be related to known bacteriostatic active substances; however, the possibility that unknown metabolites may be involved in the inhibitory process cannot be excluded.

The genome of strain KC14-1 also revealed 615 genes encoding CAZy family members involved in the production of glucanases, xylanases, peptidoglycanases, and lysozymes. This suggests that strain KC14-1 can cause the hydrolysis of the cell wall of the pathogenic fungus, thus affecting the fungus’s whole-life activity and, consequently, preventing disease damage [56,57,58,59].

Through whole genome analysis of strain KC14-1, the potential for biological control of this strain was comprehensively analysed. Secondary metabolite prediction revealed that this strain can produce a variety of antifungal active substances. Strain KC14-1 can be used for disease control by developing new fungicides and isolating its secondary active substances.

Conclusions

Bacillus subtilis strain KC14-1 showed broad-spectrum antifungal activity against various pathogenic fungi. The strain was identified as B. subtilis using morphological, physiological, biochemical, and molecular analyses. The whole genome of the strain was sequenced, assembled, and calibrated. The data showed that the genome of strain KC14-1 is composed of a ring chromosome with a genome size of 3,908,079 bp and a GC content of 43.82%. Analysis and functional annotation of the genomic components showed that the genome of strain KC14-1 contains various gene clusters encoding carbohydrate enzymes and secondary metabolites. The study of this bacterial genome is of great significance for the further development and utilisation of the strain and the study of the mechanisms responsible for the biological control it can exert for the benefit of agriculture.

Data availability

The datasets presented in this study can be found in the NCBI Sequence Database (https://www.ncbi.nlm.nih.gov/datasets/genome/GCF_030863625.1/) under accession no. PRJNA872326.
