A portable, nanopore-based genotyping platform for near real-time detection of Puccinia graminis f. sp. tritici lineages and fungicide sensitivity

BMC Genomics volume 26, Article number: 327 (2025) Cite this article

Abstract

Background

Fungal plant disease outbreaks are increasing in both scale and frequency, posing severe threats to agroecosystem stability, native biodiversity and food security. Among these, the notorious wheat stem rust fungus, Puccinia graminis f.sp. tritici (Pgt), has threatened wheat production since the earliest days of agriculture. New Pgt strains continue to emerge and quickly spread over vast distances through the airborne dispersal of asexual urediniospores, triggering extensive disease outbreaks as these exotic Pgt strains often overcome resistance in dominant crop varieties of newly affected regions. This highlights the urgent need for a point-of-care, real-time Pgt genotyping platform to facilitate early detection of emerging Pgt strains.

Results

In this study, we developed a simple amplicon-based re-sequencing platform for rapid genotyping of Pgt isolates. This system is built around a core set of 276 Pgt genes that we found are highly polymorphic between Pgt isolates and showed that the sequence of these genes alone could be used to accurately type Pgt strains to particular lineages. We also developed a simplistic DNA preparation method and an automated bioinformatic pipeline, to enable these Pgt gene markers to be sequenced and analysed rapidly using the MinION nanopore sequencing device. This approach successfully enabled the typing of Pgt strains within approximately 48 h of collecting Pgt-infected wheat samples, even in resource-limited locations in Kenya and Ethiopia. In addition, we incorporated monitoring capabilities for sequence variations in Pgt genes that encode targets of the azole and succinate dehydrogenase inhibitor fungicides, enabling real-time tracking of potential shifts in fungicide sensitivity.

Conclusion

The newly developed Pgt Mobile And Real-time, PLant disEase (MARPLE) diagnostics platform we established, now allows precise typing of individual Pgt strains while simultaneously tracking changes in fungicide sensitivity, providing an early warning system for potential indicators of changes in the Pgt population and emerging fungicide resistance. Further integration of this Pgt MARPLE diagnostics platform into national surveillance programmes will support more informed management decisions and timely responses to Pgt disease outbreaks, helping reduce the devastating crop losses currently caused by this ‘cereal killer’.

Peer Review reports

Background

Fungal phytopathogens pose a significant threat to agroecosystem stability, native biodiversity and food security. In agriculture, every year fungal pathogens destroy 10–23% of all major calorie and commodity crops, with a further 10–20% lost to fungal infection post-harvest [1]. Rapid and accurate diagnostics of disease-causing fungal agents is essential to enact appropriate control measures and limit the scale of disease outbreaks. Traditionally, this was achieved primarily through the direct observation of macro- and microscopic fungal structures [2]. However, these approaches can lack resolution and sensitivity, leading to a greater emphasis in modern times on emerging molecular detection tools. Since the first DNA-based molecular detection strategies for fungal pathogens were introduced in the late 20th century, a wide array of methods has been developed to increase the reproducibility, sensitivity and specificity of fungal disease diagnostics [3]. This includes standard polymerase chain reaction (PCR), real-time quantitative PCR, restriction fragment length polymorphism (RFLP), amplified fragment length polymorphism (AFLP), denaturing-gradient gel electrophoresis (DGGE), and DNA-fingerprinting based on microsatellite and minisatellite DNA markers, among many others [4]. Due to their simplicity, PCR-based molecular markers remain widely employed in many laboratories for precise taxonomic classification and for analysing genetic variability between fungal strains. More recently, the demand for in-field instrumentation has driven the development of portable molecular diagnostics tools, such as loop-mediated isothermal amplification (LAMP), lateral flow assay (LFA) and recombinase polymerase amplification (RPA) [5]. These in-field applications have markedly accelerated the speed of molecular disease diagnostics.

Beyond species and strain definition, molecular diagnostic tools also play a crucial role in the rapid detection and monitoring of molecular mechanisms of antifungal resistance. In susceptible crop cultivars, fungicides act as the main line of defence to inhibit or eradicate the growth of harmful fungi. However, many classes of antifungal agents are used extensively across agricultural and clinical settings, leading to a global shift of fungal populations towards more resistant species and genera (e.g [6]). This includes azoles, which are the most widely used class of antifungal agents [7]. Azoles target the cytochrome 14-α demethylase (Cyp51) enzyme that is essential for ergosterol synthesis in fungi [8]. The most common resistance mechanism involves mutations in the CYP51 coding region that can result in inadequate binding of azoles to the Cyp51 enzyme [9]. Another growing class of antifungal agents are the succinate dehydrogenase inhibitors (SDHIs), that act to inhibit mitochondrial respiration [10]. Similarly, resistance to SDHIs tends to occur via mutation, leading to amino acid substitutions in the SDHB, SDHC, and SDHD subunits of the succinate dehydrogenase complex targeted by SDHIs [10]. The rapid nature of these molecular detection techniques permits much earlier intervention, which is critical to reducing yield losses and the spread of fungal pathogens.

As the molecular disease detection toolbox continues to expand, emerging genomic-based techniques have started to radically transform the speed, resolution and reproducibility of fungal disease diagnostic strategies [11]. For instance, amplicon-based and shotgun metagenomic approaches have already proved fruitful for soilborne pathogens that are particularly problematic to diagnose, including the genera Rhizoctonia spp., Fusarium spp., Verticillium spp., which can cause 50–75% yield loss across many different crop species [12]. Genomic-based techniques are also starting to transition from the research arena into frontline point-of-care (PoC) infectious disease diagnostics, supported by exponential growth in publicly available genomic data to guide species and strain typing [11]. For instance, the portable, real-time MinION nanopore sequencer [13] is uniquely suited for PoC diagnostics, as first demonstrated for viruses using whole genome sequencing. Where deployment of the MinION sequencer helped in surveillance efforts for the Ebola virus in Guinea in 2014–2015 [14], Zika virus in Brazil in 2016 [15] and in diagnosing Cassava mosaic virus in sub-Saharan Africa in 2017–2018 [16], among others. Yet, applying similar whole-genome sequencing approaches directly to fungal pathogens, has proved challenging largely due to their vast genome sizes; typically, tens of thousands times larger than viruses [17]. This is further complicated by the obligate biotrophic lifestyle of many fungal plant pathogens, that are unable to be separated from their plant host that they depend on for survival [18]. To overcome these challenges, we previously devised a targeted re-sequencing approach that directly utilises infected plant material and focuses on PCR-amplification of a smaller subset of polymorphic pathogen genes for the wheat yellow (stripe) rust pathogen, Puccinia striiformis f. sp. tritici, Pst. When this smaller gene subset is sequenced on the MinION platform, these sequences alone are sufficient for typing individual genetic variants of Pst [19]. This new strategy, termed Mobile And Real-time PLant disEase (MARPLE) diagnostics, presents a framework for developing similar mobile, genomic-based, strain-level diagnostics strategies for other complex fungal pathogens.

In this study we focused on the causal agent of wheat stem rust (Puccinia graminis f. sp. tritici (Pgt)), which is the most damaging of the three wheat rust fungi [20]. We identified a core set of 276 Pgt genes that are highly polymorphic between Pgt strains and showed that the sequence of these genes alone could be used to accurately type Pgt strains to particular lineages. We also developed a simplistic DNA preparation method and automated bioinformatic pipeline to enable these Pgt gene markers to be sequenced using the MinION nanopore sequencing device directly in resource-limited locations. In addition, we built into this Pgt genotyping platform the ability to monitor sequence diversification in Pgt targets of the azole and SDHI fungicides. Thus, the Pgt MARPLE diagnostics platform we established can be used not only to accurately type individual Pgt strains, but also to simultaneously monitor for potential changes in fungicide sensitivity that can be used to help better guide management decisions and limit the impact of Pgt disease outbreaks.

Methods

Population genetic analysis of global Pgt isolates

A set of 165 Pgt genomic and transcriptomic datasets were gathered from public repositories (Additional file 1: Table S1 [21,22,23,24,25,26]). Each dataset was independently aligned to the Pgt reference genome (isolate CRL 75-36-700-3 [27]), using default settings and the Burrows-Wheeler Alignment (BWA), version 0.7.5 [28], or Star, version 2.5 [29] for genomic and transcriptomic datasets respectively. Following sequence alignment, each of the 165 Pgt transcriptomic datasets were trimmed at splice junctions using the SplitNCigarReads tool in the Genome Analysis Toolkit (GATK), version 4.0 [30]. Single nucleotide polymorphisms (SNPs) were identified using SAMtools version 0.1.19 [28] and those meeting a minimum depth of coverage (10x for genomic DNA and 20x for RNA-seq) were identified and used for downstream analysis as described previously [31]. Datasets were assessed to ensure a distribution of read counts for biallelic SNPs of 0.5 and at least 15% of gene sequences present using custom Python scripts [32]. The 86 datasets fulfilling these requirements were used for sequence alignments of the gene-coding regions of all genes with at least 60% breadth of coverage in at least 60% of the 86 samples (Additional file 1: Table S2). Phylogenetic trees were generated using an approximate maximum likelihood approach using FastTree version 2.1.9 [33] and visualised in iTol version 6 [34]. Subdivisions in the Pgt population were assessed by multivariate discriminant analysis of principal components (DAPC) implemented in the adegenet 2.1.1 package in the R environment [35]. A total of 19,250 biallelic SNP sites that introduced a synonymous change in at least one isolate were used in the analysis, with the optimum number of clusters determined using the Bayesian information criterion (BIC).

Evaluation of Pst gene amplification

A detailed evaluation on the established Pst polymorphic gene set was conducted to determine characteristics that could inform Pgt marker gene selection. To this aim, a collection of datasets generated from 18 Pst-infected wheat samples that were produced using the established Pst MARPLE diagnostics methodology [19] were selected for analysis. This included 10 previously published datasets that were generated from amplification of the 242 highly polymorphic Pst genes [19] and 8 newly generated datasets resulting from amplification of an expanded set of 384 polymorphic Pst genes [36] (Additional file 1: Table S3). Each dataset was analysed using an automated MARPLE diagnostics pipeline [36] that included: (i) alignment to the Pst reference gene sets (isolate PST-104E [37]) with BWA version 0.7.5 [28] (ii) variant calling using SAMtools version 0.1.19 [38], (iii) generation of consensus gene sequences as described previously [31], (iv) sequence alignment, and (v) phylogenetic analysis using the GTRGAMMA model in RAxML version 8.2.12 [39]. Sequence alignments for each Pst sample were interrogated to determine the number of genes with at least 10% breadth of coverage, that were then classified as successfully amplified. Association between successful gene amplification and gene length were examined using custom Python and R scripts [32].

Pgt marker gene selection

A total of 1,611 Pgt genes of 1–2 Kb in length and harbouring > 0.025 SNPs/base across the 86 Pgt isolates were selected from the Pgt reference genome for analysis (CRL 75-36-700-3 [27]) (Additional file 1: Table S4). Consensus gene sequences were generated for each of the 86 global Pgt isolates by independently incorporating sequence variation for each Pgt isolate into the 1,611 Pgt genes as described previously [31]. Genes were extracted from this 1,611 gene set, that fulfilled the threshold of 0.10 to 0.19 SNPs/bp at 0.005 increments across all 86 Pgt isolates. In addition, for each SNPs/bp threshold six subsets of genes were randomly generated using a selection probability that was length-dependent and determined using:

$$P\left( {chosen} \right) = 0.2 - \frac{{0.6 \times \:\left( {L - 1500} \right)}}{{1000}};{\rm{ }}L \ge 1kb$$

After estimating the selection probability per gene, six gene subsets were randomly chosen that each comprised of approximately 60% of the total gene number at each SNPs/bp threshold. The consensus gene sequences of the seven gene lists per SNPs/bp threshold were then used to generate phylogenetic trees or cladograms using an approximate maximum likelihood approach with FastTree version 2.1.9 [33]. To assess bipartitions of Pgt isolates at each SNPs/bp threshold the Robinson-Foulds metric was used [40]. This analysis enables an assessment of deviations in the distance between tree branches and was implemented using the TreeCMP software [41] with the RF distances halved [RF(0.5)] to determine changes in relation to the reference phylogeny.

Primer design and pooling strategy

Primers were designed for amplification of the 392 initial Pgt marker genes using Primer3 software [42] returning 10,000 primer pairs between 15–30 base length, with an optimum annealing temperature of 60 oC. Primer annealing sites were assessed within 500 bases of the 5’ and 3’ ends of the gene coding region, with primers iteratively tested for specificity starting with those closest to the coding sequence, ensuring amplification of the entire gene while minimising redundant bases from the 500 bp padding regions. Primer pairs were further assessed to prevent non-specific amplification in the plant host (IWGSC RefSeq v2.1 [43]) and for conservation across a genetically diverse array of Pgt isolates: CRL 75-36-700-3 [27], 99KS76A [44], 21 − 0, Ug99 [21] and UK-01 [23]. A custom Python script was used to identify and discard primer pairs with less than 3 mismatches with the plant host genome or more than 3 mismatches with any of the five Pgt reference genomes [32]. Following these criteria, a total of 276 primer pairs were successfully designed and allocated to four discrete primer pools using PrimerPooler v1.88 [45], which uses a ΔG cut-off of -7 kJ for prevention of dimer formation between primers in each pool.

Annotation of the 276 Pgt marker genes

The selected 276 Pgt gene sequences were extracted from the Pgt reference gene set (CRL 75-36-700-3 [27]) and chromosome locations determined in the chromosome-level Pgt reference genome (isolate RKQCC [22]) through BLAST sequence similarity searches, with ≥ 95% match and > 1,000 bit-score [32]. Gene ontology (GO) term enrichment analysis was performed using GOATOOLS version 1.4.12 [46] with the GO-basic ontology, considering second-level terms and above, and a p-value cutoff for overrepresentation of < 0.05. Protein sequences of the 276 Pgt genes were assessed for secretion signals using SignalP3 and default settings [47]. Transmembrane domain containing proteins and proteins with mitochondrial signal peptides were removed using TMHMM and TargetP, respectively. The remaining 39 predicted secreted Pgt proteins were analysed using EffectorP 3.0 to identify potential cytoplasmic or apoplastic effectors [48].

Analysis of Pgt-infected field samples collected in Kenya and Ethiopia

Pgt-infected wheat leaf samples were collected in Tipis (Central rift region), Timau (Mt. Kenya region), Mau Narok (Central rift region) and Kithithina (Mt. Kenya region) in Kenya, and Alkaso, Meti, Waro Kolobo, Buyo Kecheme and Ambo in Ethiopia, and stored in RNAlater® to preserve nucleic acid integrity (Additional file 1: Table S5). Approximately 10–20 mg of leaf tissue was disrupted in 200 µL of lysis buffer [0.1 M Tris-HCl pH 7.5, 0.05 M ethylenediaminetetraacetic acid (EDTA) pH 8 and 1.25% sodium dodecyl sulphate (SDS)] using a micropestle. After settling at room temperature, 150 µL of supernatant was extracted, mixed with 360 µL of binding buffer PB (Qiagen, Manchester, UK) and DNA purified from solution using 30 µL of SeraSil-Mag™ 400 magnetic beads (Cytiva, Washington, USA). Following incubation for approximately 5 m on a magnetic rack, the clear supernatant was discarded and remaining pellet washed twice with 80% ethanol. DNA was recovered using 30 µL of elution buffer EB (Qiagen, Manchester, UK). The 276 polymorphic Pgt genes were amplified from each sample using multiplex PCR with the four primer pools and AmpliTaq Gold™ 360 Master Mix (Applied Biosystems, Massachusetts, USA). PCR conditions used were 95 oC for 10 m, 40 cycles of 95 oC for 15 s, 60 oC for 30 s, and 72 oC for 3 m, and a final extension at 72 oC for 7 m. Resulting PCR products were purified using SeraSil-Mag™ 400 magnetic beads (Cytiva, Washington, USA) as above. PCR amplicons were prepared for nanopore sequencing on the MinION device using the library preparation kit SQK-RBK114.24 (Oxford Nanopore Technologies, Oxford, UK), following the manufacturer’s instructions. Samples were barcoded and sequenced on the MinION Mk1B using Flow Cells FLO-MIN114 R10.4.1 (Oxford Nanopore Technologies, Oxford, UK) until at least 250 million reads were generated per sample. Resulting datasets were basecalled using the MinKNOW software (Oxford Nanopore Technologies, Oxford, UK).

Bioinformatic analysis was implemented using a custom Snakemake [49] workflow [36]. This makes use of: (i) FastQC version 0.12.1 and Nanoq version 0.10 [50] for quality control and filtering of the nanopore reads, (ii) BWA version 0.7.18 [28] for sequence alignment, (iii) gffread version 0.12.7 [51] to identify gene locations in the reference genome annotations, (iv) SAMtools version 1.20 [28] for read-mapping statistics, indexing the reference genomes and generating pileup information, and (v) FastTree version 2.1.11 [33] for generation of phylogenetic trees. MultiQC version 1.23 [52] was incorporated into the Snakemake workflow to generate reports per sample that includes read quality and mapping statistics. All sequencing and bioinformatic analysis were performed locally on a 16’ PCSpecialist RECOIL® laptop (16-Thread Intel i7-11800; NVIDIA GeForce RTX 3080 Max-Q; Wakefield, UK).

Integration of fungicide target genes into the Pgt MARPLE diagnostics platform

Fungicide target genes (Cyp51, SdhA, SdhB, SdhC and SdhD) were extracted from the annotated Pgt reference genome (isolate Pgt21-0 [21]). To identify conserved regions suitable for primer design, BLAST sequence similarity searches were conducted to identify the genes in the four additional Pgt reference genomes: CRL 75-36-700-3 [27], 99KS76A [44], Ug99 [21], UK-01 [23]. Primers were designed using Primer3 software [42], with an optimum annealing temperature of 60 oC. To generate DNA for initial testing of the PCR primers, Pgt infection assays were conducted. Three Pgt isolates (UK-01, UK-03 and UK-13) were used for inoculation of the hexaploid wheat (Triticum aestivum L.) varieties Siskin or Vuka, following methods described previously [53]. DNA was extracted from Pgt-infected leaf samples and each primer pair assessed using PCR conditions identical to those used to amplify the 276 polymorphic Pgt gene set. Subsequently, primers were incorporated into each of the four MARPLE gene pools and amplification of the five fungicide target genes assessed by PCR using DNA extracted from wheat varieties Siskin or Vuka infected with Pgt isolates UK-03 or UK-13.

Non-synonymous mutations reported to impact fungicide sensitivity in other fungal plant pathogens were identified through literature searches for Zymoseptoria tritici, Blumeria graminis f. sp. tritici, Puccinia triticina, Pyrenophora teres, and Phakopsora pachyrhizi (Additional file 1: Table S6) [54]. Amino acid sequence alignments were conducted with Pgt and the aforementioned pathogens for Cyp51 and the three SDH complex subunits (SdhB, SdhC and SdhD) that tend to harbour mutations linked to fungicide resistance [10] using CLUSTAL W version 2.1 [55]. Custom Python scripts were developed to (i) highlight any analogous non-synonymous mutations in Pgt Cyp51, SdhB, SdhC and SdhD and (ii) search for any novel mutations across the five Pgt reference genomes (CRL 75-36-700-3 [27], 99KS76A [44], 21 − 0, Ug99 [21] and UK-01 [23]). The scripts were developed to also account for variation between haplotypes for each fungicide target gene within the Pgt reference isolate 21 − 0 (Additional file 1: Table S7). Python scripts were incorporated into the Snakemake workflow in the Pgt MARPLE diagnostics pipeline [36].

Results

Global Pgt isolates are highly diverse and group into 12 distinct genetic groups

To assess the genetic variation across available Pgt genomic and transcriptomic datasets we gathered a collection of 165 global Pgt datasets for analysis (Fig. 1a). These included datasets derived from Pgt isolates collected across 25 countries from 1926 to 2016 [21,22,23,24,25,26] (Additional file 1: Table S1). Following quality filtering, each dataset was aligned to the Pgt reference genome (CRL 75-36-700-3 [27]) with an average of 81.4% (S.D. ±11.4%) of reads from genomic datasets and 70.2% (S.D. ±21.2%) reads from transcriptomic datasets aligned (Additional file 1: Table S2). To ensure each dataset originated from a single Pgt genotype we determined the distribution of read counts for biallelic single nucleotide polymorphisms (SNPs); as Pgt is a dikaryon it is expected that SNPs will have a single mode at 0.5 in heterokaryotic positions. This analysis highlighted 15 Pgt datasets with modes deviating from the normal distribution at 0.5 that were removed from subsequent analyses (Additional file 1: Table S1 and Additional file 2: Fig. S1). We also removed an additional set of 46 Pgt datasets that lacked coverage for an average of 13,909 genes (S.D. ±2,344 genes) out of a total of 16,309 predicted genes in the Pgt reference genome (CRL 75-36-700-3 [27]) (Additional file 3: Fig. S2).

Fig. 1
figure 1

Pgt isolates collected across 25 countries are highly diverse, grouping into 12 distinct genetic groups. (A) Genomic and transcriptomic data were collated from 165 Pgt samples that were collected across 25 countries, with the largest number of Pgt samples originating from North America and Australia. (B) A subset of 86 global Pgt isolates underwent multivariate discriminant analysis of principal components (DAPC), identifying 12 distinct genetic groups (labelled A-L). For this analysis, 19,250 biallelic single nucleotide polymorphism (SNP) sites were utilised. Initial DAPC analysis based on assessment of the Bayesian Information Criterion (BIC) separated the Pgt isolates into five major genetic clusters (1st). However, the high diversity of the global Pgt population limited resolution within groups with high within-group variation. A second DAPC analysis was thus performed on population groups with > 10 Pgt isolates (2nd) to improve clustering resolution. (C) The global Pgt population analysed consisted of 12 genetically distinct groups. Phylogenetic relationships were inferred using an approximate maximum-likelihood model based on 86 genomic or transcriptomic Pgt datasets, along with two Puccinia graminis f. sp. avenae (Pga) genomic datasets used as an outgroup. Scale bar indicates the mean number of nucleotide substitutions per site

Full size image

To assess the genetic similarity between the remaining 86 Pgt isolates we conducted phylogenetic analysis and multivariate discriminant analysis of principal components (DAPC), with two Puccinia graminis f. sp. avenae (Pga) isolates included in the phylogeny as outliers (Fig. 1b-c; Additional file 1: Table S1). In the DAPC analysis, a range of k-values from 3 to 15 were analysed (Additional file 4: Fig S3a), with assessment of the Bayesian Information Criterion (BIC) indicating k = 5 as the optimum clustering solution, based on the lowest associated BIC value (Fig. 1b; Additional file 4: Fig. S3b). However, we previously noted that when analysing large, highly diverse rust pathogen populations using DAPC analysis, two iterations of DAPC were required; the first to resolve populations with high levels of genetic differentiation and the second to resolve lower levels of within-group variation present in the initial higher-level population clusters [19]. Following this strategy, we conducted a second round of DAPC analysis on three of the initial population clusters that had more than 10 Pgt individuals to further investigate any additional within-group genetic substructure. Assessment of the BIC values and cross-comparison with the phylogenetic analysis highlighted that the 3 initial population clusters could be further subdivided (Fig. 1b; Additional file 4: Fig. S3c); clusters 1 and 2 were subdivided into 3 further groups, and cluster 3 into 4 groups.

In the phylogeny, all Pgt isolates were separated between two major clades as reported previously [56], with further subdivisions coinciding with the 12 distinct global Pgt population clusters designated as genetic groups A – L (Fig. 1b-c). Pgt isolates also clustered largely based on year of emergence, with apparent examples of strain resurgence in modern times (Fig. 1c; Additional file 1: Table S1). For instance, genetic group K is mostly populated with Pgt isolates from 1980 to 1987, with two additional Pgt isolates collected in 2009 and 2015. We also noted that only two of the genetic groups (C and L) contained Pgt isolates collected in a single continent, with the largest group (C, 15 Pgt isolates) containing isolates collected across Africa in Ethiopia, Uganda, South Africa, Kenya, Eritrea, Tanzania and Ethiopia between 1972 and 2014 [21, 22]. This included Pgt isolates from the Pgt Ug99 race group [21]. The remaining 9 genetic groups contained Pgt isolates that were collected across continental boundaries, with the largest of these genetic groups (A, 18 Pgt isolates) including Pgt isolates collected over a 60-year period from 1954 to 2014 in Australia, Czechia, South Africa, Ethiopia and Kenya. The earliest Pgt isolates included in the analysis were contained in genetic group D, that contained Pgt isolates from Australia, USA and Zimbabwe, collected from 1926 (Australia Pgt isolate 126–6711) to 2006 (USA Pgt isolate 06ND76C). Overall, this analysis indicates that this collection of global Pgt isolates is highly diverse, with genetically related Pgt isolates also highly geographically dispersed.

A subset of highly polymorphic genes can be used to define Pgt lineages

To reduce the amount of data generated per Pgt isolate, and thereby make it suited for amplicon-based sequencing on the MinION nanopore sequencing device, we set out to identify a subset of highly polymorphic Pgt genes that could be used to distinguish Pgt lineages in the phylogeny. A similar approach had been used previously to select a subset of polymorphic Pst genes suitable for amplicon-based nanopore sequencing [19] that were subsequently expanded [36]. Thus, we decided to conduct an evaluation on the established Pst polymorphic gene set to determine if any information could be gained to better guide Pgt gene selection. We examined 18 amplicon datasets generated from two available Pst marker gene sets: (i) 10 from the original 242 Pst marker genes [19], and (ii) 8 from an expanded and updated set of 384 Pst marker genes [36]. We found that on average 36% (S.D. ±12.0%) of Pst genes lacked coverage in the MinION datasets generated (Fig. 2a; Additional file 1: Table S3). In addition, we noted that Pst genes of > 2 kb in length were underrepresented in datasets following MinION sequencing (Fig. 2a). This indicates that a minimum of 40% redundancy and maximum gene length of 2 kb would be advantageous to consider when selecting genes for inclusion in the Pgt marker gene set.

Fig. 2
figure 2

A subset of 276 Pgt genes, ranging from 1 to 2 Kb in length and exhibiting 0.125–0.130 SNPs/bp, can be used to accurately define Pgt lineages. (A) Data obtained from amplicon re-sequencing of Puccinia striiformis f. sp. tritici (Pst) genes revealed an average amplification success rate of over 60%, which decreased inversely with gene length. A total of 18 Pst amplicon datasets were evaluated from two available Pst marker gene sets: (i) 10 from the original set of 242 Pst marker genes [19], and (ii) 8 from an expanded and updated set of 384 Pst marker genes [36]. Purple line and shading indicates mean percentage and standard deviation of the gene amplified. (B) Analyses was conducted on the number of genes, length of genes and coding sequences (CDS) and number of CDS variants for Pgt genes at varying SNPs/bp thresholds. A total of 1,611 Pgt genes, ranging from 1 and 2 kb in length and exhibiting a minimum of 0.025 SNPs/bp variation between the 86 Pgt isolates, were selected for comparative analysis. Additionally, six subsets (Subsets 1–6) comprising of genes with a 60% mean probability of being included for each SNPs/bp threshold per Pgt isolate were randomly chosen and analysed to account for the potential 40% failure rate in amplification and/or sequencing observed in the Pst analysis. (C) Assessment of the Robinson-Foulds (RF) distance for comparing diversity between phylogenetic trees, indicated the lowest RF value ranged from 0.12 to 0.13 SNPs/bp. RF distance analysis was performed between the phylogenetic tree including 100% of the genes and the six trees with gene subsets at each SNP/bp threshold. The smallest difference was observed in the 0.125–0.130 SNPs/bp sets, which included 392 genes, of which 276 were successfully amplified (referred to as “genes selected”)

Full size image

To identify subsets of highly polymorphic Pgt genes that could be used to define Pgt isolates into the lineages in the phylogeny, we selected a total of 1,611 Pgt genes that were between 1 and 2 kb in length and had a minimum of 0.025 SNPs/bp variation between the 86 Pgt isolates, for comparative analysis (Additional file 1: Table S4). For each of the 86 global Pgt isolates we generated consensus gene sequences by independently incorporating sequence variation for each Pgt isolate into the 1,611 Pgt genes. We selected subsets of genes from the 1,611 genes with an average minimum of 0.10 to 0.19 SNPs/bp at 0.005 increments across all 86 Pgt isolates, which represented 767 to 90 polymorphic genes (Fig. 2b). We also randomly selected subsets of approximately 60% of genes at each SNPs/bp threshold per Pgt isolate to account for the potential for a 40% failure rate in amplification and/or sequencing as observed with Pst (Fig. 2b). Phylogenetic trees were generated using these gene subsets and compared to phylogenies generated using the full gene set at each SNPs/bp threshold (Additional file 5: Fig. S4). To assess deviation between phylogenies generated using the gene subsets and full gene sets we analysed the bipartitions of the branches separating the Pgt isolates using the Robinson-Foulds (RF) distance [40]. This analysis indicated that the lowest RF value was between 0.12 and 0.13 SNPs/bp, resulting in selection of 392 highly polymorphic Pgt genes (Fig. 2c).

Sequences of 276 highly polymorphic Pgt genes are sufficient for distinguishing Pgt lineages

To generate amplicons for re-sequencing on the MinION platform, we set out to design primers for amplification of the 392 highly polymorphic Pgt genes (Fig. 3a). Primer sequences were assessed in silico for sequence conservation across a series of genetically diverse Pgt isolates where genome assemblies are publicly available. This included: (i) Pgt isolate CRL-75-36-700-3 that was used as the reference genome and was collected in Pennsylvania (USA) in 1975 (pathotype SCCL [27]), (ii) Pgt isolate 21–0 that originated from Australia [21]), (iii) Pgt isolate UK-01 that was collected in the UK in 2013 (pathotype TKTTF [23]), (iii) Pgt isolate 99KS76A-1 collected in Kansas (USA) in 1999 (pathotype RKQQC [44]), and (v) a Pgt isolate belonging to the Ug99 race group collected in Uganda in 1999 (pathotype TTKSK [21]). To also evaluate the potential for non-specific amplification of host plant DNA, primer specificity was checked against the Chinese Spring wheat genome (IWGSC RefSeq v2.1 [43]). This led to robust primers being successfully designed for a total of 276 highly polymorphic Pgt genes (Additional file 1: Table S8). The resulting 276 Pgt gene set was then used to reconstruct the Pgt phylogeny, including RF analysis at a 40% potential failure rate (Figs. 2c and 3b). These results confirmed that 276 highly polymorphic Pgt genes were sufficient to reconstruct the topology of the full Pgt phylogeny, even when only approximately 60% of gene sequences are included.

Fig. 3
figure 3

A collection of 276 highly polymorphic Pgt genes is sufficient to accurately reconstruct the phylogeny generated using the complete set of 1,611 polymorphic Pgt genes. (A) Primers were successfully designed for 276 highly polymorphic Pgt genes for use in the Pgt MARPLE diagnostics platform. Starting with an initial pool of 1,611 Pgt genes (ranging from 1 to 2 kb in length, with a minimum of 0.025 SNPs/bp), a set of 392 highly polymorphic Pgt genes was selected and assessed for conservation across Pgt isolates and specificity, resulting in successfully designed primers for 276 of these Pgt genes. (B) The topology of the Pgt phylogeny was consistent whether constructed using the initial 1,611 Pgt genes, the 276 highly polymorphic Pgt genes, or a subset that accounted for a potential 40% failure rate in amplification and/or sequencing. Cladograms were generated using 86 Pgt isolates and an approximate maximum-likelihood model

Full size image

The selected 276 Pgt genes are evenly distributed in the Pgt genome and largely encode proteins with unknown function

To assess the distribution of the 276 highly polymorphic genes across the Pgt genome, we examined their physical location in the available ~ 180 Mb chromosome-level haplotype resolved Pgt reference genome (isolate RKQCC [22]). This analysis indicated that the 276 Pgt genes were distributed across all 36 chromosomes, with an average of 7 genes per chromosome (Fig. 4a). We identified 9 genes that had > 99% identity and a bit-score > 1,000, in their matching haplotype chromosomes (E and F) and one gene that appeared in two unrelated haplotype chromosomes (chromosomes 9E and 4 F), potentially indicating a recent gene duplication (Fig. 4a). The largest number of genes (20 genes) were found on the largest 6.64 Mb chromosome (number 1). Chromosome 11 harboured genes with the highest level of overall diversity between Pgt isolates, exhibiting an average of 0.21 SNPs/bp (S.D. ± 0.075 SNPs/bp). Overall, this analysis indicates that the selected 276 polymorphic Pgt marker genes are well distributed across the Pgt genome.

Fig. 4
figure 4

Annotation of 276 highly polymorphic Pgt genes showed uniform distribution across the Pgt genome, with proteins primarily enriched for hydrolase activity and few predicted effector proteins. (A) The selected 276 Pgt genes were distributed across all chromosomes (indicated by pink marks in the outer panel), showing no clustering based on average SNP/bp content for each gene (as represented in the inner colour-scaled panel). The physical location of the 276 highly polymorphic genes was examined across the ~ 180 Mb chromosome-level haplotype resolved Pgt reference genome (isolate RKQCC [22]). Lines connecting the chromosomes indicate locations of gene variants; E and F, haplotype chromosomes. (B) Gene Ontology (GO) enrichment analysis of the corresponding 276 predicted proteins indicated significant enrichment for hydrolase activity (GO:0016787) among the 89 annotated proteins. (C) Among the 276 Pgt genes, 39 encoded predicted secreted proteins, including one predicted to act as an apoplastic effector protein and nine as cytoplasmic effector proteins, with one of the putative cytoplasmic effectors predicted as dual localised. Protein sequences of the 276 Pgt genes were assessed for secretion signals using SignalP3 and default settings [47], with transmembrane domain containing proteins and proteins with mitochondrial signal peptides removed using TMHMM and TargetP, respectively. The 39 putative secreted Pgt proteins were analysed for predicted localisation using EffectorP 3.0 [48]

Full size image

To assess the biological processes associated with the selected 276 Pgt genes, we assigned gene ontology (GO) terms to each corresponding protein. A total of 89 of the corresponding proteins could be annotated with second-level GO terms, that included nine molecular functions (GO:0003824, GO:0140657, GO:0005488, GO:0003774, GO:0060090, GO:0098772, GO:0005198, GO:0140110 and GO:0005215), two cellular functions (GO:0110165 and GO:0032991), and six biological processes (GO:0065007, GO:0009987, GO:0098754, GO:0051179, GO0008152 and GO:0050896) (Additional file 6: Fig. S5 and Additional file 1: Table S9). We also compared GO terms assigned to the 276 Pgt proteins and the remaining Pgt proteome, which highlighted a high level of enrichment in GO:0016787 (hydrolase activity) (p-value > 0.05) (Fig. 4b) [46]. We noted that 68% of the 276 Pgt genes encoded proteins with unknown function, which is a common feature of pathogen effector proteins that typically lack sequence similarity to known proteins [57]. To explore if any of the 276 Pgt marker genes could encode putative effector proteins, we examined each protein for a predicted secretion signal (Additional file 1: Table S10). This analysis identified 39 predicted secreted proteins, with 28% (11 out of 39) of these proteins predicted to harbour hydrolase activity. We then used machine learning to determine if any of these 39 secreted proteins were predicted as putative cytoplasmic or apoplastic effectors [48], finding one protein predicted to function as an apoplastic effector protein and nine as cytoplasmic effector proteins, with one of the putative cytoplasmic effectors predicted as dual localised (Fig. 4c). Overall, this indicates that very few of the 276 highly polymorphic genes selected as markers encode proteins with a currently identifiable predicted function.

MARPLE diagnostics can be used to rapidly assign Pgt-infected samples to known Pgt race groups in Kenya and Ethiopia

To determine whether the 276 highly polymorphic Pgt marker genes are sufficient for genotyping unknown Pgt field samples in resource-limited locations we conducted a pilot study to assess the markers on Pgt-infected wheat samples collected in Kenya (5 samples) and Ethiopia (7 samples) (Additional file 1: Table S5). First, to generate an appropriate set of reference Pgt isolates for typing unknown Pgt isolates, we expanded our initial collection of 86 Pgt isolates to include publicly available datasets from an additional 16 Pgt isolates that had previously been typed to 9 major Pgt race groups, termed Clades I, II, III, IV, VI-A, VI-B, VI-C, VII, IX (Additional file 1: Table S11) [22]. Pgt-infected wheat samples were collected from fields in Kenya and Ethiopia in the 2022-23 wheat season and DNA extracted using a simple magnetic-bead-based extraction and purification method suited for use in resource-limited regions. Primers to amplify the 276 Pgt marker genes were then assembled into 4 pools to considerably reduce the number of PCR reactions required (Additional file 1: Table S8). Following PCR on a simple miniPCR machine, the resulting amplicons were purified and prepared for nanopore sequencing. Following basecalling, resulting datasets were analysed locally using a custom Snakemake data analysis workflow that includes extensive parallelisation [36] (Fig. 5). Implementation of this automated workflow resulted in MultiQC quality reports and phylogenetic trees being generated in less than 30 min in Kenya and Ethiopia, compared to approximately 20 h for the previous Pst MARPLE workflow [19].

Fig. 5
figure 5

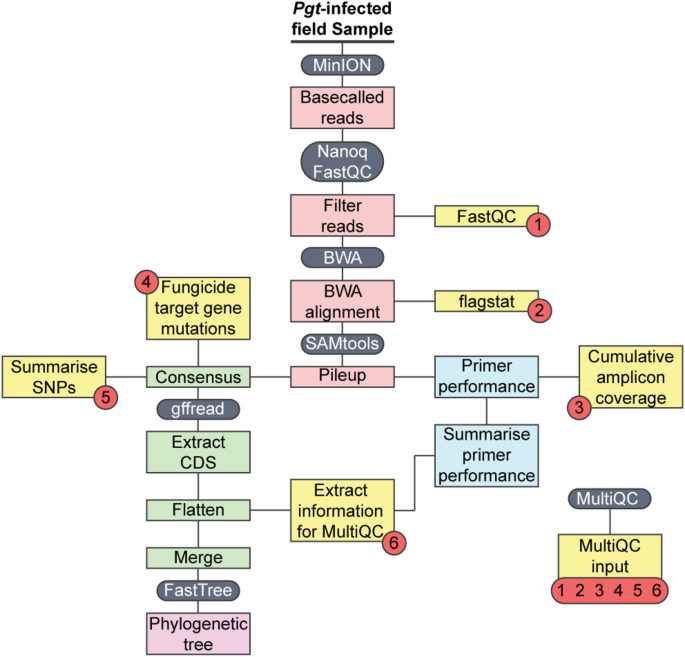

Overview of the Pgt MARPLE diagnostics bioinformatics Snakemake workflow. A schematic of the Snakemake workflow developed for the Pgt MARPLE diagnostics platform, which produces two primary outputs: (i) a phylogenetic tree and (ii) a MultiQC report. Red circles, numbered sources indicating data incorporated into the MultiQC report

Full size image

To determine the efficiency of gene amplification for each Pgt field sample, we investigated the results within the inbuilt MultiQC report. This analysis indicated that all Pgt-infected samples surpassed the minimum 60% threshold of genes amplified and demonstrated a well-distributed amplification of genes across each primer pool: average amplification of genes in pool 1 80% (S.D. 8%), pool 2 81% (S.D. 6%), pool 3 76% (S.D. 8%) and pool 4 74% (S.D. 8%) (Additional file 7: Fig. S6). Phylogenetic analysis to compare the unknown Pgt-infected field samples to known Pgt representative isolates, confirmed all unknown Pgt samples belonged to race groups previously recognised as present East Africa (Fig. 6). For instance, Pgt samples collected in Kenya grouped in the phylogeny with Pgt isolates previously assigned to “Clade I”, which contains the Ug99 race group that is known to be the dominant race group in the region [21]. Overall, this analysis confirmed that the 276 highly polymorphic Pgt marker genes were sufficient for accurately genotyping unknown Pgt samples and that the MARPLE diagnostics pipeline could be successfully executed in resource-limited regions.

Fig. 6
figure 6

Genetic analysis of Pgt-infected field samples from Kenya and Ethiopia demonstrated close genetic relationships with Pgt representative isolates previously identified in East Africa. The Pgt MARPLE diagnostics platform was applied to Pgt-infected field samples in Kenya (5 samples) and Ethiopia (7 samples) to generate sequence data for the selected 276 highly polymorphic Pgt genes. The cladogram depicts evolutionary relationships inferred using an approximate maximum-likelihood model based on 102 genomic or transcriptomic Pgt datasets, which included 16 previously typed Pgt representative isolates classified into 9 major Pgt race groups, along with the 12 Pgt samples from Kenya and Ethiopia

Full size image

Incorporating fungicide target genes into the Pgt MARPLE diagnostics platform

To expand the utility of the Pgt MARPLE diagnostics platform during disease emergencies we decided to include the ability to rapidly identify mutations in known fungicide target genes that could be indicative of decreases in fungicide sensitivity. Orthologous sequences for Cyp51, SdhA, SdhB, SdhC and SdhD were extracted from the Pgt reference genome (isolate 21 − 0 [21]; Additional file 1: Table S7). As above, in silico analysis was conducted to design primers in regions conserved across the five Pgt reference genomes (CRL 75-36-700-3 [27], 99KS76A [44], 21 − 0, Ug99 [21], and UK-01 [23]), which were also not predicted to amplify in the wheat reference genome (IWGSC RefSeq v2.1 [43]). PCR reactions were conducted on DNA extracted from wheat infected with three Pgt isolates (UK-01, UK-03 and UK-13), confirming that the five primer pairs could successfully amplify all five target genes (Additional file 8: Fig. S7). To incorporate the primers into the Pgt MARPLE diagnostics system, all primer pairs were initially integrated into primer pool 3 for analysis. The efficiency of gene amplification was assessed using DNA extracted from wheat material infected with Pgt isolates UK-03 and UK-13. Following gene sequencing, the average breadth of coverage was determined for each of the five genes with Cyp51 (100%, S.D. 0%), SdhB (100%, S.D. 0%) and SdhD (99%, S.D. 1%) achieving near-complete coverage (Fig. 7a). However, SdhA and SdhC had much lower breadths of coverage, 20% (S.D. 20%) and 46% (S.D. 45%), respectively. Therefore, we decided to assess the efficiency of the SdhA and SdhC primer pairs in each of the remaining 3 primer pools, independently and in combination. This analysis indicated that near-complete breadth of coverage could be achieved when the SdhA primer pair was incorporated singly into pool 1 (98%, S.D. 0%) and primers for SdhC in pools 1, 2 or 4 (singly 100%, S.D. 0% for each pool) (Fig. 7a). Thus, primers for amplification of SdhA were incorporated into primer pool 1, Cyp51, SdhB and SdhD into pool 3 and SdhC into pool 4 within the Pgt MARPLE diagnostics system (Additional file 1: Table S8).

Fig. 7
figure 7

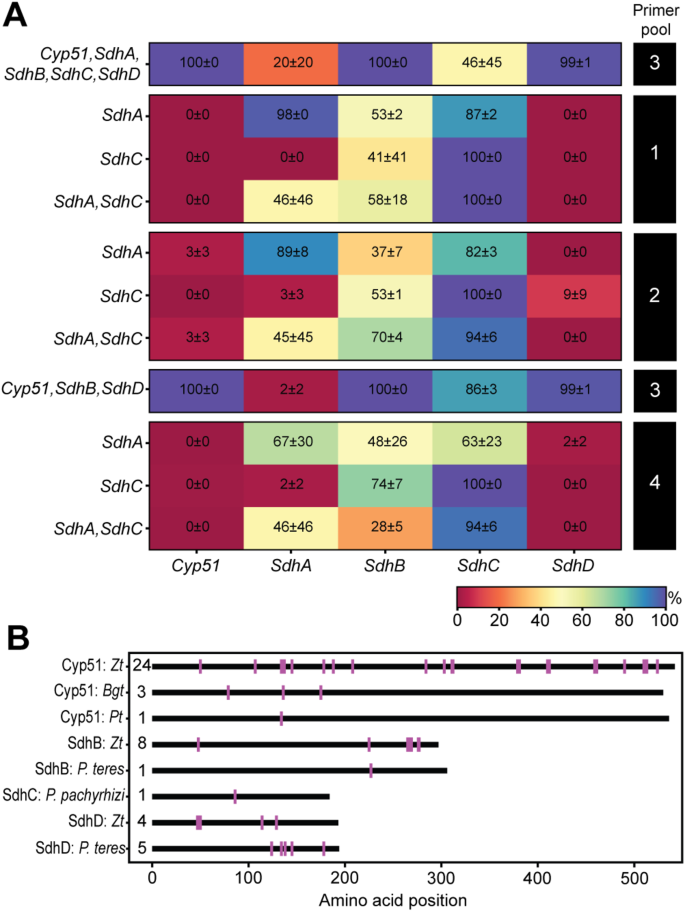

Optimising the pooling strategy for amplification of fungicide target genes in Pgt and highlighting resistance-associated mutations from other pathosystems for assessment in the MARPLE diagnostics platform. (A) To optimise amplification of the Pgt fungicide target genes (Cyp51, SdhA, SdhB, SdhC and SdhD), primer pairs were distributed across the four MARPLE diagnostics primer pools accordingly. Trials were conducted using DNA extracted from wheat material infected with Pgt isolates UK-03 and UK-13. Following gene sequencing, the average breadth of coverage was determined for each of the five genes, with the optimum breadth of coverage achieved when primers to amplify SdhA were added singly to pool 1, Cyp51, SdhB and SdhD to pool 3 and SdhC to pools 1, 2 or 4. (B) Non-synonymous mutations in Cyp51, SdhB, SdhC and SdhD that have been reported to influence fungicide sensitivity were collated for Zymoseptoria tritici (Zt), Blumeria graminis f. sp. tritici (Bgt), Puccinia triticina (Pt), Pyrenophora teres (P. teres), and Phakopsora pachyrhizi (P. pachyrhizi). This information was then incorporated into the MARPLE diagnostics Snakemake workflow to enable any analogous known mutations to be highlighted when processing Pgt-infected samples

Full size image

As multiple fungal species also frequently gain the same mutation in response to the same chemical treatment [2], we collated information on known mutations in Cyp51, SdhB, SdhC and SdhD from Zymoseptoria tritici, Blumeria graminis f. sp. tritici, Puccinia triticina, Pst, Pyrenophora teres, and Phakopsora pachyrhizi (Additional file 1: Table S6) (Fig. 7b). For the wheat rusts, this includes the only currently reported non-synonymous mutation in Cyp51 (Y134F) identified in P. triticina and Pst and the SdhC I85V mutation identified in Pst [54, 58]. This information was then incorporated into the MARPLE diagnostics Snakemake workflow to enable any analogous known mutations to be highlighted when processing Pgt-infected samples, alongside novel non-synonymous mutations that may be identified from alignment to the Pgt reference genes from Pgt isolate 21 − 0 [21] (Fig. 5; Additional file 9: Fig. S8).

Discussion

Fungal plant disease outbreaks are increasing in scale and frequency, with recurrent Pgt epidemics capable of reducing wheat harvests by 10–70% annually across the globe [59]. Like other rust fungi, new Pgt strains are constantly emerging, and can rapidly disperse over vast distances via airborne dispersal of asexual urediniospores. This facilitates transmission of Pgt strains between regions, which can lead to widespread disease outbreaks as exotic Pgt strains often overcome resistance in dominant crop varieties in the new region [20]. For example, Ethiopia is the largest wheat producing country in Sub-Saharan Africa, and in the 2013–2014 wheat season the country suffered a devastating Pgt outbreak caused by influx of a ‘new’ Pgt race. The epidemic developed rapidly, resulting in yield losses of nearly 100% on the most widely grown wheat cultivar (Digalu), with national wheat production losses of at least 15% [60]. In other global regions, changes in agronomic practices and climate change are also impacting Pgt geographic distribution [53]. For instance, Pgt began to re-emerge in western Europe in 2013 and is now considered a burgeoning risk to wheat production in the region due to the high level of wheat vulnerability [61]; over 96% of UK wheat varieties were recently shown to be susceptible to Pgt infection [53]. Furthermore, the geographic distribution of the notorious Pgt race termed ‘Ug99’ also recently shifted, being reported in Nepal in 2023 [62]. Thus, there is an urgent need to develop a PoC, real-time Pgt genotyping platform that would enable early detection of newly emerging Pgt isolates.

To address this need, we developed a simplistic amplicon-based genotyping strategy to rapidly type individual Pgt strains using the portable MinION nanopore sequencing device. Following comparative genomic analysis of 86 global Pgt isolates, we identified a core set of 276 highly variable genes that we showed are informative for distinguishing individual Pgt lineages, even at a 40% failure rate in amplification. Annotation of these 276 genes indicated that 32% encode proteins with a known function, and revealed significant enrichment for proteins with hydrolase activity, when compared to the remaining Pgt proteome. Hydrolase activity was also common (28%) among proteins within this set that are predicted to encode secreted proteins. Plant pathogens secrete an array of hydrolytic enzymes during infection, that can act as virulence factors. For instance, serving a critical role in breaching the host cell wall, which acts as the main physical barrier against microbial attack [63]. Fungal peptidases also exhibit hydrolytic activity and can alter or deactivate protein components of the host defense machinery, ultimately suppressing defense responses [64]. This can result in significant nucleotide variability, as observed among genes encoding secreted peptidases in the fungal wheat pathogen Zymoseptoria tritici [64]. We also noted a higher proportion of genes predicted to encode secreted proteins among the selected 276 Pgt gene set (14%), than represented in the full Pgt proteome (6% [27]). This likely reflects the greater sequence variation found among Pgt genes that encode proteins with a virulence function.

In addition to increased virulence, sequence diversification can also play a significant role in the decline of fungicide sensitivity reported in many pathogenic fungi. Over time, environmental exposure to fungicides can result in resistance developing through mutations in genes encoding fungicide targets, overexpression or duplication of these target genes, overexpression of linked transporters encoding efflux pumps and/or epigenetic changes altering gene expression, among others [65]. Traditionally, identifying resistant individuals relied solely on lengthy bioassays that provided detailed analysis of resistance levels. However, rapid molecular detection methods are now increasingly being used to identify alleles of target genes associated with resistance, enabling quicker monitoring of breakdowns in fungicide sensitivity. Thus, within the Pgt MARPLE diagnostics platform we also incorporated the ability to detect mutations in genes encoding the targets of two major fungicide classes used to tackle wheat rust outbreaks: azoles and SDHIs [66]. Within this system we also integrated the ability to highlight any analogous mutations reported in Z. tritici, B. graminis f. sp. tritici, P. triticina, Pst, P. teres, and P. pachyrhizi. Given the extensive parallel evolution of similar point mutations across various fungal species [2], monitoring for these characterised resistance alleles from other pathogens within Pgt may offer an early warning of shifts in fungicide sensitivity. This would expedite follow-up detailed bioassays and adjustments in fungicide application regimes to help protect crop yields.

While molecular diagnostic techniques are highly effective, their application is often limited to well-equipped laboratories with abundant resources. In contrast, the Pgt MARPLE diagnostics platform was developed to be specifically suited for use in resource-limited locations that are often the hardest hit during disease epidemics. To achieve this, we further optimised the existing simplistic system we established previously for processing Pst-infected wheat samples [19] and automated the bioinformatics analysis by introducing the Snakemake workflow engine [67]. This improvement in the bioinformatic analysis, reduced the time to generate the phylogenetic trees from approximately 20 h in the original Pst MARPLE workflow [19] to under 30 min. The Snakemake workflow also now produces automated MultiQC quality reports, allowing users to rapidly access the quality of the data generated. By comparing unknown Pgt isolates within the MARPLE diagnostics system to data from 9 major Pgt race groups [22], samples can be promptly assigned to known Pgt lineages within less than 2 days of collecting samples. Additionally, any Pgt isolates found to be dissimilar to Pgt representatives from known race groups, that could represent new incursions, can be quickly identified and highlighted for further investigation. Implementation of the Pgt MARPLE diagnostics platform in Kenya and Ethiopia demonstrated its effectiveness in accurately defining Pgt-infected wheat samples, assigning newly tested samples to lineages previously reported in East Africa. As additional data for more Pgt race groups becomes available, the Pgt MARPLE diagnostics system will become even more robust in accurately assigning Pgt-infected samples.

Conclusion

Effective management of fungal disease outbreaks hinges on prompt and accurate diagnostics to guide suitable treatment interventions. Over the past two decades, significant advances in genomic-based molecular diagnostic tools have created abundant new opportunities to enhance the speed and precision of disease diagnostic strategies. Despite these advances, implementing genomic-based diagnostics in resource-limited regions – often hardest hit by disease epidemics – remains challenging. However, the advent of the portable MinION sequencer has unlocked new possibilities for PoC disease diagnostics. By combining the portability of the MinION sequencer with amplicon-based genotyping to navigate the complexities of obligate fungal pathogens, we developed the near real-time Pgt MARPLE diagnostics platform. This platform offers the first portable system for strain-level diagnostics of Pgt directly from field-collected, Pgt-infected wheat samples, delivering results within 2 days of sample collection. Additionally, the platform’s capability to monitor mutations in fungicide target genes provides an early warning system for potential indicators of declines in fungicide sensitivity, allowing timely intervention. This study also provides a robust framework that can be adapted and applied to develop similar diagnostics and surveillance platforms for other complex fungal threats to plant health. As advanced genomic-based diagnostic tools are increasingly integrated into national surveillance programmes, our ability to manage disease outbreaks will improve, helping reduce the devastating losses currently caused by these ‘cereal killers’.

Data availability

All custom computer code and an easy-to-follow guide for installing prerequisite software has been deposited on GitHub (https://github.com/SaundersLab/marple.git). An interactive phylogenetic tree of the isolates included in MARPLE is available on Nextstrain (https://nextstrain.org/community/saunderslab/WheatRust/PGT-marple). Phylogenies are also provided for detailed interrogation in Newick format (Additional files 10-12). The nanopore data that supports the findings of this study has been deposited in the Sequence Read Archive (BioProject: PRJNA1214760).
