Chromosome-level genome assembly of Eimeria tenella at the single-oocyst level

Abstract

Background

Eimeria are obligate protozoan parasites, and more than 1,500 species have been reported. However, Eimeria genomes lag behind many other eukaryotes since obtaining many oocysts is difficult due to a lack of sustainable in vitro culture, highly repetitive sequences, and mixed species infections. To address this challenge, we used whole-genome amplification of a single oocyst followed by long-read sequencing and obtained a chromosome-level genome of Eimeria tenella.

Results

The assembled genome was 52.13 Mb long, encompassing 15 chromosomes and 46.94% repeat sequences. In total, 7,296 protein-coding genes were predicted, exhibiting high completeness, with 92.00% single-copy BUSCO genes. To the best of our knowledge, this is the first chromosome-level assembly of E. tenella using a combination of single-oocyst whole-genome amplification and long-read sequencing. Comparative genomic and transcriptome analyses confirmed evolutionary relationship and supported estimates of divergence time of apicomplexan parasites and identified AP2 and Myb gene families that may play indispensable roles in regulating the growth and development of E. tenella.

Conclusion

This high-quality genome assembly and the established sequencing strategy provide valuable community resources for comparative genomic and evolutionary analyses of the Eimeria clade. Additionally, our study also provides a valuable resource for exploring the roles of AP2 and Myb transcription factor genes in regulating the development of Eimeria parasites.

Background

Eimeria are obligate protozoan parasites that have evolved to exhibit immense diversity in their host range, including mammals, birds, reptiles, fish, and amphibians [1, 2, 3, 4]. Currently, more than 1,500 species of Eimeria have been described, virtually all of which are restricted to a single host species [5, 6, 7]. Oocysts that infect birds and livestock are of great relevance, and coccidiosis caused by Eimeria species has caused great economic loss to the aquaculture industry and infected wild vertebrates are significant [8, 9, 10, 11, 12]. In domestic chickens (Gallus gallus domesticus), seven globally recognized Eimeria species infect distinct regions of the intestine, each causing varying degrees of pathology [7]. Understanding the biology of Eimeria and their genetic diversity, population structure, and capacity to evolve underpins the development of new drugs and vaccines. It is now more than 100 years since the significance of coccidiosis was first recognized in poultry, however notable gaps persist in our knowledge [5, 8].

High-quality genome sequencing is a powerful tool for studying Eimeria in biology, genetics, genome, and comparative genomics; however, studies on the Eimeria genome are relatively scarce. Genome sequencing started for Eimeria in 2002; after nearly 22 years of extensive research by scientists around the world, only 12 Eimeria species (E. tenella, E. praecox, E. acervulina, E. maxima, E. necatrix, E. mitis, E. brunetti, E. falciformis, E. nieschulzi, E. zaria, E. nagambie, and E. outlata) have been sequenced [13]. The landmark publication of seven Eimeria genome sequences in 2014 greatly boosted studies on Eimeria, related apicomplexans, and many protozoa [14]. The Darwin Tree of Life (https://www.darwintreeoflife.org/) and the Earth BioGenome Project (https://www.earthbiogenome.org/)have further promoted the progress of Eimeria genome research [15]. The genomes of E. tenella and E. praecox have reached a chromosome level in 2021 and 2023 [15].

The quality and number of Eimeria genomes have lagged behind many other eukaryotes for the following reasons: (1) 45–50% highly repetitive sequences (frequent occurrence of trimer CAG (and other derivatives) and heptamer AAACCCT/AGGGTTT) adding to the difficulty of genome assembly [16]; (2) a lack of sustainable in vitro culture cannot obtain a large number of single-species oocysts; (3) often a mixed infection with strict host specificity, and it is difficult to establish animal models and obtain a large number of single-species oocysts; and (4) the oocyst wall often adheres to food residues and microorganisms like bacteria and fungi, which can lead to DNA contamination and seriously affects genome assembly. Based on the genomic and biological characteristics of Eimeria, in 2014, Nair proposed using single-cell and low-input amplification-based genomics, which can be considered for sequencing with little or no need for in vivo culture [17]. Therefore, additional tools are required if we want to make progress, such as single-cell sequencing and long-read sequencing.

Recent advances in whole-genome amplification (WGA) methods have enabled sequencing of picogram amounts of DNA in a single cell, thus providing a powerful way to obtain microbial genome sequences without cultivation [18]. Detected genetic variants at the single-cell level through WGA and sequencing are well established in human cell lines [19, 20, 21, 22, 23, 24, 25, 26]. To date, single-cell WGA and sequencing have been used successfully in ciliates, Plasmodium spp., Cryptosporidium spp., and Leishmania donovani, leading to important progress in understanding genome biology and evolution [27, 28, 29, 30]. Concurrently, with the progression of long-read sequencing technologies, specifically from companies such as Oxford Nanopore Technologies and Pacific Biosciences, genomic research has transitioned into the era of telomere-to-telomere (T2T) sequencing [31, 32]. High-fidelity (HiFi) sequence reads generated via circular consensus sequencing (CCS) are accurate (greater than 99.00%), especially for repeat sequence regions [33, 34]. Together these technologies enable us to overcome the key difficulties.

To address this, we developed a platform for single-oocyst, whole-genome sequencing using third-generation technology, enabling genome analysis of unculturable species or those with limited oocyst yields. First, E. tenella with a reference genome and transcriptome data (complete growth and development) was selected as the research object. Second, we performed single-oocyst WGA using the multiple displacement amplification (MDA) method in E. tenella and then used the amplified DNA to construct high-throughput libraries for whole-genome sequencing (WGS) using long-read sequencing technology (ONT and PacBio). Finally, through assembly, we obtained a high-quality genome, and through comparative genomics and transcriptomic analysis, we elucidated the genomic features and revealed the gene expression characteristics at different developmental stages, identifying key genes involved in the developmental process, thereby laying a foundation for an in-depth understanding of the Eimeria lifecycle.

Material & methods

Sample preparation

The E. tenella strain used in this study was the Houghton (H) strain donated by the State Key Laboratory of Zoon Protozoa, China Agricultural University. Sporulated oocysts were suspended in 2.50% K₂Cr₂O₇ solution and then washed with a sterile PBS solution.

Single-oocyst separation

Five microliters of purified E. tenella oocyst suspension was absorbed using a 10 μL pipette and dripped onto a glass Petri dish. Under an inverted Olympus microscope at 60 × magnification (OLYMPUS-BX53, Japan), a single oocyst of E. tenella was isolated using a three-axis hydraulic micromanipulator (World Precision Instruments, Inc., USA). In this study, only one oocyst was selected, the oocyst wall was punctured with a capillary needle of approximately 40 μm, and the four sporocysts were released. The four sporocysts were transferred into a PCR tube containing 4 μL of PBS buffer (Fig. 1).

Fig. 1

Assembly workflow of single-oocyst genomes of E. tenella. The workflow illustrates the preparation of a single oocyst of the E. tenella sample, sequencing platforms, and assemblers

Single-oocyst WGA, library construction, and sequencing

Single-cell WGA was performed using a REPLI-g@Single Cell Kit (QIAGEN, Germany). WGA products were purified using Agencourt AMPure XP beads (BECKMAN, USA) to remove dNTP, primers, primer dimers, salt ions, and other impurities from the amplified products. To reduce exogenous DNA contamination, we cleaned the bench using anhydrous ethanol and treated the MDA reagents with UV irradiation for 30 min before amplifying the single-oocyst sample. Both MDA amplification and DNA purification tests were performed in a 1300 Series II Class A2 biosafety cabinet (Thermo Fisher Scientific). NanoDrop One (Thermo Fisher Scientific, USA) was used to detect sample concentrations C (ng/μL), A260/A280, and A260/A230. Qubit 3.0 (Invitrogen, USA) was used to quantify the WGA products, and the Nc/Qc (NanoDrop/Qubit) ratio was calculated according to the concentrations detected by the two instruments. At the same time, 1μL of the amplification product was diluted with double steamed water at 1:100, and then the content of E. tenella genomic DNA was detected by qPCR based on the SSU rRNA gene of E. tenella (Supplemental Material). The content of E. tenella genomic DNA in the diluent was characterized by the Ct values obtained using a fluorescent quantitative PCR instrument (qTOWER3 G, Analytikjena, Germany).

Single-oocyst WGA products library construction and sequencing

High-quality amplified DNA was used to construct a genomic library, which was size-selected using BluePippin (Sage Science, USA). The purified and size-selected library was then sequenced on the PacBio Revio equipment platform (HiFi) in continuous long-read mode (Pacific Biosciences, USA) and on the PromethION sequencer (ONT, UK) following the manufacturer’s instructions (Supplemental Material). A total of 17 Gb (340× coverage) PacBio HiFi and 10 Gb (200× coverage) ONT long sequencing reads were obtained after removing adaptors reads. For short-read sequencing, library preparation was performed with 50 ng of fragmented DNA using the MGIEasy Universal DNA Library Prep Kit (MGI, Shenzhen, China) and sequenced on the MGISEQ-2000 platform (BGI, Shenzhen, China) (Supplemental Material). Approximately 1.6 Gb (32× coverage) of 150-bp paired-end reads (clean data) were generated using the MGI sequencing platform (Fig. 1).

Genome assembly

The adapters in the HiFi and ONT raw data were removed using HiFiAdapterFilt v.2.0.1 [35] and Porechop v.0.3.2 [36] to trim adapters and low-quality bases in the short reads. First, based on ONT and PacBio reads, genome assembly was performed using Flye v.2.9.2 [37] with the default parameters. RaGOO v.1.1 [38] was used to map the contigs to the chromosomes of closely related species (PRJEB43184). Additionally, to enhance the contiguity of the assembly, the genome assemblies generated by the two platforms were merged using Quickmerge v.0.3 (https://github.com/mahulchak/quickmerge). Finally, they were polished using Pilon v.1.24 (https://github.com/broadinstitute/pilon) based on short sequencing reads [39] (Fig. 1). Benchmarking Universal Single-Copy Orthologs (BUSCO) v.5.4.6 [40] was used to evaluate the completeness of the E. tenella genome assembly against the Coccidia_odb10 database.

Repetitive elements annotation

A combination of de novo and homolog search strategies was used to identify and annotate the repeat sequences in the E. tenella genome. RepeatScout v.1.0.5 [41] identified duplicate sequences to remove LTR-type data and then merged the results with LTR-FINDER v.1.05 [42] and LTR-harvest [43]. The identified repeats and the Repbase database were merged as the final repeat sequence library, followed by classification into different repeat categories using the PASTEClassifier.py script included in REPET v.2.5 [44]. The E. tenella genome assembly was investigated for TEs using RepeatMasker v.4.0.6, with a final repeat sequence library [45].

Gene prediction and annotation

Protein-coding genes were predicted by integrating ab initio methods, homology alignment data, and transcriptomic data. Transcriptomic data for E. tenella from unsporulated oocysts (SRX15012440), sporulated oocysts (SRX15012437), sporozoites (SAMEA3249300, SAMEA3249299 and SAMEA3249304), merozoites (SAMEA3249301 and SAMEA3249306), and gametocytes (SAMEA3249302, SAMEA3249305 and SAMEA3276969) (Project: PRJEB8442, https://www.ebi.ac.uk/ena/browser/view/PRJEB8442; http://www.ncbi.nlm.nih.gov/sra) were downloaded from the NCBI and ENA databases. For ab initio methods, PASA v.2.4.0 [46] was applied to produce candidate gene structures, which could be applied to obtain a set of gene structures for training SNAP (v.2013-11-29) [47], Augustus v.3.3.3 [48], GenomeThreader v.1.6.1 [49], and GlimmerHMM v.3.0.4 [50]. Subsequently, using trained gene models, Augustus v.3.3.3 [48] and GlimmerHMM v.3.0.4 [50] were used to forecast the gene structure. Liftoff v.1.6.3 was used for annotation based on the reference genome annotation result file [51]. Gene models derived from ab initio and homologous alignment data were integrated into a non-repetitive gene set using EVidenceModeler v.1.1.1 [52], and protein-coding genes were predicted.

The predicted protein sequences were functionally annotated through searching against 18 databases using InterProScan v.5 [53], including CDD [54], Coils [55], Gene Ontology [56], Gene3D [57], Hamap [58], MobiDBLite [59], PANTHER [60], Pfam [61], Phobius [62], PIR [63], PRINTS [64], ProSite [65], SFLD [66], SignalP [67], SMART [68], SUPERFAMILY [69], TIGRFAM [70], and TMHMM [71].

Circumscribing species

The whole-genome average nucleotide identity (ANI) and alignment coverage between Eimeria spp., about E. tenella_1 (in the present study), E. tenella (PRJEB43184), E. necatrix Houghton (PRJEB4833), E. maxima Weybridge (PRJEB4864), E. acervulina Houghton (PRJEB4832), E. brunetti Houghton (PRJEB4834), E. mitis Houghton (PRJEB4835), E. praecox (PRJEB71489), E. nagambie (PRJEB40060), E. lata (PRJEB40060), E. zaria (PRJEB40060), E. falciformis Bayer Haberkorn 1970 (PRJNA232109), and E. nieschulzi Landers (PRJNA258495) were calculated using FastANI v.0.2.10 [72] with the default parameters.

Collinearity analysis

Three species with completed genomes, namely E. tenella (in this study), E. tenella (PRJEB43184), E. tenella APU2 (PRJNA929509) and E. praecox (PRJEB71489), were selected for collinearity analysis. MCScanX [73] was used to identify the homologous scaffolds and gene synteny. Pairwise blocks were defined as at least five homologous genes in a 25-gene size window.

Phylogenetic analysis and divergence time estimation

The orthologous gene copies that were present in 13 species of apicomplexan parasites, namely P. falciparum 3D7 (PRJNA13173), B. bovis T2Bo (PRJNA18731), C. parvum C1HN (PRJNA1045063), T. gondii ME49 (PRJNA28893), Cystoisospora suis Wien I (PRJNA341953), Cyclospora cayetanensis NF1_C8 (PRJNA357479), E. tenella (in present study), E. necatrix, E. maxima, E. acervulina, E. brunetti, E. mitis, and E. praecox, were identified and aligned using OrthoFinder v.2.5.4 [74]. The aligned sequences were concatenated using custom scripts to generate FASTA files for further phylogenetic analyses. Maximum likelihood phylogenetic trees were generated using RAxML v.4.4 [75] with the best-fit model LG + F + R5. ITOL was used to visualize and edit phylogenetic tree-labels (http://itol2.embl.de/upload.cgi). The divergence time for apicomplexan parasites was estimated using the MCMCtree [76] program with two correlated time points: 817 million years ago (Mya, divergence time between P. falciparum and T. gondii, ranging from 580 to 817 Mya), 545 Mya (divergence time between B. bovis and C. parvum, ranging from 420.3 to 580 Mya) and 499 Mya (divergence time between T. gondii and C. parvum, ranging from 420 to 580 Mya) [77–78].

Ortholog group identification and gene family expansion and contraction analysis

The apicomplexan protein sequences were downloaded from the NCBI database. The orthologous groups across 13 species, namely P. falciparum, B. bovis, C. parvum, T. gondii, C. suis, C. cayetanensis, E. tenella, E. necatrix, E. maxima, E. acervulina, E. brunetti, E. mitis, and E. praecox, were identified using OrthoFinder v.2.5.4 [74], which is a practical, fast, accurate, and comprehensive tool for comparative genomes. The identified ortholog groups were used for further analysis of gene family expansion and contraction with cafe5 v.5.0.0 [79].

Ka/Ks analysis

The nonsynonymous (Ka) and synonymous (Ks) substitution rates and positive selection strength (Ka/Ks) were calculated using the KaKs_Calculator v.2.0 [80]. First, reciprocal BLAST was used to run pairwise alignments of the E. tenella genome with C. cayetanensis and E. maxima; the e-value was set to 1e-5, and the number of hits for each pair of species was set to 5. Second, each pairwise protein sequence was aligned using MUSCLE [81], and pairwise nucleotide sequence alignments were generated by transforming protein alignments into codon alignments using ParaAT [82]. Third, Ka/Ks ratios were calculated based on pairwise codon alignments using KaKs_Calculator, and the KaKs_Calculator models were invoked from the PAML.M0 model (Branch site model) used in this study.

Identification Of AP2 and Myb gene family in Eimeria spp. Of chicken and gene families phylogenetic analysis

To investigate the type and number of AP2 and Myb-related gene families in each Eimeria spp., the target proteins of the AP2 and Myb gene families retrieved from T. gondii in ToxoDB (https://toxodb.org/) were first downloaded as reference data [83]. The AP2 and Myb gene families were identified by BLASTP searches using the above reference data (E-value < 1e-5). At the same time, the HMMER (http://hmmer.org/) was also used to search these two gene families by building a Hidden Markov Model (HMM) profile [85]. Finally, the filtered AP2 and Myb proteins were merged respectively from the results of the above two methods and used for further analysis. The AP2 and Myb gene family protein sequences of Eimeria spp. were used for phylogenetic analyses. Protein sequences were aligned for each dataset using the MUSCLE [81] algorithm on the GUIDANCE web server with default parameters. A phylogenetic tree was constructed using the maximum likelihood (ML) method implemented in IQ-TREE with 1,000 bootstrap replicates [87, 88]. The best-fit amino acid substitution model for ML analysis was MFP.

Chromosome distribution, gene structure, conserved domain, and conserved motif analysis

The chromosomal distribution of these genes was obtained from the genome annotation information. The exon-intron organization and splicing phase of these predicted AP2 and Myb genes were also investigated based on the annotation file of the Eimeria spp. genome and then graphically displayed using the Gene Structure Display Server [84]. The conserved domains were predicted using the Hmmer web server [85]. Finally, conserved protein motifs were analyzed using MEME [86], with an optimum motif width ranging from 6 to 200 and a maximum number of 10.

Gene expression of EtAP2 and EtMyb gene families

The high-throughput RNA sequencing data of E. tenella were retrieved and downloaded from the SRA database (Project: PRJEB8442, https://www.ebi.ac.uk/ena/browser/view/PRJEB8442; http://www.ncbi.nlm.nih.gov/sra) and used to detect the differential expression of the EtAP2 and EtMyb genes. A total of five RNA datasets from different developmental stages were used, namely unsporulated, sporulated, sporozoites, merozoites, and gametocytes. Hisat2 v.2.2.1 [89] was used to compare transcriptome data to the genome of E. tenella, featureCounts (https://github.com/apeltzer/IGCG-featureCounts) was used for gene quantitative analysis, and DEseq2 v.1.4 (https://github.com/thelovelab/DESeq2) was used for differential expression analysis.

Results

Genome assembly and annotation

The final assembly had a total length of 52.13 Mb in 15 chromosomal scaffolds and one mitochondrial scaffold, which is consistent with previous studies on E. tenella genome size. Fifteen chromosome-level scaffolds lengths are as follows: 0.88 Mb (Chromosome (Chr) 1), 1.11 Mb (Chr 2), 1.83 Mb (Chr 3), 1.80 Mb (Chr 4), 2.84 Mb (Chr 5), 3.26 Mb (Chr 6), 3.61 Mb (Chr 7), 3.76 Mb (Chr 8), 3.54 Mb (Chr 9), 3.93 Mb (Chr 10), 4.14 Mb (Chr 11), 3.99 Mb (Chr 12), 4.85 Mb (Chr 13), 5.82 Mb (Chr 14), and 6.76 Mb (Chr 15), and there is certain collinearity between chromosomes (Fig. 2). The total scaffold N50 and GC contents of the genome were 3.92 Mb and 51.61%, respectively (Table 1). We re-mapped the PacBio HiFi reads to the E. tenella assembly and found a uniformly high coverage across nearly all genomic regions. The assembly had a BUSCO completeness score of 92.00%, using the Coccidia_odb10 reference set. All these results confirmed the overall accuracy of the assembly (Fig. 3a and S1; Table 1).

Fig. 2

Genomic features of E. tenella. Circos display of important features of the assembled E. tenella genome. The five layers depict the chromosome names and sizes, the scale unit is 0.2 Mb. (a), gene density along each chromosome, black: low gene distribution, blue: high gene distribution (b), repeat sequence density along each chromosome, red: high repeat density, blue: medium repeat density, yellow: low repeat density (c), distribution of GC content in each chromosome (d), links between syntenic genes (e)

Table 1 Comparison between the assembled and published E. tenella reference genomes

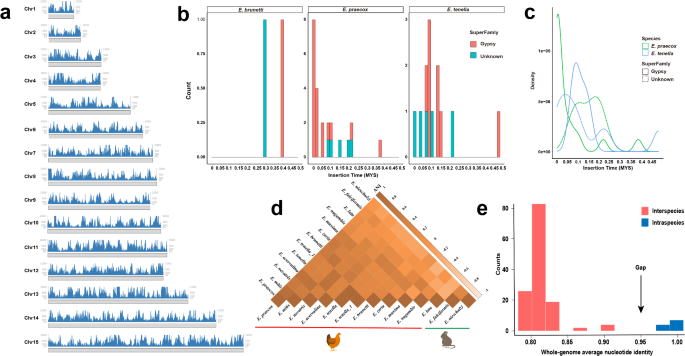

Fig. 3

E. tenella genome-based taxonomy, sequencing depth, and analysis of TEs. Genome sequencing depth by PacBio platform (a), insertion bursts of Gypsy and unknown elements in E. tenella, E. brunetti, and E. praecox (b), temporal patterns of LTR-RT insertion bursts in E. tenella as compared with those in E. brunetti and E. praecox (c), heatmap showing the average nucleotide identity (ANI) among the 13 Eimeria species (d), ANI distributions among the 13 Eimeria species (e)

A total of 24.47 Mb of sequences (46.94%) were annotated as TEs, 7,296 protein-coding genes were predicted and 5,484 (75.16%) genes were annotated in the assembly of E. tenella (Table S1). The protein-coding genes of E. tenella were functionally annotated (783 KEGG pathways and 54 GO categories) (Table S2, Fig. S2), which provides a systematic understanding of the biological functions of E. tenella genes and helps to elucidate their roles in host infection and the parasite’s lifecycle. Collectively, the results illustrate the high quality, reliability, and accuracy of the assembly.

Analysis of repeat sequences

A total of 24.47 Mb of sequences, representing 46.94% of the E. tenella assembly, were annotated as repeat, which included 128,513 elements (Table S1). This repeat sequences content was higher than that previously reported for E. tenella (38.94%) and E. maxima (37.78%). Approximately 33.92% of the E. tenella genome was annotated as containing transposon elements (TEs), including 1.45% retrotransposons and 19.87% DNA transposons. Unclassified DNA transposons were the dominant TEs, followed by Retroelements. The Gypsy retrotransposon element was the second most abundant TE, constituting 2.35% of annotated TE content. Cross-genome comparisons with E. brunetti and E. praecox showed that LTR-RTs, especially Gypsy elements, contributed the most to the genome expansion of E. praecox (Fig. 3b).

A distinct bimodal distribution was observed for Gyspy insertion times in E. tenella, whereas a trimodal distribution was observed for E. praecox (Fig. 3c). E. tenella had a comparatively high proportion of recent LTR-RT insertions, with the peak of amplification appearing around 0.1 My; the other peak occurred at approximately 0.45 My (Fig. 3c). At the superfamily level, we found very recent bursts of unknown elements in E. tenella and bursts of Gyspy element at 0.075–0.15 My, while amplifications of unknown and Gyspy retrotransposons dominantly shaped the bimodal distribution pattern burst dynamics. We also found very recent bursts of Gyspy elements in E. praecox (Fig. 3b, c).

A robust genome-based taxonomy

We found a clear whole-genome average nucleotide identity (whole-genome ANI) discontinuity among the 13 Eimeria species: >99.91% or < 91.08%; among them, the ANI score of E. tenella and E. necatrix was 91.08%, that of E. maxima and E. lata was 90.63%, and those of other Eimeria species in chicken ranged from 77.35 to 82.77%. The ANI score of the two Eimeria species in the mouse was 77.69%. The range of ANI scores between Eimeria species of chicken and mouse Eimeria species was 77.05–78.46%, suggesting that the ANI was also suitable for Eimeria species (Fig. 3d, e).

Orthology, collinearity, and phylogenetic analyses

In P. falciparum, C. suis, C. parvum, T. gondii and E. tenella species, a total of genes (8,740) were clustered into (6,691) orthologous groups, of which 2,112 (31.56%) genes were shared across all five apicomplexan species (Fig. 4a). A total of 6,320 genes were clustered into 5,276 orthologous groups, of which 2,857 (54.15%) genes were shared across all five Eimeria species, representing a pan-Eimeria conserved orthogroup (Fig. 4a). Furthermore, synteny analysis indicated that E. tenella and the reference genome (E. tenella) barely exhibited disparities in gene content within comparable regions (Fig. 4b, S5). The observed differences primarily pertain to minor structural variations such as the slightest inversions. However, the genes of E. tenella and E. praecox displayed no significant collinear relationships, with a rearrangement of large fragments (Fig. 4b).

Fig. 4

Gene cluster, collinearity, and phylogenetic analysis of apicomplexa. Orthology between species and unique E. tenella proteins. Venn diagram showing orthologous groups in E. tenella and nine other apicomplexan species (a), E. tenella is collinear with the reference genome and E. praecox genes (b), estimated divergence time across apicomplexan parasites. Species dates were determined using 150 orthologous groups across 13 apicomplexan parasites. Two fossil times were included to calibrate the split between these species. 95% confidence intervals for each node are shown in the heatmaps (c)

The species tree was also inferred using phylogenomic analysis of 150 single-copy orthologous genes identified using OrthoFinder v2.5.4 [74] in 13 apicomplexa species. P. falciparum was used as an outgroup to reconstruct ML phylogenetic trees. Each species formed a monophyletic clade with sister-group relationships among clades (T. gondii and C. suis). Eimeria spp. are paraphyletic, with sister-group relationships among clade (E. tenella and E. necatrix) and (E. brunetti and E. mitis) (Fig. 4c). In the phylogenetic tree of apicomplexan parasites, the Eimeria genus is positioned on a relatively lower branch, indicating a distant evolutionary relationship with species like P. falciparum, B. bovis, T. gondii, and C. parvum (Fig. 4c). However, it is more closely related to the host-specific species C. suis and C. cayetanensis (Fig. 4c). This result suggests that these species may have undergone similar selective pressures during evolution, particularly in terms of host specificity and adaptation of parasitic mechanisms. E. tenella was derived from a common ancestor with other parasites approximately 231.48 million years ago (Mya) (Fig. 4c). This means E. tenella shares a distant common ancestor with other parasites, dating back to the early Triassic period (the early evolution of dinosaurs). Furthermore, E. tenella and other Eimeria species are thought to have split around 192.38 Mya (Fig. 4c). This divergence event likely marks the point at which Eimeria species began to diverge from a common ancestor, gradually adapting to host environments and forming distinct species. The relatively recent timing of this divergence suggests that E. tenella and other Eimeria species share a more recent common ancestor and have undergone similar evolutionary pressures in terms of host specificity and parasitic mechanisms.

Multigene families and adaptive evolution of Eimeria tenella

All apicomplexan parasites species demonstrate a high level of gene family stability, and the high proportion of stable gene families helps them maintain long-term survival within the host, ensuring the stability of their physiological functions (Fig. 5a). C. parvum exhibits a significant contraction of gene families, far surpassing other species (with 1339 contracted gene families), reflecting its genome streamlining in adaptation to its host and lifestyle (Fig. 5a). This genome simplification is closely related to its high adaptability to the host environment, allowing C. parvum to achieve maximum survival and reproductive capacity with the minimal genetic burden. In contrast, Cystoisospora suis shows a substantial expansion of gene families, far exceeding other species (with 1556 expanded gene families), indicating significant genomic expansion to adapt to the microenvironment within its pig host, thereby enhancing its survival and reproductive abilities within the host (Fig. 5a).

Fig. 5

Evolution of gene families, adaptive evolution in apicomplexan parasites, chromosomal distribution, and expression of EtAP2 and EtMyb gene families. Dynamics of gene family size in apicomplexa parasite genomes. The numbers below the branches indicate gene family expansions/contractions/stable, and the numbers above the branches show gene gains/losses/retention (a), Ka/Ks comparisons of the E. tenella genome with C. cayetanensis (b), Ka/Ks comparisons of the E. tenella genome with E. maxima (c), schematic representations of the chromosomal distribution of EtAP2 genes. The chromosome number is indicated at the upside of each chromosome (d), schematic representations of the chromosomal distribution of EtMyb genes, the chromosome number is indicated at the upside of each chromosome (e), the correlation between the gene expression patterns of 49 EtAP2 and 7 EtMyb genes (f), the scale in the figure represents the Log2(TPM values) after column normalization processing, where the depth of the color indicates the degree of correlation. The darker the color, the stronger the correlation, ranging from − 2 (completely negatively correlated) to 2 (completely positively correlated)

In Eimeria species, most exhibit a certain degree of gene family expansion, with E. necatrix and E. maxima standing out, suggesting a strong demand for adaptation to host immune responses and increased infection capability (Fig. 5a). In contrast, E. tenella shows relatively fewer expanded gene families (48 expanded), such as those involved in transcription (AP2 domain transcription factor and DEAD-like helicase superfamily), translation (lysyl-tRNA synthetase, class-I aminoacyl-tRNA synthetase family, RNA methyltransferase, and ribosomal protein L15), post-transcriptional modification (phosphatase 2 C), and protein degradation (S8 family peptidase and ubiquitin-transferase domain-containing protein). These expanded genes are primarily involved in various biological processes, including growth and development, host invasion, metabolism, catalysis, and ATP energy acquisition. These processes are crucial for E. tenella’s infection mechanisms, host adaptation, lifecycle development, and energy acquisition, enabling it to survive and rapidly reproduce within the host, thus completing its lifecycle. Most Eimeria species also show a high level of gene family contraction, especially E. tenella and E. acervulina, which may be associated with their specific adaptation to the host, the elimination of redundant genes, and the optimization of their genome structure (Fig. 5a). Despite significant gene expansion in E. necatrix and E. maxima, their gene family contraction is relatively limited, which may indicate that their genomes maintain a higher complexity to adapt to the immune challenges of different hosts.

We discovered species adaptations using pairwise Ka/Ks comparisons of the E. tenella genome with those of C. cayetanensis and E. maxima. Within the E. tenella genome, we found that 22 and 27 of these families had higher Ka/Ks ratios than other genes (Fig. 5b, c). We found that some genes received selection pressure, including NUF2, protein serine/threonine phosphatase, AP2, and Myb (Fig. 5b, c).

Identification, phylogenetic relationship, motif, protein domain, and gene structure analyses of the AP2 and Myb gene families in seven Eimeria spp. from chicken

In total, 284 AP2 and 60 Myb protein sequences were identified in the genomes of seven Eimeria spp. from chickens, and the AP2 and Myb gene numbers of each species ranged from 22 to 53 and 4 to 12, respectively (Table S3 and S4). We named the 284 AP2 and 60 Myb genes based on their location on the chromosomes or scaffold of seven Eimeria spp. from chickens (Tables S3 and S4). The 284 predicted AP2 and 60 predicted Myb proteins varied in length, molecular weight (MV), and isoelectric points (PIs) (Tables S3 and S4). To further study the evolutionary relationships of the AP2 and Myb genes, we constructed phylogenetic trees using their respective protein sequences of these seven Eimeria spp. from chicken and analyzed the protein characteristics, including conserved motifs, protein domains, and corresponding exon organization (Figs. S3 and S4). The information obtained from the phylogenetic tree showed that the AP2 and Myb genes from the different species were also divided into many groups, whereas all AP2 and Myb genes were scattered (Figs. S3 and S4).

Chromosomal distribution and differential expression of the EtAP2 and EtMyb genes

In the present study, chromosome mapping of EtAP2 and EtMyb was performed using the E. tenella genome. A total of 52 AP2 and 9 EtMyb genes were evenly distributed on chromosomes 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, and 15, and nine AP2 and three Myb transcription factors were clustered on chromosomes 13 and 12, respectively (Fig. 5d, e). To investigate the expression patterns of EtAP2 and EtMyb further, we analyzed the transcriptome data of the five stages during the growth and development of E. tenella. The results showed high variance in the expression levels of EtAP2 and EtMyb. Regarding EtAP2, 10 AP2 genes showed no obvious high expression during the whole growth and development process of E. tenella, most of the AP2 genes were highly expressed in the asexual reproductive stage, and only four AP2 genes were highly expressed in the sexual reproductive stage (Fig. 5f). A total of 17, 9, 22, 13, and 5 AP2 genes were highly expressed in unsporulated oocysts, sporulated oocysts, sporozoites, merozoites, and gametocytes, respectively. Among them, two AP2 genes (ETH2_0518400 and ETH2_0411800) were significantly overexpressed during the entire growth stage, especially in the unsporulated oocysts stage (Fig. 5f). The ETH2_0940300 AP2 gene was highly expressed only at the sporozoite stage (Fig. 5f). The ETH2_0604000 AP2 gene was highly expressed only at the merozoite stage (Fig. 5f).

Four proteins showed relatively high expression at multiple stages during the growth and development of E. tenella, including ETH2_1257900, ETH2_0916800, ETH2_1341800, and ETH2_1583500 (Fig. 5f). However, two genes, namely ETH2_1257900 and ETH2_1249500, showed low expression in all stages during the growth and development of E. tenella (Fig. 5f). Furthermore, ETH2_0802900 was significantly expressed only in unsporulated and sporozoite stages. The ETH2_1257900, ETH2_0916800, ETH2_1341800, ETH2_1583500, and ETH2_0802900 genes were significantly expressed in the sporozoite stage, and their expression levels decreased after the sporozoite stage (Fig. 5f). Interestingly, with the growth and development of E. tenella, the expression level of ETH2_1257900 increased gradually and was the highest in the merozoite stage (Fig. 5f).

Discussion

High-quality genomes provide valuable data for comparative analyses to gain insights into the biological features of Eimeria species. In this study, we developed a platform for whole-genome, third-generation sequencing of a single oocyst. High genome completeness (average 92.00%) and high precision are encouraging, suggesting that it is possible to obtain high-quality genome data from a single oocyst of Eimeria regarding both coverage and precision. We obtained a genome at the chromosome level of E. tenella and successfully assembled 15 chromosome-level scaffolds. However, pulsed-field gel electrophoresis and electron microscopy results indicated that E. tenella had at least 14 chromosomes, with size ranging from 1 to 7 Mb [90, 91]. Interestingly, recent applications of third-generation ONT, PacBio, and Hi-C sequencing to E. tenella and E. necatrix have increased their karyotypes from 14 to 15 chromosomes [15]. Conversely, closely related coccidia species, Neospora caninum and T. gondii, have exhibited a reduction in their karyotype count, decreasing from 14 to 13 chromosomes [92, 93]. These findings challenge previous assertions regarding the haploid chromosome number of 14 for Eimeria species, suggesting that further investigation is necessary to accurately determine and understand the karyotype complexity within this group of parasites.

Since the first genome of E. tenella was published in 2014 [14, 15], three genome versions of E. tenella have been published and updated, which constitute valuable genomic resources for the study of E. tenella. When comparing our results to the genome assemblies of E. tenella published in 2021 and 2023, we observed similarities in genome size, GC content, number of scaffolds, N50 size, and genome completeness. However, notable improvements were observed when comparing our results to the 2014 assembly. Specifically, the number of scaffolds decreased dramatically from 4,664 to 15, indicating the achievement of a chromosomal-level draft of the genome. The N50 increased from 200,914 bp to 3,921,268 bp, and the size of repeat sequences in this study was higher than that in previous studies (Table 1). However, the number of genes predicted in this study (7,296) was lower than that reported in previous studies (8,603) (Table 1). This discrepancy may be attributed to the high quality and continuity of the genome assembly in our study, which likely reduced errors and duplicate gene predictions. And, we think the genome of E. tenella reached chromosomal level at 2021, 2023 and in the present study, which primarily relies on long-read sequencing technology capable of spanning repetitive sequence regions.

In 2022, Tang assembled the human genome in 1, 10, 20 and 30 cells to investigate the limitations of human genome assembly using a minimal amount of single-cell genome sequencing data. The results revealed that BUSCO evaluation completeness was 13.00%, 81.20%, 90.80%, and 91.50% [94]. In apicomplexan parasites, The BUSCO evaluation completeness of single-amplified genomes from Plasmodium spp. and Cryptosporidium oocysts were 62.00% and 81%, respectively [28]. We identified 462 (92.00%) of 502 conserved BUSCO genes (Table 1). Thus, the E. tenella genome sequence is of high quality in both intergenic and genic regions because an E. tenella oocyst contains eight sporozoites, and the sporozoite is the clonal unit.

Additionally, in apicomplexan parasites, repeat sequences have been observed in Eimeria, Plasmodium (P. gallinaceum and P. relictum), and Babesia spp [30, 95, 96]. The retrotransposons identified in Eimeria spp. were mainly classified as belonging to the LTR/Gypsy family. In the present study, repeated sequences of several Eimeria species were analyzed, and the results showed that recent large-scale bursts of Gypsy retroelements may have contributed directly to the E. praecox genome expansion (Fig. 3b, c). All transposable elements (TEs) were inserted within the past 0.5 million years (Mya), indicating that after speciation events among the three Eimeria species, at least one significant amplification of TEs occurred in each genome. Intriguingly, in E. tenella, unclassified DNA transposons were the major TEs that recently expanded (Fig. 3b, c). However, we do not know whether this affects the gene structure and function of the genome. Therefore, additional studies are necessary to elucidate the potential role of transposable elements (TEs) and DNA transposons in the evolution of E. tenella. Furthermore, it would be valuable to investigate whether TE and DNA transposon insertion polymorphisms can serve as markers to trace the origin and phylogenetic relationships of E. tenella.

Robust taxonomy is essential for communicating scientific results and describing biodiversity [96, 97, 98]. Species identification and classification of Eimeria mainly depend on morphological and molecular biological identification (SSU rRNA, ITS, and COI gene loci). However, the morphological structure and molecular sequences of Eimeria species exhibit a high degree of similarity, which poses challenges in accurately identifying and distinguishing between species. Consequently, this similarity has led to confusion and ambiguity, with multiple names being assigned to the same Eimeria species. Fortunately, the emergence of whole-genome ANI tools has provided favorable evidence for Eimeria species identification and classification. Whole-genome ANI has been widely used to quantitatively circumscribe species of prokaryotes [97, 99]. We found a clear ANI discontinuity among the 13 genomes of Eimeria: >99.91% or < 91.08% (Fig. 3d, e), suggesting that ANI was also suitable for Eimeria. For Eimeria, ANI > 97.00% and < 92.00% were considered intraspecies and interspecies boundaries, respectively. These boundaries of Eimeria are much clearer and greater than those of prokaryotes (with ANI > 95.00% and < 95.00% as intraspecies and interspecies boundaries, respectively), suggesting that intraspecific genetic conservation and interspecific genetic divergence of Eimeria are greater than those of prokaryotes. In addition, the ANI results of the genome in this study further confirmed that the three Eimeria species (E. lata, E. nagambie, E.zaria) discovered in 2021 are new Eimeria species [100]. Intriguingly, the ANI scores of E. tenella and E. necatrix were 91.08%, and the two species had similar virulence intensities and were the most closely related. Therefore, ANI scores for E. maxima and E. lata were 90.63%, suggesting that E. maxima and E. lata may be closely related to each other and have similar biological functions.

Based on the interspecific collinearity analysis, it was evident that the collinearity between the Eimeria species was low, indicating significant differences in chromosome structure, which is similar to previous research [14] (Fig. 4b). In addition, ignoring the fact that the E. tenella genome contains 45–55% repetitive sequences, we believe that differences in parasitic sites, species evolution, and pathogenicity may be one of the reasons for this result. Our research revealed minimal disparities in gene content within comparable regions of C. parvum and C. tyzzeri, primarily involving minor structural variations such as small translocations and inversions. However, large fragments have been rearranged in the genes of C. parvum and C. muris (unpublished data). The parasitic site of E. tenella is the cecum, and that of E. praecox is the first third of the small intestine. Additionally, E. tenella and E. praecox had a relatively long evolutionary distance from each other, and E. tenella and E. necatrix diverged approximately 192.38 Mya (Fig. 4c). Moreover, previous research has shown that synteny between the genomes of E. tenella and E. necatrix is extensive, but that between the genome of E. tenella and those of E. maxima and E. acervulina is notably less, which also supported this result [14]. Finally, we believe that more genomic studies on Eimeria are needed to better elucidate the synteny among their chromosomes and to confirm our hypothesis.

Phylogenetic analysis of protein sequences confirmed the close relatedness of C. cayetanensis to Eimeria spp. and between Eimeria chicken species, which was consistent with other studies [14, 77, 79, 101]. Our comparative analysis revealed that E. tenella was derived from a common ancestor of C. cayetanensis around 231.48 Mya (Fig. 4c). Thus, C. cayetanensis is similar to E. tenella in terms of genome organization, metabolic capabilities, and potential invasion mechanisms. We also investigated the differences between the seven Eimeria spp. that infect chickens. The phylogenetic relationship between Eimeria spp. appears to be related to their pathogenicity. E. tenella and E. necatrix with high pathogenicity clustered in a small branch (diverged approximately 31.54 Mya), E. brunetti and E. mitis with certain pathogenicity clustered in a small branch (diverged approximately 21.02 Mya), with low pathogenicity of E. maxima and E. acervulina, E. praecox with little or no pathogenic were in three separate branches (Fig. 4c). The collinearity results of Eimeria spp. from other studies and in the present study all supported this phylogenetic relationship [14] (Fig. 4b).

Transcription factors play major roles in the transcriptional regulation of developmental stages in eukaryotes. As apicomplexan parasites, Eimeria spp. have complex life cycles that are characterized by several differentiation stages reflected in transcriptome changes [102]. Despite extensive research on ApiAP2 transcription factors in apicomplexan parasites, such as Plasmodium spp., T. gondii, and Cryptosporidium spp [103, 104, 105, 106, 107]., their functions in Eimeria spp. have not been extensively studied to date. Previous research showed that EnApiAP2 plays an important role in the growth, development, and sexual evolution of E. necatrix [108–109]. And AP2 (ETH2_0411800) is not essential for the growth and development of E. tenella [110]. Our results showed that the AP2 transcription factor gene family not only expanded but may also be under diversifying selection, which suggests that the AP2 gene family could be important for host-parasite interactions (Fig. 5c). We also identified 284 AP2 transcription factors of chicken Eimeria spp. using a bioinformatics approach, and a phylogenetic analysis of AP2 domain sequences showed that Eimeria spp. clustered in different clades, which is consistent with previous research (Fig. S3 and Table S4) [111]. The ETH2_1513500, ETH2_0940300, and ETH2_0604000 genes were found to be mainly expressed during the unsporulated, sporozoite, and merozoite stages, respectively, indicating that it is a sporogony and asexual reproduction stage-specific gene in E. tenella (Fig. 5f). Most AP2 genes were significantly expressed during the asexual stage, suggesting that the AP2 gene family may play an indispensable role in regulating the growth and development of E. tenella.

Compared to a previous study [110], the number of identified AP2 protein family member was similar; however, there are some differences in the expression dynamics results (Table S3). For example, in this study, 17 genes were identified as highly expressed in the unsporulated stage, which is three more than in previous study [110]. Similarly, the number of highly expressed genes in the sporozoite stage (21) is significantly higher than the 6 reported previously, whereas the number of genes expressed in the gametocyte stage (5) is much lower than the 15 reported in earlier studies (Fig. 5f) [110]. We believe that the differences in expression dynamics results may be attributed to various factors, such as sample preparation, library construction, and the choice of sequencing platforms. Nevertheless, the findings from multiple studies on the expression of the EtAP2 gene family provide a solid foundation for further in-depth functional research. Therefore, future studies on EtAP2 gene expression and function will require greater focus and involvement from researchers.

Recently, significant advancements have been achieved in the research of the functional role of the Myb gene family within the T. gondii, P. falciparum, C. parvum, and Giardia intestinalis genomes [112, 113, 114, 115]. Our results showed that the Myb transcription factor gene family may also be under diverse selection. However, there are no data on the Myb gene family in the Eimeria species. In the present study, the number of genes containing Myb domains in Eimeria varied from 4 to 12 (Table S4). There was a negative correlation between the number of Myb genes and the genome size of Eimeria spp. of chickens. Through the Myb gene phylogenetic tree consisting of Eimeria spp. of chicken, we noticed that the Myb genes of Eimeria were scattered among many groups, suggesting that they may not have evolved through genome-wide replication (Fig. S4). The distribution of Myb genes across multiple branches indicates that these genes may have undergone a diversified evolutionary process in different species of Eimeria. At the same time, it may suggest that the Myb genes in different Eimeria species have functionally diverged, potentially adapting to different ecological environments or host-specific requirements. Further findings suggest that the EtMyb gene family is differentially expressed at dramatically different life stages in E. tenella and may act as transcriptional regulators for the progression of E. tenella throughout the life cycle. The significant expression of the five EtMyb gene families during the sporozoite stage and their subsequent decrease in expression after this stage suggests their potential role in regulating genes critical for the early stages of E. tenella development and host infection. This stage-specific expression pattern indicates that these transcription factors may be essential for processes like sporozoite activation, host-cell invasion, or adaptation to the host environment. Understanding this regulatory mechanism could provide insights into the molecular basis of the parasite’s lifecycle and help identify potential targets for interventions to disrupt the infection process.

Conclusion

In summary, we developed a platform for whole-genome, third-generation sequencing of a single oocyst and generated the genome at the chromosome level. This provides an effective method for WGS of more than 1500 Eimeria species for which population oocysts cannot be obtained. Furthermore, we effectively prove that the genome obtained from a single oocyst of Eimeria is of high quality and accuracy. Through comparative genomics and transcriptomic analysis, we understand the genome characteristics and have identified AP2 and Myb gene families that may perform roles in various biological processes. It lays a foundation for the later function mining research.

Technical validation

The assembly was evaluated using two criteria: mapping of long sequencing reads and BUSCO assessment. PacBio HiFi and ONT long reads were aligned using minimap2 v.2.24. The mapping rates for the HiFi and ONT reads were 99.61% and 99.24%, respectively. Moreover, presence of highly conserved eukaryotic orthologs via BUSCO (Table 1). Overall, these assessments independently confirmed the accuracy and completeness of genome assembly.
