Genome-wide identification and analysis of GH1-containing H1 histones among poplar species

BMC Genomics volume 26, Article number: 287 (2025) Cite this article

Abstract

Histone H1s are basic nuclear proteins, which played key role in the binding of DNA and nucleosome, eventually the stability of eukaryotic chromatin. In most species, H1s possess an evolutionarily conserved nucleosome-DNA binding globular domain (GH1), which is conserved between species, especially in mammals. However, there is limited information on the phylogeny, structure and function of H1s in poplar. In the present research, 21 GH1-containing proteins found in Populus trichocarpa were classified into three subgroups (H1s, Myb (SANK) GH1 and AT-hook GH1) based on their domains. The Populus H1 proteins contained lysine-rich N-, C-terminal tails and a conserved GH1 domain, particularly the characteristic amino acids in the helix and strand structures of the five H1 subtypes. The phylogenetic and structure diversity analysis of GH1 proteins across different Populus species and model plants revealed three conserved subgroups with characteristic amino acids. The variation in the number of members across the five subtypes was consistent with the evolutionary relationships among Populus species. The conserved characteristic amino acids among same Populus subtype can be served as markers for subtype identification. Furthermore, the abundance analysis of H1s in Populus indicated their unique functions in young tissues and stages, which may be related to DNA methylation. The consistent expression pattern of H1 across Populus species was in accordance with collinearity pairs. Present analyses provided valuable information on the diversity and evolution of H1s in Populus, advocating further research of H1s in plants.

Peer Review reports

Introduction

Eukaryotic DNA packed with histones in nucleosomes, constitutes the basic chromatin organization that shapes the 3-dimensional structure of the genome and gene expression [1]. Unlike the core histones (H2A, H2B, H3 and H4), histone H1 links the nucleosomes to DNA and protects the linkage of linker DNA and nucleosomes [2, 3]. Linker histones (H1s) bind to nucleosomes via electrostatic interactions, is essential for the stabilization of eukaryotic chromatin structure, and folding and compaction dynamics of nucleosome [4, 5]. Histone H1, conserved in higher eukaryotes, contains a tripartite structure including a conserved central globular domain (GD), a short N-terminal domain (NTD) and a long C-terminal domain (CTD) [6]. Unlike core histones, H1 is often highly variable in terms of the number of variants (or subtypes), and sequence divergence among different eukaryotes, or cell types [7]. For instance, 12 H1 variants with different expression patterns have been reported in different tissue/ cell types in human and mice [1, 8]. The distribution density of H1s and the binding or unbinding status of H1s and DNA, in particular, broadly affect the opening/ closing dynamics of chromatin accessible regions and regulate gene expression [9, 10].

In plants, the subtypes and functions of different H1s have been studied. Three Arabidopsis H1s harbored a conserved GD, similar to those in animals, but displayed low sequence similarity among the subtypes (H1-1, H1-2 and H1-3) [11]. Five linker histones identified in castor bean presented conserved structure (GD) but different sequences [12]. Plant H1s can also regulate gene expression and plant growth through epigenetic mechanisms. In Arabidopsis, H1 regulates transcriptional silencing of genes and transposable elements (TEs) by targeting methylated DNA sequences, altering nucleosome organization, and modifying the methylation levels of TEs [13, 14]. H1s can assist H2A.W in promoting chromatin compaction, maintaining the density of heterochromatin, and preventing DNA methylation in Arabidopsis [15], while its deficiency affects seed dormancy, flowering time, lateral root formation, stomata development, and callus formation, mediated by influence heterochromatin structure, histone acetylation, and methylation [16]. Overexpression of Arabidopsis H1 in tobacco induced chromatin structural changes, affecting genes associated with developmental processes [17].

H1 histones also play important roles in plants under stress conditions. The function of different H1 subtypes are various. The interaction between Pin1 and histone H1 can regulate the residence time of phosphorylation to affect the stabilization of chromatin, which plays an important role in pathogen response [18]. Loss of H1s can activate pericentromeric highly DNA-methylated TEs under heat stress to influence plant heat stress resistance [19]. H1.3 (a subclass of minor H1 variants), is required for DNA methylation and stomatal functioning under normal or water-deficient conditions [4]. In addition to growth regulation and stress response, H1s are involved in the plant reproductive development. The histone H1 depletion during Arabidopsis male gametogenesis leads to activation of TEs by relaxing heterochromatin through DEMETER-directed DNA demethylation [20]. Histone H1 can influence gene imprinting in Arabidopsis via DNA methylation changes in gene promoter regions (MEA, FWA, FIS2) in the endosperm [21]. The suppression of H1 expression in Arabidopsis can influence DNA methylation patterns and heritable development [22].

There are numerous evidences on the importance of histone H1, which varied among subtype the subtypes, however, limited information is available on features of linker proteins between different species. Genome-wide identification and characterization analysis was an effective method to begin exploring the subtypes and functions of linker proteins, which are structurally conserved, but differ in types, numbers, and functions [23]. Poplar, a model tree species, possess significant economic and ecological values, including fiber, timber, biofuel, bioremediation, and animal feed [24]. In this study, we identified 21 GH1 domain proteins in P. trichocarpa, which were grouped into three subtypes, similar to Arabidopsis thaliana homologs. The distribution of GH1 members across different Populus species (39 in Populus euphratica, 44 in Populus alba, 39 in Populus tomentosa, 23 in Populus deltoids) was consistent with plant evolution. The H1 showed higher abundance of hydrophilic amino acids (Lys and His) in GD, especially between helices and strands and variability among H1 members, which ensured their function in DNA binding. All poplar species contained five H1 subtypes with characteristic recognition sites, however these may be associated with distinct functions. The expression analysis revealed role of H1s in plant primary growth, which may be associated with cell division proliferation and DNA methylation. Overall this study provides several insights into different aspects of poplar H1s, advocating further investigations into the functions of H1s in plants.

Results

Genome-wide identification and characterization of histone H1 proteins in P. trichocarpa

Genome-wide similarity search of P. trichocarpa using Arabidopsis H1 proteins identified 21 P. trichocarpa proteins containing the conserved GH1 domains (Table 1). In addition to the GH1 domain, AT-hook and Myb domains were also present and used for sub-categorization of some GH1 proteins. The P. trichocarpa 21 GH1 proteins were classified into three subgroups, i) H1 subgroup (9 members) containing conserved GH1 domain, flanked by unstructured NTD and CTD tail, typical structure of H1, except protein Potri.005G069700 with long CTD, ii). Myb (SANK) GH1 subgroup (6 members) containing an additional Myb (SANK) domain in the NTD and a Coiled Coil domain in the CTD, and iii). AT-hook GH1 subgroup (6 members) containing multiple (5–8) AT-hook motifs in the CTD along with the GH1 domains towards NTD (Fig. 1, Table 1).

Table 1 Protein characteristic of GH1 proteins in P. trichocarpa
Full size table
Fig. 1
figure 1

Protein sequence alignment, phylogenetic tree, and domain structure display of GH1 domains in all GH1 proteins of P. trichocarpa. A Alignment of amino acid sequence of GH1 domains. The sites with asterisks or arrows above are the putative conserved basic binding sites of H1 proteins. B Neighbor-joining phylogenetic tree and domain architecture of GH1 domain proteins in P. trichocarpa. Phylogenetic tree was built with protein sequences of GH1 domains of P. trichocarpa GH1 proteins using MEGA 5.05 (bootstrap values of 1,000 replicate). C 3D model and conserved binding residues (in red) in GH1 domain of Potri.002G043100 using I-TASSER. Potri.002G043100 model was built using 4qlc.1.K template and 3.50 Å X-ray method with 0.39 sequence similarity, 0.26 coverage, 60–130 range

Full size image

To explore the DNA binding function of GH1 domain in linker histone, the structure features of identified GH1 proteins were analyzed. All the GH1 proteins contained GH1 domain ranged from 70 to 72 amino acids in length (Table 1). The sequence analysis of P. trichocarpa GH1 proteins and the representative protein 3D structure revealed the presence of three Helixes (Helix I, II and III) and β-strand, which were typical characteristic of the GH1 domain in linker histones (Figs. 1, and 2). At the junctions between helices and strands, many hydrophilic amino acids were detected. The conserved His5 (Helix I) and His38 (Helix II) (as screen in Potri.002G043100) were located near the duplex DNA, consistent with the recognized helix and strand structure in the GH1 model (Fig. 1A, FigS1). Additionally, conserved basic residues such as Lys20 and Lys22 (β-strand), Lys32 (Helix II), and Lys37 (3’ end of Helix II), Lys49 and Lys56 (Helix III), Lys66 and Lys73 (β-hairpin) were identified in the H1 of P. trichocarpa (Fig. 1A, FigS1). The 3D model of the GH1 domain showed that all conserved residues were located on the surface (FigS1C), facilitating DNA binding of H1. The GH1 domains of other two GH1 subgroup proteins contained fewer conserved residues, even with no conserved residues (Fig. 1A).

Fig. 2
figure 2

Sequence and phylogeny analysis of H1 in Populus. A Maximum likelihood phylogenetic tree based on protein sequences of the GH1 domain of Populus H1 proteins. B Amino acid sequence alignment of GH1 domains of Populus H1. The sites in the red boxes are conserved binding site residues in H1.1, the sites in the yellow boxes are conserved binding site residues in H1.2, the sites in the blue boxes are conserved binding site residues in H1.4, the sites in the green boxes are conserved binding site residues in H1.3, the sites in the orange boxes are conserved binding site residues in H1.5

Full size image

Except for the long GH1 protein Potri.005G069700, sequence analysis identified only 8 H1 proteins containing lysine-rich NTD and CTD (mostly over 30%), which may facilitate their DNA-binding function. The lower lysine content in Myb (SANK) GH1 and AT-hook GH1 may be insufficient for the DNA-binding function of the GH1 domain (Table 1).

A neighbor-joining (NJ) phylogenetic tree was constructed by aligning the protein sequences of 21 GH1 protein domains from P. trichocarpa (Fig. 1). Except for the long GH1 protein Potri.005G069700, the other GH1 proteins were placed into three subgroups, i) eight H1 typical GH1 domain proteins, ii) six Myb (SANK) GH1 proteins, iii) six AT-hook GH1 proteins (Fig. 1B). Based on the evidence above, we considered the 8 GH1 domain contained to be the true linker histone H1s in P. trichocarpa. The distinct separation in phylogeny and structure of these GH1 domain proteins indicated the differentiation of H1, Myb (SANK) GH1 and AT-hook GH1, aiding in the identification of linker histones.

Variability of histone H1 proteins among different Populus species

To investigate the extent of divergence of histone H1 proteins in Populus, the GH1 proteins were also identified in P. euphratica, P. alba, P. tomentosa and P. deltoids (Table S1). The lengths of GH1 domains ranged from over 50 to less than 72 amino acids in Populus species (Table S1). Full-length sequences of 166 Populus GH1 proteins (39 in P. euphratica, 44 in P. alba, 39 in P. tomentosa, and 23 in P. deltoids) and three Arabidopsis H1s were utilized to construct a maximum likelihood (ML) phylogenetic tree, and classified into three main subgroups: H1s, Myb (SANK) GH1, and AT hook GH1, except abnormal H1 (FigS2). Similar subgroups were also identified in model plants (FigS3, Table S2). The distribution of GH1 subgroups varied among Populus species. Key differences include that P. alba had a relatively large number of AT—hook GH1s (25), while P. euphratica had a notably high count of Myb (SANK) GH1s (22). P. tomentosa had the most H1s (14) among the species mentioned. This diverse distribution of GH1 proteins across Populus species may be related to their evolutionary history (FigS4), potentially indicating functional differences among these species.

Sequence and phylogenetic analysis revealed that all Populus species possess abnormal H1 proteins, characterized by a long C-terminal tail and low lysine content. The number of abnormal H1 variants varied among Populus species, with most species retaining one variant, except for P. alba (3 variants) and P. tomentosa (2 variants) (Table 2). The abnormal H1 proteins formed distinct phylogenetic branches compared to typical H1 proteins, highlighting their divergence (FigS2).

Table 2 Different GH1 subgroups of different Populus species
Full size table

Sequence analysis of Populus H1 identified the conserved GH1 domain, which included three characteristic helices and a β-strand structure (Fig. 2). The GH1 domain sequences from five Populus species classified them into five distinct subtypes (Fig. 2). The Populus H1 proteins were categorized into five variants, designated as H1.1, H1.2, H1.3, H1.4, and H1.5, with the exception of P. euphratica, which lacked H1.4 subtypes (Fig. 2, Table 2). H1.1, conserved in A. thaliana, was present in all Populus species. P. alba and P. euphratica had two H1.2, more than other species. H1.3, involved in plant abiotic stress responses, was unevenly distributed. H1.5 was rare in most Populus species, except P. tomentosa with the largest genome.

Through sequence analysis, we identified conserved hydrophilic residues in the Populus GH1 domains (Fig. 2). The 10 putative DNA binding residues in the histone linker H1 identified in P. trichocarpa (Fig. 1A) were also conserved across H1.1 subtypes in different Populus species (Fig. 2). The number of these conserved H1.1 proteins varied among different Populus species: P. trichocarpa, P. alba, P. euphratica, and P. deltoids each had two H1.1 protein, while P. tomentosa had four. In addition to the conserved hydrophilic sites, characteristic sites of H1.1, such as Glu8, Phe52, His53, and Gly68, were also identified (Fig. 2). The second group H1 proteins in Populus had conserved Lys-/Arg- residues in helix II, helix III and the β-hairpin structure, but His5 and Lys22 were replaced by Tyr5 and Arg22, respectively (Fig. 1, Fig. 2). The number of H1.2 proteins was low: P. trichocarpa, P. deltoids and P. tomentosa each had one, while P. alba and P. euphratica each had two. These H1.2 proteins were identified by their characteristic sequences Ser5, Phe6, Val8, and Ser11 (Fig. 2). The forth group of H1 proteins were conserved, with His5, Lys22, and His32 replaced by Tyr4, Arg21, and Gln37, respectively. All H1s in this group, except for those with missing sequences, had a mutation at the His32 site (Fig. 2). P. trichocarpa, P. deltoids, and P. alba each had two H1.4 proteins, while P. tomentosa had three (Table 2). They also had characteristic conserved residues at Ser39 and Asn60 (Fig. 2). The third group of H1 proteins had a conserved substitute of Lys38 for Asn39 (Fig. 2). All H1.3 proteins had lost sequences at the N-terminals and had a conserved substituted of Lys22 for Glu21. The number of H1.3 proteins varied: P. euphratica, P. trichocarpa and P. alba conserved each had two; P. deltoids had three, P. tomentosa had four. The characteristic sequences of H1.3 included Gln9, Asn19, Pro26, Tyr32, Met33, Ala39, Val40, Ile49, Asn56, Ser57, Ala58, Ile66, Arg67 and Ala68, which were highlighted in green boxes (Table 2). The fifth group of H1 proteins had substitutions of Leu4, Arg21, Arg31 and Tyr37 for His5, Lys22, Lys32 and His38, respectively (Fig. 2). P. euphratica, P. trichocarpa, P. deltoids and P. alba each had one H1.5, while P. tomentosa had two (Table 2). The characteristic sequences of H1.5 included Leu4, Thr16, Pro27, Arg31, Ser44, Val49, Ser51, Glu61, Arg62, Cys66 (Fig. 2). The same H1 subtype in different Populus species may indicate conservation within species. The variation in the number of different H1 subtypes among different Populus species may suggest evolutionary divergence (FigS4). The characteristic sequences in the coding regions of different H1 subtypes could serve as DNA markers for Populus (FigS5).

Collinearity analysis of P. trichocarpa H1 proteins

To detected the origin relationships of H1 from different Populus species, we employed collinearity analysis involving the P. trichocarpa genome and across different poplars. The intraspecific collinearity analysis of P. trichocarpa H1 predominantly distributed among members of the same H1 subtypes. However, some collinearity pairs were also observed between H1.1, H1.2, H1.4 members (FigS6). The ka/ks values between P. trichocarpa H1 and their homologs from other Populus species were all less than 1, which indicated that these H1 homologous were undergoing purifying selection (negative selection) (Table S3). Based on the intergenetic collinearity analysis, H1 from five Populus species represented enriched collinearity relationships with P. trichocarpa H1 (Fig. 3). The collinearity analysis revealed a distinct pattern among H1 subtypes. Collinearity pairs were predominantly and uniformly enriched within the same H1 subtypes, indicating a high degree of genomic conservation at the subtype-level. This suggests that genes within the same H1 subtype may have evolved in a more coordinated manner. Moreover, we also observed the presence of collinearity pairs distributed across different H1 members, specifically among H1.1, H1.2, and H1.4. As detailed in Table S3, these inter-subtype collinearity relationships imply complex evolutionary connections between these particular H1 variants.

Fig. 3
figure 3

Collinearity analysis of poplar H1. Orange bars represent chromosomes of P. trichocarpa, green and black represent chromosomes or scaffolds of other poplars. Red lines connect collinear H1 genes, and gray background lines represent all collinear gene pairs between genomes. Species names are marked on the left side of the chromosomes

Full size image

Tissue-specific expressional analyses of P. trichocarpa GH1 proteins

We retrieved publicly available transcriptomic data to explore the expression profiles of histone H1 genes at different development stages and in various tissues in P. trichocarpa. As shown in Fig. 4 and Table S4, the three subtypes of GH1 proteins exhibited distinct expression patterns, with H1s demonstrating higher expression levels. H1.1, H1.2 and one H1.4 variant (Potri.010G076800) exhibited high expression levels across all the examined tissues. H1.3 displayed high expression levels in young plant tissues, particularly in dormant buds and young leaves. One H1.4 variant (Potri.008G162300) and H1.5 exhibited consistently low expression levels throughout the developmental stages, except in young leaves and root tips. The atypical H1 variant (Potri.005G069700) also exhibited low expression level across all tissues. The differential expression of histone genes was consistent with the subgroup members, especially H1.1, H1.2 and H1.3. The high enrichment in young tissues suggests that H1 plays a crucial role during periods of rapid growth. The main proteins related to DNA methylation also presented similar expression pattern during different tissues (FigS7).

Fig. 4
figure 4

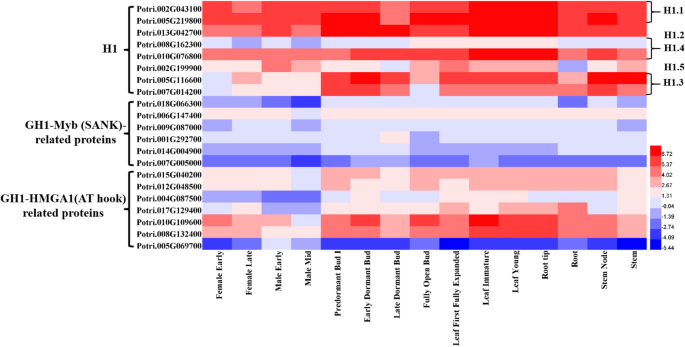

Heatmap of expression profiles of GH1 proteins in P. trichocarpa. Expression data is based on log2(FPKM) values from Phytozome 13. Female early: spring female plant; female late: winter female plant; male early: spring male plant; male mild: winter male plant; predormant bud 1: bud in winter; early dormant bud: bud in late winter; late dormant bud: bud in spring; fully open bud: bud in late spring; leaf first fully expanded: first opened leaves; leaf immature: normal growth leaves; leaf young: bottom leaves; root tip and root; stem node and stem

Full size image

Expressional analyses of H1 proteins in different Populus species

From the expression data of drought stress and recovery treatment across different tissues of P. alba, we observed distinct expression patterns of H1 proteins (Fig. 5A). In general, histone H1 expression patterns showed distinct characteristics across different conditions and species. In drought-recovery and normal tissues, certain H1 variants maintained stable low expression, such as one H1.2 (XP_034908057.1) and H1.5. Conversely, H1.1, H1.3, and one H1.4 (XP_034930896.1) exhibited high expression levels. Additionally, one H1.4 (XP_034925135.1) and one H1.2 (XP_034908059.1) accumulated under specific conditions, suggesting specialized functions.

Fig. 5
figure 5

Heatmap of expression profiles of H1s in P. alba (A), P. deltoids (B) and P. euphratica (C). Expression data was obtained from RNA-seq analysis using raw data from the NCBI database with accession numbers reported in reference articles. Log2(FPKM) values were used for the heatmap

Full size image

When considering species-specific H1 expressions, P. deltoids presented unique patterns. H1.1, H1.2, and two H1.3 variants were highly induced under biotic stress and in developmental tissues, particularly in active buds, indicating their crucial roles in early growth processes. Meanwhile, H1.5, one H1.3, one H1.4, and abnormal H1 showed low expression across various treatments. One H1.4 (Podel.10G072000.1.p) has low expression during the stress stage but accumulated in the early growth phase (Fig. 5B, Table S4).

In P. euphratica, one H1.1 (XP_011028747.1) and one H1.3 (XP_011043228.1) were induced by all treatments, highlighting their significance in both stress responses and development. XP_011025929.1 (H1.4) was highly induced in most cases, except in seeds. On the contrary, XP_011038552.1 (H1.2), XP_011042192.1 (H1.5), and abnormal H1 (XP_011031098.1) were inhibited. XP_011026031.1 (H1.1) and XP_011038551.1 (H1.2) had low expression levels, except in growth-stage tissues. XP_011025929.1 (H1.3) accumulated during both stress and growth, and these expression changes implied differential gene functions (Fig. 5C, Table S4).

Expressional verification of poplar H1 proteins

To investigate whether H1 proteins respond to different stress and growth stage, we collected tissues from different growth stages and stress treatment samples of P. yunnanensis (which is evolutionary closely related to P. trichocarpa) [25], and analyzed the expression changes of eight H1 genes using qRT-PCR. As shown in Fig. 6A, six out of the eight H1 genes exhibited significant expression changes. In contrast to EF1(control), Poyun10755and Poyun30287showed no detectable expression during any of the experimental growth stages as represented of their homologs (Potri.002G199900, Potri.007G014200) in P. trichocarpa (Table S4, Table S5). Four H1 genes, including Poyun12377(H1.1), Poyun13213 (H1.1), Poyun23177 (H1.4) and Poyun24440 (H1.2) showed high expression levels during the pre-germinated bud stage. Poyun14213 (H1.3) displayed differential expression across growth stages, with higher expression levels observed in young tissues. The expression of Poyun16041 (H1.4) was significantly higher during young stages, except in old leaves. All H1 genes were significantly induced by Abscisic Acid (ABA), except for Poyun10755 (H1.5, Fig. 6B). Under salt and cold stress conditions, the expression of most H1 genes was significantly inhibited. With the exception of Poyun14213 (H1.3), the expression of most H1 genes was inhibited under drought stress. These results suggested that most H1 genes may play distinct roles in young growth stages, tissues, and stress responses at the transcriptional level.

Fig. 6
figure 6

Relative expression pattern of H1 in P. yunnanensis. A Relative expression pattern of H1 on different growth stages in P. yunnanensis. B Relative expression pattern of H1 under different stress and treatment in P. yunnanensis. EF1 (Poyun37990) was used as an internal control. Data are means of three biological replicates, and error bars represent ± SE from three independent experiments, each performed with 2–3 leaves from three separate plants. Asterisks denote significant differences determined by the LSD test. Specifically, * indicates p < 0.05 (significant difference), and ** indicates p < 0.01 (highly significant difference)

Full size image

Discussion

Histone protein, H1 play key role in packing of DNA into nucleosomes and maintenance of the chromatin structure [4, 5]. Consistent with earlier analyses of linker histones in Arabidopsis and castor bean [12, 26], the subgroups of Populus GH1 proteins can be classified as H1s, Myb (SANK) GH1, and AT-hook GH1 (Fig. 1, Table S1). The subtype composition may be influenced by post-translational modifications (PTMs), which modulates chromatin structure, and affects transcriptional status of genes during normal and disease conditions in mammals and plants [8, 27, 28]. The phylogenetic tree of P. trichocarpa GH1 proteins and other plants showed sub-groups specific to H1s, Myb (SANK) GH1, and AT-hook GH1 related proteins (Fig. 1, Table S1, FigS1). Furthermore, the classification of GH1 protein subtypes also suggested conserved nature of H1 proteins across different plant genera (FigS2, FigS3, Table S2).

The analyses of protein sequences and conserved motifs revealed that all GH1 proteins and H1s harbored GH1 domain, which was relatively conserved during plant evolution (FigS3). The H1 proteins showed same domain architecture as in other eukaryotes [29]. In addition to the conserved GH1 domains, Populus H1s showed diversity in N- terminal and low complexity domains C- terminals. The N-terminal and C-terminal regions of Populus H1s play crucial roles in the protein’s interaction with DNA. The observed diversity in these regions is likely to be associated with the kinetic properties of DNA binding, which may lead to variations in how quickly and tightly the H1 proteins bind to DNA [29].

The long GH1 protein Potri.005G069700, with low lysine content, a long C-terminal tail, and aberrant DNA binding subunits (Table 1, Fig. 2), may belong to a special category of H1, which may be evolutionarily important across all Populus species. These aberrant H1 proteins were generally maintained as a single copy among the Populus species, except P. alba (3 aberrant H1s) and P. tomentosa (2 aberrant H1s) (FigS2, Table S1). The significance of aberrant H1 proteins required further investigation.

Compared to the GH1 domain proteins found in Arabidopsis, a significantly higher number of 21 GH1 proteins were identified in P. trichocarpa [22, 26], which may be related to certain evolutionary events (Table 1). Presence of similar number of GH1 proteins in P. trichocarpa (21) and P. deltoids (23) reflected their close evolutionary relationship (Table 2, FigS4). These findings supported the prevailing view that H1 domain proteins have evolved throughout plant evolution [25, 26]. Moreover, the number of H1 proteins also showed copy number variations during the course of evolution, as P. tomentosa harbored the maximum number of H1 proteins, which is consistent with its evolutionary position and triploid background (Table 2, FigS4) [25, 30]. P. trichocarpa, P.deltoids and P.alba shared a similar evolutionary relationship and possessed a similar number of H1 proteins, particularly H1.1, H1.4, and H1.5 (Table 2, FigS4) [25]. P. euphratica had lost H1.4, possibly due to its distinct evolutionary trajectory within the Populus genus. As shown in Table 2 and Figure S4, P. euphratica has diverged more significantly from other Populus species compared to the rest of the group. Another contributing factor to this genomic variation might be the relatively low conservation level of H1 proteins. Previous research has indicated that H1 proteins exhibit a lower degree of sequence conservation across different organisms [31]. H1 variants are important for organizing of higher-order chromatin structures, which suggesting the functional differentiation according to the differential number of H1 proteins in poplar [32]. The differential distribution of GH1 proteins among model plants was consistent with their diverse evolutionary histories (Table S2) [26].

Based on the sequence analysis, the H1 proteins of Populus can be classified into five subtypes H1.1, H1.2, H1.3, H1.4 and H1.5. H1.1 and H1.3, which shared same branches with A. thaliana, were named based on the classification and nomenclature in A. thaliana (FigS2) [26]. Although, the number of H1 subtypes varied among different Populus species, the structure and hydrophilic amino acids were conserved. At the junctions between helices and strands, hydrophilic amino acids play a crucial role in DNA binding [33]. All H1.1 subtypes had conserved hydrophilic amino acids (Lys- residues) and recognition sites (His-) (Fig. 2). The H1.2, H1.3, H1.4 and H1.5 subtypes also conserved contained hydrophilic amino acids. Compared to H1.1 subtype, residues within the same subtype members were substituted with the same hydrophilic amino acids (Fig. 2). The conserved characteristic residues have been identified among same subtype members of Populus species, such as four conserved amino acids in H1.1 and H1.2 subtypes, two hydrophilic amino acids in H1.4 subtypes, more than 10 conserved amino acid sites in H1.3 and H1.5 subtypes (Fig. 2). Higher content positively charged residues of H1s were required during the DNA binding of H1 [32]. The characteristic amino acids involved in same H1 subtypes can be used as DNA markers in Populus (Fig. 2, FigS5). Gene duplication events are always associated with evolution in plant, collinearity analysis of H1 revealed the origins and duplication events, particularly among members of same H1 subtype members in P. trichocarpa. The enriched collinearity relationship members were also highly expression during different tissues and stress treatment (Fig. 3, FigS6, Table S4).

Assessing relapse after chemotherapy through the quantitative analysis of histone H1 variants suggesting that protein abundance may infer their function [34]. In this study, H1 proteins of different Populus species exhibited extremely variable expression across various tissues and development stages (Fig. 4–6, Table S4). Most H1 proteins (H1.1, H1.2 and H1.3) maintained high expression levels across different tissues, particularly in young plant tissues, which were similarity to those observed in cucumbers [35]. The atypical H1 maintained low expression levels across all tissues and during stress treatments. Under biotic stress, H1.3 played a lesser role compared to its role during plant growth and abiotic stress, as observed in Arabidopsis [4]. The low expression level of atypical H1 and H1.4 across different Populus species and treatments may be related to the number of evolutionary subtypes [25]. These results suggested the various functions of different H1 proteins during different tissue and stress treatment. The activated H1 members reported on other plants were also active across Populus genomes, revealing their evolutionary similarities (Fig. 6) [36].

The differential expression level of different H1 members may be involved in modulating differential binding affinity or related to differential cellular regulation [29, 37]. The PTM sites of H1s (located in GH domain and tails) for phosphorylation, acetylation, methylation, ubiquitination, and ADP-ribosylation, regulate the function of linker histones [38]. The activity of major DNA methylation enzymes, such as cytosine-specific methyl transferase (CMT2, CMT3) and DNA cytosine-5-methyltransferase 3-related (DRM2) were induced in the young tissues and development stages (FigS7) [39]. The nucleus location of histones and their expression in the centromere of cucumber imply their regulation function [35]. The abundance of DNA cytosine-5 methyl transferase (DNMT), and lysine-specific histone demethylase (LSD1) were significantly increased during young tissues (predormant bud, young leaf, root tip etc.). These results suggested the role of H1s in rapid growth stages, which may be related to DNA methylation (FigS7) [40]. Beyond the immediate connection with DNA methylation in rapid growth, histone variant modifications have broader implications. Histone variant sequence modifications and their expression levels are not only essential for maintaining chromosomal integrity but also have a profound impact on damaged chromatin dynamics [41]. In the context of Populus evolution, the variations in the number and expression of H1s tell a complex story. They are not merely numerical or expression-level changes; instead, they serve as a molecular record of the species’ evolutionary journey. This work not only enhances our knowledge of H1s in plants, but also paves the way for future research on epigenetic regulation, with potential applications in plant breeding and genetic engineering.

Materials and methods

Identification of GH1 proteins

Genome data of P. trichocarpa (black cottonwood), P. euphratica (Euphrates poplar), P. alba (white poplar), P. tomentosa (Chinese white poplar) and P. deltoides (eudicots) were obtained from the Genome data of NCBI (https:// www.ncbi.nlm.nih.gov/genome/?term=Populus). The genome data of P. yunnanensis were obtained from the National Genomics Data Center (NGDC, https://ngdc.cncb.ac.cn) with accession number PRJCA010101 [25]. Histone H1 proteins from Arabidopsis were obtained from the Arabidopsis Information Resource (TAIR, https://www.arabidopsis.org) using the known genes [22, 26, 42].

Sequence similarity searches for P. trichocarpa were performed using the BLASTP function of the standalone BLAST + tool (NCBI-blast-2.7.1 +) with Arabidopsis H1 proteins (At1g06760, At2g30620, and At2g18050) [43]. P. trichocarpa H1 proteins containing conversed domain sequences were used as queries to identify potential Populus proteins in P. euphratica, P. alba, P. tomentosa and P. deltoids with a maximum E-value of 1e-5 (Table S1). The lysine content of histone H1 and terminal domains was calculated using ProtParam (http://us.expasy.org/tools/protparam.html). Subcellular location predictions were obtained using WoLF PSORT [44].

Phylogenetic analysis of GH1 proteins and Populus species

The phylogenetic tree of GH1 domain proteins in P. trichocarpa was constructed using their protein sequences of GH1 domains in MEGA 5.05 (http://www.megasoftware.net/history.php) with neighbor-joining (NJ) method. The phylogenetic tree of H1 proteins in various Populus species was constructed in MEGA 5.05 using the ML method with the protein sequences of their GH1 domains [45, 46]. The phylogenetic tree of H1 proteins from represent plants was constructed in MEGA 5.05 using the ML method with their whole length protein sequences. The bootstrap values reported for each branch represented the percentage of 1,000 replicate trees that included that branch. The rooted species tree of Populus was obtained by the OrthoFinder method with species orthologs, which revealed the evolutionary relationship of Populus species [47]. The collinearity analysis of H1 coding genes was obtained by TBtools [48].

Protein structure and conserved motif analysis of GH1

The functional domains of Populus H1 sequences were analyzed using SMART (http://smart.embl-heidelberg.de/). The lysine content of P. trichocarpa H1 sequences was calculated using ExPaSy (https://www.expasy.org/) [49]. The protein model was constructed using I-TASSER [50]. The most similarity template was used to build 3D models, such as 4qlc.1.K template of Potri.002G043100.

Expression patterns of H1 genes in different Populus species

P. trichocarpa transcriptome data were obtained from Phytozome 13 (https://phytozome-next.jgi.doe.gov/). The data was utilized to analyze the expression profiles of P. trichocarpa H1 genes across various developmental stages (spring, winter female and male plants) and tissues (bud (predormant, early dormant, late dormant and fully open), leaf (first fully, immature and young), root (tip and whole), stem (node and whole)).

The transcriptome FastQ data of various Populus species were download with SRA-Explorer using their accession number reported in the articles (https://sra-explorer.info) [51,52,53,54,55,56,57,58,59,60,61]. To compare the expression of H1 genes across different Populus species under various stress, we compared the transcriptome data to their background genomes. Transcript reconstruction was performed using hisat2 software [62] following alignment with Samtools. The merging of assembled read partitions was evaluated using StringTie [63]. The expression levels of each gene were quantified and normalized using Fragments Per Kilobase of transcript per Million mapped reads (FPKM). The expression heatmaps were constructed based on the Log2 values of the FPKM.

qRT-PCR assays

The P. yunnanensis materials were collected from Kunming (E102。74N25。17), and were well grown in the culture room of Southwest Forestry University, Kunming, under natural conditions. Fresh and healthy dormant buds (late dormant, germinated bud), leaf (unexpanded, young, old), stems (young, old), roots (germinated, young) were collected. For stress treatment: 200 mM NaCl was added for the salt treatment; plants were subjected to 24 h 4℃ for the cold treatment; 1 weeks no-water treatment was executed for the drought treatment; 100 mM ABA was added for the ABA treatment, following the previously reported treatment methods [64]. Total RNAs were extracted from different tissues of P. yunnanensis using the RNAprep Pure Plant Plus Kit (Cat. DP441, Tiangen, Beijing, China), following the manufacturer’s instructions. 1 μg RNA was treated with DNaseI and reverse-transcribed with oligo (dT) and the PrimeScriptTMRT reagent Kit (Takara, Japan). The relative expression levels of individual genes were measured using gene-specific primers by real-time quantitative PCR (qRT-PCR) analysis, carried out in a 20 μL reaction mix containing 1 μL of diluted cDNA template and SYBR Premix Ex TaqII (Takara, Japan) on a Bio-Rad CFX96. The elongation factor 1-alpha (EF1) gene (Poyun37990, homolog of Potri.009G018600) served as the internal control [65]. The internal control and data analysis were conducted according to previously reported methods [64]. The primer sequences used for qRT-PCR are listed in Table S6.

Conclusions

The study aimed to understand the structure, evolution, and function of GH1 proteins and H1s in Populus. Phylogenetic analysis classified GH1 members into three variants, and five H1 subtypes were identified with characteristic amino acids for subgroup distinction. The characteristic amino acids of Populus H1 subtypes can serve as markers for subgroup distinction, enhancing our understanding of H1s’ evolutionary relationships and structural conservation. Expression analysis showed functional differentiation of H1s in primary growth and DNA methylation regulation, indicating specialized roles in Populus development. DNA methylation was found crucial for H1s’ function in tissue development and stress responses. Future work should focus on leveraging the identified characteristic markers for more accurate H1 subtype identification in Populus. Additionally, experiments on these subtypes will further clarify their functions in primary growth and DNA methylation. These efforts will not only deepen our understanding of H1s in Populus but also lay a foundation for broader research on H1s across the plant kingdom.

Data availability

Genome sequences of Populus were obtained from the Genome data of NCBI (https://www.ncbi.nlm.nih.gov/genome/?term = Populus). The genome data of P. yunnanensis obtained from the National Genomics Data Center (NGDC, https://ngdc.cncb.ac.cn) with accession number PRJCA010101. Histone H1 proteins from Arabidopsis were obtained from the Arabidopsis Information Resource (TAIR, https://www.arabidopsis.org). P. trichocarpa transcriptome data were obtained from Phytozome 13 (https://phytozome-next.jgi.doe.gov/). The raw data of Populus transcriptome were download with SRA-Explorer (https://sra-explorer.info) using their accession numbers (SRR064169, SRR064170, SRR12020515, SRR12020518, SRR12020521).

Abbreviations

GH1:

Nucleosome-DNA binding globular domain

H1:

Linker histone

GD:

Central globular domain

NTD:

N-terminal domain

CTD:

C-terminal domain

TE:

Transposable elements

ML:

Maximum likelihood

ABA:

Abscisic Acid

PTM:

Post-translational modification
