Genome of the invasive North American Haemaphysalis longicornis tick as a template for bovine anti-tick vaccine discovery

Abstract

Background

The ixodid tick Haemaphysalis longicornis Neumann, commonly referred to as the Asian longhorned tick, has expanded its range outside of East Asia into countries such as Australia, New Zealand, and the United States. Since the first U.S. detection in 2017, H. longicornis has spread to 21 states and the District of Columbia and has been implicated as a vector of various human and animal pathogens including Theileria orientalis Ikeda genotype, a causal agent of bovine theileriosis. Facilitated in part by the parthenogenetic nature of invasive populations, this tick has become a paramount threat to agricultural rangelands and U.S. livestock production. Reliance on traditional acaricides for vector control selects for resistant individuals, reducing the effectiveness of many chemical tools over time. Thus, focus has shifted to alternative control mechanisms including anti-tick vaccine development. To further such research, here we sequence and assemble a high-quality H. longicornis genome and robust gene catalog from invasive North American ticks while also providing an organ-specific transcriptomic expression catalog and in-depth informatic screening of the tick proteome for potential bovine antigenic molecules with potential utility as vaccine candidates.

Results

Using a combination of PacBio HiFi single-molecule sequencing and Hi-C chromosome conformation capture data, our genome assembly contains 270 scaffolds and spans a haploid genome size of 3.09 Gbp with an N50 of 213.4 Mbp. Gene prediction identified 21,947 high-confidence gene structures containing 96.2% of the core Arthropoda odb10 orthologs. Our organ-specific transcriptome library comprising salivary glands, midgut, ovaries, foreleg and hindleg additionally highlights potential anti-tick vaccine candidates and metabolic pathways to target for future in vitro trials.

Conclusions

Single-molecule sequencing of a triploid, parthenogenetic North American Haemaphysalis longicornis tick allowed for the generation of a highly contiguous genome assembly that, when coupled with extensive transcriptome profiling, resulted in a robust gene catalog containing multiple candidates for further study as anti-tick vaccine antigens.

Introduction

The ixodid tick Haemaphysalis longicornis Neumann (Acari: Ixodidae), commonly known as the Asian longhorned tick, is native to temperate Asia, including China, Japan, the Republic of Korea (ROK), and southeast Russia [1, 2] with invasive populations in Australia, New Zealand, and on several Pacific Islands including New Caledonia, Fiji, Western Samoa, Vanuatu, and the Kingdom of Tonga [3]. While H. longicornis can be found in both bisexual and parthenogenetic populations in its native range, all known invasive lineages in Australia, New Zealand and the United States are exclusively parthenogenetic [1]. It plays an important role in the dynamics of vector-borne diseases and livestock management [4] and has garnered international attention due to the ability to transmit a variety of pathogens: for example, Anaplasma phagocytophilum [5], Borrelia burgdorferi senu stricto [6] and the highly pathogenic Ikeda genotype of Theileria orientalis [7]. In North America, H. longicornis feeds on a diverse range of vertebrate hosts, including birds, sheep, raccoons, opossums, and white-tailed deer [8, 9], potentially enabling the spread of pathogens within and between reservoir species.

The rapid spread of H. longicornis across diverse habitats in the U.S. has raised concerns about its ability to adapt to new environments, potentially including pasture and rangelands where the health of economically important livestock may be at stake. In the United States, it has been transiently identified and isolated on imported livestock for nearly 50 years by the United States Department of Agriculture (USDA) quarantine protocol, but its established presence outside quarantine was only confirmed in 2017 [4, 8, 10]. Subsequent reports have identified populations in 21 states and the District of Columbia (predominantly in the eastern U.S.), with evidence suggesting its establishment as early as 2010 [4]. In August of 2024, H. longicornis were detected on cattle in Craig and Mayes Counties, Oklahoma [11], further accentuating the southerly and westerly expansion of this tick in the direction of the highest cow-calf growing region of the US beef cattle industry [12].

Global economic losses resulting from tick-borne diseases are estimated at US $22–30 billion annually [13, 14], and although acaricides are currently the most effective tick control measure [15], reliance on them can lead to the development of resistant populations [16]. Novel control strategies are thus needed to create comprehensive management programs that do not rely strictly on chemical application. One such technique is anti-tick vaccination, an emerging discipline that involves host immunization with recombinant tick antigens that prime the host to mount an immune response and produce anti-tick antibodies in response to attachment and feeding. Effective vaccination regimens can result in diminished tick feeding, tick mortality, and/or diminished reproductive capacity.

Only two tick vaccines (TickGARD(PLUS)™ and Gavac™) based on recombinant Rhipicephalus (Boophilus) microplus Bm86 midgut antigens have been commercialized. However, both exhibited limited efficacy and TickGARD is no longer marketed, while the availability of Gavac is limited [17]. No such vaccine currently exists for H. longicornis; recent trials aimed at developing such a vaccine involve two approaches: one using Pmy recombinant protein (rPmy; an immunomodulatory protein that inhibits complement activation) and a peptide vaccine designed from the protective epitope (KLH-LEE) [18], and the other utilizing recombinant H. longicornis subolesin (HlSu; a candidate protective antigen involved in several critical pathways) expressed in Escherichia coli [19]. Both trials involved immunization, challenge with female ticks, and evaluation of tick fitness. Results from the Pmy and KLH-LEE trials indicate reductions in engorgement weight, oviposition, and larval hatch, with 60.37% and 70.86% efficacy, respectively. In the HlSu trial, vaccination significantly affected blood-feeding and reproduction, demonstrating 37.4% efficacy as calculated based on reduction in body weight and egg mass [18, 19]. Furthermore, studies on other potential antigens, including triosephosphate isomerase (TIM) in rabbits [20], lipocalins (LIP) in rabbits [21], serine proteinase inhibitors (serpins) in vitro [22], and hemalin in rabbits [23] showed promising results in regard to inducing immune responses and reducing tick infestations. H1ATAQ, a homologue of R. microplus ATAQ in H. longicornis, has also been explored as a candidate. This protein is expressed across tick life stages and organs; interestingly, when used as a vaccine in rabbits, ticks blood-fed for longer, attained a higher body weight, and demonstrated increased egg mass [24].

Selection of vaccine candidates has previously been somewhat haphazard and inefficient. In fact, the current rate-limiting step to anti-tick vaccine development is the a priori identification of protective antigens: many critical factors must be considered to generate effective recombinants for a metazoan organism that encodes > 20,000 genes [25]. Reverse vaccinology, rooted in molecular biology and proteomics, has evolved to take advantage of genome sequences and new –omics and informatics techniques to identify and prioritize candidates that are most likely to be successful [26]. This approach to identifying potential vaccine targets often involves analyzing the genome and derived gene catalog of a target organism to uncover novel antigens and epitopes in silico, facilitating rapid antigen discovery. Pipelines have evolved increasingly discriminatory criteria to narrow the field, incorporating information on subcellular localization, secretion, GPI anchorage, transmembrane helix orientation, and B- and T-cell epitope prediction [14].

Reverse vaccinology works best when there is a complete genome available for the target organism. There are four distinct Australasian H. longicornis genomes currently sequenced, with each presenting significantly different characteristics in terms of contiguity, duplicity, gene count, and completeness as assessed by BUSCO [27] single-copy arthropoda_odb10 orthologs (n = 1,013): 1) the Japan H. longicornis Oita bisexual strain genome [28], consisting of 99,353 contigs summing to 2.48 Gbp with 78.5% of core single-copy orthologs identified (2.7% duplicated); 2) the bisexual HLO strain genome [29] sourced from China with 6,516 scaffolds (3.16 Gbp) and 90.2% of the core ortholog set identified (20.0% duplicated); 3) the New Zealand parthenogenetic strain genome [30] with 34,208 contigs (7.36 Gbp) and 95.1% of core orthologs identified (however, 84.2% were duplicated due to highly redundant and distinct haplotypes in the assembly) and 4) the complete genome of strain HaeL-2018 from China (GCA_013339765; [31]) with 3,885 scaffolds inclusive of 11 chromosomes (2.56 Gbp) and a BUSCO completeness score of 87.5% (2.4% duplicated); the latter represents a marked improvement over existing assemblies and is the only current H. longicornis genome with a predicted proteome, however this proteome contains only 53.6% of the referenced arthropod_odb10 orthologs and thus the utility for functional analyses, epitope identification and comparisons with other ticks are limited. Notably, none of these genomes were sequenced directly from the invasive populations in North America.

Furthermore, having a genome assembly in the absence of other contextual information about tick biology can only take one so far in vaccine development. Reverse vaccinology pipelines work best when the molecular underpinnings of parasite physiology are thoroughly understood and used to hone target selection. A multitude of processes have been suggested as possible candidates for reverse vaccines in ticks, e.g., blood digestion, embryogenesis/fertility, heme metabolism/detoxification, and water balance [32]. However, a robust catalog of full-length and non-redundant gene sequences from each of these pathways – for example, as generated through various transcriptomic analyses—is required to provide the greatest diversity of targets. This can be accomplished by performing RNAseq on material derived from different tick organs. Taking this localized approach is particularly important when considering where tick antigens are mostly likely to be a) recognized by the host immune system and b) accessible to host antibodies during a blood meal. For this reason, the tick salivary glands and midgut constitute particularly appealing places to search for vaccine targets. Tick saliva is essential for feeding lesion development, blood-feeding, and transmission of tick-borne pathogens, encompassing a sophisticated blend of effectors injected into hosts over the course of the feeding cycle [33]. Assorted secreted proteins play a vital role in the tick's survival strategy by countering host hemostasis and immune functions [34,35,36]. The tick midgut is responsible for blood digestion and absorption of hemoglobin through specialized cells [37] and also serves as the primary portal for pathogen entry and proliferation [38]. If a host immune response primed by vaccination were to succeed in disrupting either these secreted salivary proteins or digestive processes in the midgut, tick feeding success could be greatly reduced and thus identifying the proteins produced in each tick organ represents an important first step in the reverse vaccinology process.

Thus, in order to provide resources for a future reverse vaccinology-facilitated approach to H. longicornis control, we have sequenced and assembled de novo a genome from an invasive North American population of parthenogenetic ticks using Pacific Biosciences long-read sequencing and Hi-C chromosome conformation capture protocols. In addition, we employed RNA sequencing (RNA-seq) to generate a robust transcriptome and predicted proteome containing 95.0% of core arthropoda_odb10 orthologs. Using these gene models, we examine gene expression within H. longicornis across a spectrum of organs including the ovaries, salivary glands, midgut, and legs. The predicted proteome was screened for potential antigens using informatic analyses and transcript localization. Through the analysis of organ-specific gene expression profiles, this research extends our understanding of H. longicornis biology beyond the genomic context while also establishing a starting point for the development of anti-tick vaccines to aid in the mitigation of this threat to North American livestock.

Materials and methods

Nuclear DNA extraction and PacBio library preparation

DNA was extracted from a single adult female H. longicornis individual derived from a colony initiated in 2019 from ticks collected in New Brunswick, New Jersey, USA, and maintained at the USDA-ARS Animal Disease Research Unit (Pullman, WA). PCR amplification and sequencing of the mitochondrial cytochrome c oxidase subunit 1 (COX1) locus (not shown) indicated these ticks were of haplotype H1 provenance [39]. The sample was homogenized in a 1.5 mL tube in a liquid nitrogen bath with a liquid nitrogen-cooled pestle. The Qiagen MagAttract HMW DNA Kit (Qiagen, Hilden, Germany) was used to obtain sufficiently high molecular weight DNA. Immediately following homogenization, 200 µL 1X PBS, 20 µL Proteinase K, 8 µL RNase A, and 150 µL Buffer AL were added to the sample. The tube was slowly inverted to mix. The sample was incubated for two hours at 25°C and 900 rpm. Lysate was transferred to a 2.0 mL tube using a wide-bore pipette tip following brief centrifugation. Qiagen’s fresh or frozen tissue protocol was followed, starting with the addition of Buffer MB. All washes and rinses were incubated for 1 min. DNA was eluted with 105 µL Buffer AE and incubated at room temperature for five minutes. Following isolation, genomic DNA was quantified using the Broad Range dsDNA Qubit assay (Thermo Fisher Scientific, Waltham, MA, USA). Size distribution was assessed with the Genomic DNA 165 kb kit run on the Femto Pulse System (Agilent Technologies, Santa Clara, CA, USA). A PacBio SMRTbell library was prepared using the SMRTbell prep kit 3.0 and the associated guide for preparing whole genome libraries (Pacific Biosciences, Menlo Park, CA, USA). The prepared library was bound and sequenced at the USDA-ARS Veterinary Pest Genetics Research Unit in Kerrville, Texas, on four Pacific Biosciences 8M SMRT Cells with a Sequel IIe system (Pacific Biosciences, Menlo Park, CA, USA) beginning with a 2-h preextension followed by a 30-h movie collection time. After sequencing, circular consensus sequences from the PacBio Sequel IIe subreads were obtained using the SMRTLink v11.0 software.

Hi-C Library preparation

A Hi-C (chromosome conformation capture) library was generated using the Phase Genomics Proximo Animal kit version 4.0. Approximately 500 mg of adult female ticks derived from the USDA-ARS colony above were finely chopped and then crosslinked for 15 min at room temperature with end-over-end mixing in 1 mL of Proximo crosslinking solution. The crosslinking reaction was terminated with a quenching solution for 20 min at room temperature again with end-over-end mixing. Quenched tissue was rinsed once with 1X Chromatin Rinse Buffer (CRB). Tissue was transferred to a liquid nitrogen-cooled mortar and ground to a fine powder. The powder was resuspended in 700 µL Proximo Lysis Buffer 1 and incubated for 20 min with end-over-end mixing. A low-speed spin was used to clear the large debris, and the chromatin-containing supernatant was transferred to a new tube. Following a second higher speed spin, the supernatant was removed and the pellet containing the nuclear fraction of the lysate was washed with 1X CRB. After removing 1X CRB wash, the pellet was resuspended in 100 µL Proximo Lysis Buffer 2 and incubated at 65°C for 15 min. Chromatin was bound to Recovery Beads for 10 min at room temperature, placed on a magnetic stand, and washed with 200 µL of 1X CRB.

Chromatin bound on beads was resuspended in 150 µL of Proximo fragmentation buffer, and 2.5 µL of Proximo fragmentation enzyme was added and incubated for 1 h at 37°C. The reaction was cooled to 12°C and incubated with 2.5 µL of finishing enzyme for 30 min. Following the addition of 6 µL of Stop Solution, the beads were washed with 1X CRB and resuspended in 100 µL of Proximo Ligation Buffer supplemented with 5 µL of Proximity ligation enzyme. The proximity ligation reaction was incubated at room temperature for 4 h with end-over-end mixing. To this volume, 5 µL of Reverse Crosslinks enzyme was added, and the reaction was incubated at 65°C for 1 h.

After reversing crosslinks, the free DNA was purified with Recovery Beads and Hi-C junctions were bound to streptavidin beads and washed to remove unbound DNA. Washed beads were used to prepare paired-end deep sequencing libraries using the Proximo Library preparation reagents.

Library quality control

Library fragment size and concentration were determined using TapeStation capillary electrophoresis and quantitative PCR. Prior to production sequencing, library performance was determined by low-pass sequencing, generating ~ 200,000 read pairs of sequencing data on an Illumina iSeq System. Resulting reads were mapped to a reference assembly and analyzed with Phase Genomics’ open-source QC tool, hic_qc (GitHub—phasegenomics/hic_qc: A (very) simple script to QC Hi-C data). Libraries receiving a ‘Sufficient’ quality judgment from hic_qc were advanced to production sequencing and sequenced on four SMRT cells of a PacBio Sequel IIe system.

Genome assembly and gene prediction

PacBio HiFi sequence data were adapter- and quality-trimmed and assembled using HiCanu v2.2 [40] with an estimated genome size of 2.5 Gbp based on the estimate of Jia et al. Haplotigs [31] (or scaffolds comprising redundant haplotypes of our triploid tick) were removed with two successive runs of purge_dups (https://github.com/dfguan/purge_dups) with raw read mappings re-generated upon each run. Further scaffolding of the assembly using the Hi-C short-read data was performed with YaHS v1.2 [41] following the Arima genomics mapping pipeline (https://github.com/ArimaGenomics/mapping_pipeline retrieved April 2024); briefly, Hi-C reads were mapped to the Canu scaffolds using BWA-MEM v0.7.17 (https://github.com/lh3/bwa), screened for chimeras with filter_five_end.pl, and re-paired prior to PCR duplicate removal with Picard Tools v3.1.1 (https://github.com/broadinstitute/picard).

Gene structures were predicted on the Hi-C scaffolded assembly using BRAKER3 v3.0.8 [42]. Gapped short-read mappings of all 12 organ-specific Illumina RNAseq libraries (below) and two libraries generated from eight whole-body adult and twelve whole-body nymphal H. longicornis, respectively, were generated using STAR v2.7.10b [43] and used as evidence by BRAKER3. In addition, the 4.3M protein sequences that compose the Arthropoda OrthoDB v10 ortholog set [27] were used as protein evidence. A set of high-confidence genes was created by mapping all RNAseq data generated (below) to the primary isoform of each predicted transcript coding sequence using BBmap v38.94 (https://jgi.doe.gov/data-and-tools/software-tools/bbtools/) and retaining those with at least one mapped read. Functional annotation of predicted proteins was performed using eggNOG-mapper v2 [44]. In addition, proteins were screened for reverse-vaccine utility using Vacceed v1.1 [45], VaxiJen v2.0 [46], IEDB MHCI and MHCII v2.24 prediction scores [47], and BepiPred v3.0 [48] and selected based on the criteria described below.

Organ dissection and RNAseq library construction

To construct a representative and organ-specific RNA catalog, 114 adult female H. longicornis ticks were collected from the field via flagging in August of 2022 from two sites within Rutgers University, New Brunswick, NJ with dense populations (ASB2: 40.47797, −74.42521 and EcoPreserve: 40.51690, −74.43535); the ASB2 site was sampled to initiate the USDA colony from which the individual was selected for genome sequencing. Both sites have historically harbored ticks predominantly of mitochondrial haplotype H1, however haplotype H2 (currently differentiated by a single SNP within the 612bp cytochrome c oxidase subunit 1 barcoding locus [39]) has been identified at low numbers as well. As we did not assay each of the 114 individuals collected, the possibility that haplotype H2 ticks contributed RNA to the sample exists. This is unlikely to affect the gene prediction process as the hidden Markov model derived from the RNAseq mapping predicts gene structures on the reference assembly directly.

Each individual tick was embedded live in paraffin wax, and the dorsal idiosoma was dissected using a micro scalpel. The ovaries, midgut, and salivary glands were removed and pooled separately in individual microcentrifuge tubes on ice containing RNAlater. In addition, the distal segment of the foreleg (containing the Haller’s organ) and the hind leg were removed and placed in RNAlater. Of the 114 individuals, successful dissections of intact organs were made from n = 99 ticks. Three pools of 33 organs each were created prior to RNA extraction of each using the Zymo Quick-RNA Microprep Kit (Zymo Research, Irvine, CA) and eluted in 7μL of elution buffer. Illumina libraries were generated for each extraction template using the TruSeq RNA Library Prep Kit v2 (Illumina Inc, San Diego, CA) and sequenced on an Illumina MiSeq instrument using a 150-cycle single-end kit. Two RNAseq libraries were also generated from respective pools of whole-body adult (n = 18) and nymphal (n = 25) ticks collected from the ASB2 site (above), homogenized live in Buffer RLT + β-mercaptoethanol on a Qiagen TissueLyser w/ 4mm steel bead and extracted using the Qiagen RNeasy Mini kit (Qiagen, Hilden, Germany). Libraries were prepared as above and sequenced on a 300-cycle kit in a 150 bp × 150 bp paired-end run.

Differential expression analysis

RNAseq reads from each replicated organ-specific library were quality- and adapter-trimmed with BBduk (min. Q-score = 20, length = 50 bp), corrected with BayesHammer (bundled with SPAdes v3.15.5 [https://github.com/ablab/spades]) and mapped to the nucleotide transcripts corresponding to the predicted genes (above) using BBmap v38.94 (minimum nucleotide sequence identity = 95%; reads with multiple top-scoring alignments were excluded) and the read count data was used to generate an input table for the differential expression analysis by DEseq2 v4.0.5 [49] in R.

The raw count data from RNA-seq reads were obtained for each organ-specific library, including the three pools from ovaries, midgut, salivary glands, forelegs and hindlegs collected from 114 adult female H. longicornis ticks. Sample counts were processed to create a sample table associating each sample with its corresponding condition. A DESeqDataSet file was generated from the count data and sample table, and the condition column was converted to a factor with specified levels. DESeq analysis was then performed to estimate size factors and dispersion for each gene, followed by differential expression analysis comparing the conditions. Results were filtered based on adjusted p-values (padj < 0.05) to identify differentially expressed genes in each organ with regard to the others; the ovaries, midgut and salivary glands were used in a three-way comparison, while the foreleg and hindleg were compared exclusively to each other.

Gene Ontology (GO) analysis

We tested for Gene Ontology (GO) enrichment among the set of significantly upregulated genes in each organ using GO_MWU (https://github.com/z0on/GO_MWU; accessed on May 16, 2024). Briefly, the GO terms assigned to each gene by eggNOG-mapper were parsed and divided into a test set (comprising those assigned to the significantly upregulated genes) and reference (comprising the entire gene set). A binary significance measure (Fisher’s exact test) was implemented in GO_MWU to identify over-represented ontologies in the expression data for each organ and grouped by top-level terms Biological Process (BP), Molecular Function (MF) and Cellular Component (CC). The parameters were set to exclude very large and very small GO categories (excluding terms with > 10% of total number of genes [largest = 0.1] and those with less than 5 genes [smallest = 5]) and to merge similar terms based on gene sharing (clusterCutHeight = 0.9). The results were visualized through a hierarchical clustering dendrogram of significant GO categories.

Vaccine candidate screen

To search for gene products that may provide utility for future vaccine candidates, we employed a set of multiple open-source applications. First, the predicted H. longicornis proteome was screened using Vacceed [45] trained with the parasitic immunogens of Goodswen et al. 2022 [50] and run using the nearest-neighbor (nn), k-nearest-neighbor (knn), random forest (rf) and adaptive boosting (ada) classifiers. Any protein with an average ML score of ≥ 0.90 was retained. This set was further analyzed with VaxiJen v2.0 [46] (target organism = “Parasite”, default threshold = 0.5), BepiPred v3.0 [48] (default threshold = 0.15) and the IEDB MHC-I and MHC-II binding predictions to bovine MHC alleles using all possible windows of 8 – 14 amino acids. A BLASTP homology search (e-value = 1 × 10^–5) of each tick protein was performed against the proteomes of Bos taurus (NCBI accession GCA_002263795.3), R. microplus (GCF_013339725.1) and Ixodes scapularis (GCF_016920785.2) to ensure further vaccine candidates did not retain high homology to the existing host (bovine) proteome, and to assess the conservation between our predicted proteins and those of other ticks. The final genes and pathways of interest highlighted here were manually selected for discussion based on the annotation, gene ontology, organ-specific RNAseq count data, and prediction pipeline scores.

Results

Our PacBio HiFi sequencing generated 9.26M reads with a read N50 of 12.68 kbp and summing to 97.65 Gbp (Table 1). The final Hi-C scaffolded genome assembly comprised 270 scaffolds, summing to 3.09 Gbp, with an N50 value of 213.4 Mbp; a total of 13 scaffolds exceeded 100 Mbp in length. The genome assembly has been deposited at DDBJ/ENA/GenBank under the accession JBLBWX000000000. The version described in this paper is version JBLBWX010000000. Gene prediction initially identified 33,071 gene structures within the assembly; removal of those without any evidence of RNAseq mapping (below) reduced this set to 21,947 high-confidence gene structures (Supplemental Table 1). The evaluation of this gene set using BUSCO single-copy ortholog analysis revealed that 96.1% of the core Arthropoda odb10 orthologs were found (94.9% complete, 1.2% fragmented), with 5.7% of those duplicated and 3.9% missing; this score did not change when the initial (unpurged) 33,071 genes were screened in the same manner, indicating that our purging process was not likely to have removed legitimate gene structures. The average predicted CDS (coding transcript), exon, and intron lengths exclusive of UTR were 1,314 bp, 252 bp and 4,143 bp respectively for the high-confidence gene set; by comparison, the most recent assembly of Jia et al., reported average CDS length of 891 bp, exon and intron lengths of 295 and 2,754 bp respectively. We attribute the increased CDS sequence length of our gene set to be reflective of more correct and/or full-length predictions as evidenced by the much higher BUSCO proteome scores.

Table 1 Sequencing metrics for sequencing libraries generated from RNA and DNA of H. longicornis

For gene identification, we generated > 19.3M reads from 18 whole adult H. longicornis ticks and > 19.2M reads from 15 whole nymphs using 2 × 150 bp paired-end Illumina sequencing. For organ-specific expression characterization, a total of 107.7M raw reads were generated from separate 150 bp single-end Illumina RNA-seq runs conducted on triplicate pools of salivary glands, midguts, ovaries, forelegs and hindlegs of the 99 adult ticks dissected above (Table 1; 33 organs per replicate, per organ type). Differential expression analysis revealed significant gene expression differences commensurate with localization between organs (Fig. 1; Supplemental Fig. 1; Supplemental Tables 2 and 3). We identified 2,492 genes significantly upregulated in ovaries, 2,329 in salivary glands, and 1,109 in the midgut (p < 0.05) with respect to the other two organ types; 152 genes were up-regulated in foreleg dissections with respect to the hindleg, and an additional 16 genes upregulated in hindlegs with respect to the foreleg. The gene ontology (GO) enrichment analysis identified many significantly over-represented GO terms associated with these localized genes across organs, discussed below (Fig. 2; Supplemental Figs. 2 and 3; Supplemental Table 4).

Fig. 1

Differential gene expression across H. longicornis organs. Heatmat illustrating gene expression observed across organ types, highlighting genes upregulated in (a) ovaries (as compared to salivary glands + midguts; 2,492 genes), salivary glands (as compared to ovaries + midguts; 2,329 genes), midgut (as compared to salivary glands + ovaries; 1,109 genes), and (b) fore leg – hind leg comparison (168 genes) as revealed through RNA-seq analysis and statistical significance (p < 0.05)

Table 2 Assembly statistics and BUSCO scores for existing H. longicornis genome assemblies and predicted proteomes; the arthropoda_odb10 ortholog dataset was used for BUSCO analyses (n = 1,013 orthologs). The highest contiguity level for each assembly ([S]caffold / [C]ontig) is reported

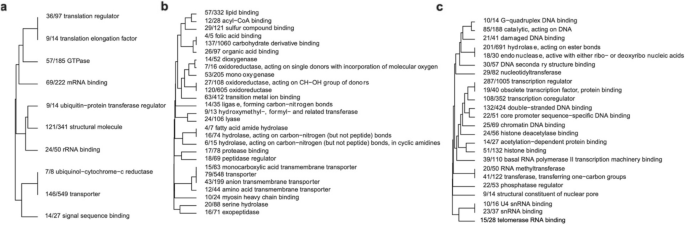

Fig. 2

Gene Ontology Enrichment (GO-MWU) analysis for molecular function (MF) ontology in H. longicornis organ-specific genes. This figure presents hierarchical trees of significantly over-represented Gene Ontology (GO) terms associated with molecular function for genes upregulated in: A salivary glands, B midgut, and (C) ovaries. Remaining ontologies (Cellular Component and Biological Process) are provided in Supplemental Figs. 2 and 3

Salivary glands

The salivary gland gene set was significantly enriched for various Molecular Function (MF) categories, largely related to ribosomal biogenesis, peptide synthesis, and electron transport (MF, Mann–Whitney U-test, p < 0.05), while Cellular Component (CC) ontologies included many related to the rough endoplasmic reticulum and Golgi-associated vesicular transport/protein targeting, cytosolic ribosomes, and the inner mitochondrial membrane. We noted multiple constituents encoded RVT_1 reverse-transcriptase and DDE_Tnp_4 endonuclease Pfam domains of eukaryote provenance, a phenomenon also observed in the sialotranscriptome of Ixodes ricinus [51]. The RVT_1 domain was additionally noted in multiple members of the gene set localized to ovaries and midguts (below), indicating that transposition may have a core function in tick genomes; whether this function pertains to host (eukaryote) derived gene function or the self-proliferation of mobile elements and/or endogenous viral elements [52] remains unknown. Several THAP domain-encoding proteins were noted and likely associated with ribosomal structures, while proteins encoding P450 domains are linked to oxidation–reduction processes (GO:0030684). The 7tm_1 Pfam domain, found in three assigned genes, suggests a role in cellular signaling pathways through its association with G-protein coupled receptor (GPCR) activity (GO:0008135).

Midgut

The gene set over-expressed in the midgut was enriched for MF categories including lipid/acyl-CoA binding, oxidoreductase and monooxygenase enzymes, protease and peptidase regulators, and serine hydrolases. CC categories included many gene products localized to the ER membrane, secretory vesicles, endosomes and lytic vacuoles along with various other ion and organic compound transport functions. Pfam families were identified that contribute to nutrient absorption and detoxification processes; the P450 family, represented by nine genes, is linked to vesicle structures and cellular junctions (GO:0005777, GO:0042175). Additional Pfams, including AMP-binding (e.g., g30548.t1, g29853.t1) and RRM_1 (e.g., g18086.t1, g30419.t1), contribute to metabolic and RNA-binding activities, respectively. The Pkinase Pfam, representing protein kinases, and RRM_1, with RNA recognition motifs, are also involved in nucleic acid binding and transporter activity across various cellular pathways.

Ovaries

The ovary gene set was significantly enriched for MF categories including multiple single/double-stranded DNA binding enzymes, helicases, (endo)nucleases, DNA/RNA polymerases, and transcription factor activity reflecting an emphasis on gene regulation, protein modification, and structural binding activities critical to the reproductive processes in tick ovaries. CC categories included a large number of complexes associated with cellular and DNA replication (nuclear chromosome, pronucleus, meiotic spindle, mismatch repair complex, pole plasm) and transcription (spliceosomal tri-snRNP complex, transcription regulator complex). AMP-binding and AMP-binding_C Pfams, present in six genes, highlight the importance of resource allocation in the ovaries through their involvement in metabolic pathways and ligase activity (GO:0044427, GO:0000228). Similarly, the Mito_carr Pfam supports mitochondrial transport and energy distribution, and Trypsin, part of the peptidase S1 family, contributes to protein degradation and nutrient processing. Finally, the 7tm_1 Pfam, identified in four genes, is associated with GPCR activity (GO:0008135).

Foreleg

The expression data for the foreleg/hindleg comparison was analyzed to identify genes with potential localized expression in the Haller’s organ that contribute to tick chemosensory processes [53]. Due to the small number of upregulated genes (n = 152), we did not perform statistical tests for GO enrichment; rather, we examined the list and annotations manually. Using a protein database comprising the qualified ionotropic receptor (IR) gene set of Ixodes scapularis [54] we performed a BLASTp search with our predicted foreleg proteome and identified top hits to four such IRs: Ir93a (g5615.t1, e-val = 0.0), Ir25a (g5616.t1, e-val = 0.0), Ir107 (g19560.t1 e-val = 0.0) and Ir142 (g19558.t1 e-val = 3.9 × 10^–166); of note, both Ir93a and Ir25a exhibited biased expression in the forelegs of Ix. scapularis in the analysis of Josek et al. [54]. Beyond described ionotropic receptors, we identified an otopetrin domain-containing protein (g18830.t1) encoding a multi-transmembrane proton-selective channel that functions as an acid taste receptor in Drosophila [55]. The top NCBI BLASTp hit for this protein was to a Dermacentor silvarum homolog (“proton channel OtopLc”; XP_037569237.1). Although the alignment spanned the full length of both proteins, the amino acid identity remained low at 81.7%. A second gene encoding an anoctamin calcium-activated chloride channel (g27605.1) was identified with a top BLASTp hit to “anoctamin-4 like” in Dermacentor albipictus (XP_065300563). Anoctamin channels have previously been shown to participate in thermal nociception in insects [56]; however, any function with respect to H. longicornis remains unknown.

Informatic screening of the predicted proteome with Vacceed identified 1,594 proteins with an average ML score ≥ 0.90. Subsequent analysis of these proteins with VaxiJen, BepiPred, and the IEDB MHCI/II binding prediction pipelines provided an annotated list for manual inspection with regard to any potential role in critical metabolic processes and further efficacy as an anti-tick vaccine (Supplemental Table 5; discussed below). It should be noted that the ticks from which RNA was extracted were questing and thus the expression data generated here may not reflect a metabolic snapshot of an actively blood-feeding tick, as would be ideal for deriving vaccines that act during this physiological state.

Discussion

Our single-molecule sequencing of North American H. longicornis ticks yielded a high-quality and contiguous genome and predicted proteome. The arthropoda_odb10 BUSCO scores for the data generated here were notably positive given the triploid karyotype of North American populations, which has resulted in low completeness and/or high duplication of currently available gene sets for this tick [28,29,30,31] (summarized in Table 2). The haploid assembly size of our genome reported here (3.10 Gbp) falls within the range of those currently reported (2.48 – 3.16 Gbp, excluding the 7.4Gbp assembly of [30]), which tend to exhibit larger proportions of duplicated BUSCOs as assembly size increases and genomic haplotypes remain uncollapsed. The earliest assembly [30] for example had high genome BUSCO completeness score of 95.10% but also likely comprised multiple chromosomal haplotypes, as 84.2% were duplicated and the scaffolds summed to 7.36 Gbp; the most recent H. longicornis genome assembly generated using Oxford Nanopore and Illumina data [28] by contrast summed to 2.5 Gbp however encoded 78.50% of core BUSCOs with an additional 13.2% fragmented. As sequencing technologies continue to evolve, so too does the fidelity of the data created; both assembly size and complete gene count are likely to improve as a result by reducing polymorphisms in the overlap graph that arise from sequencing errors (for example, from “noisy” Oxford Nanopore and/or early generation PacBio long read data), and commensurately creating intact, complete gene structures free of artifactual nonsense mutations. To our knowledge, this is the first application of Sequel IIe sequence technology in support of the generation of an H. longicornis genome.

A large number of potential vaccine candidates were predicted based strictly on informatic analyses. We highlighted a diverse set of candidates for future experimentation based on gene expression, annotation, and implication in several major metabolic pathways (cellular morphogenesis, water transport, chitin, and cholesterol metabolism, oogenesis, and neural signaling). As mentioned above, it should be noted that to act as a canonical anti-tick vaccine target, the antigenic determinant should be accessed (usually by cell surface presentation) by the antibody derived during feeding; this aspect remains to be tested for the molecules discussed below.

Among the top vaccine candidates predicted were members of the Innexin [57] and Integrin beta (ITGB1) [58] families (e.g., g17885, g17696, g16011), which have roles in cellular morphogenesis. In arthropods, Innexins are integral membrane proteins that create gap junction channels and hemichannels [59] to facilitate the swift transmission of endocrine signals among adjacent cells by enabling the direct exchange of ions and small molecules [60]. Innexin-like transcripts were down-regulated in the salivary glands of R. microplus ticks that fed on resistant cattle [61]. It was also identified in the salivary glands of the female tick Amblyomma americanum during blood feeding [62]. Integrins are transmembrane proteins composed of linked α and β subunits that act as crucial adhesion and signaling centers on the cell surface [63]. The silencing of integrin beta subunits has been shown to negatively impact the development of various arthropods, including the Oriental tobacco budworm Helicoverpa assulta [64] and the beet armyworm Spodoptera exigua [58]. In Ixodes ricinus ticks, reduced expression of integrin beta led to decreased engorgement [65]. In our study, innexin was highly expressed in the midgut, while ITGB1 was highly expressed in the midgut, ovaries, and legs but moderately expressed in the salivary glands suggesting a potentially significant role in tick biology, particularly in the processes of blood-feeding and salivary gland function.

We next investigated Aquaporin (AQP12B), which exhibited high levels of expression in the legs but low expression in other organs (e.g., g16408, g4905). We identified three aquaporins, each at different loci. In ticks, aquaporins (aquaporin 1 and aquaporin 2) have a critical role in osmoregulation across cellular membranes, including the salivary gland during feeding [66]. Aquaporin 1 can be detected in the gut, rectal sac, and salivary glands, while Aquaporin 2 is solely expressed in the salivary glands [67, 68]. Although it is challenging to develop aquaporin 1-derived anti-tick vaccines due to the high structural similarities between tick and bovine host aquaporin 1 ortholog, recombinant tick aquaporin 1 antigens were successful against I. ricinus and R. microplus [69, 70]. Furthermore, vaccination with I. ricinus aquaporin 1 and a highly-conserved aquaporin 1 motif showed an efficacy of 32% and 80%, respectively, in controlling I. ricinus larvae in rabbits by reducing tick survival and molting [70]. Moreover, cattle vaccination with synthetic peptides of aquaporin 2 reduced the number of replete-feeding R. microplus ticks by 25% [71]

Chitin metabolic processes are critical components of various extracellular matrices in arthropods. We detected two members of the carbohydrate-binding module 14 (CBM_14) family as plausible candidates for future examination: Chitin deacetylase 1 (CDA1; g18805) and Obstructor-E (Obst-E; g17730), both containing the Chitin binding Peritrophin-A domain. We found that CDA1 exhibited high expression levels in the ovary and moderate expression in the legs. Obstructor-E showed moderate expression in both the ovary and legs. Chitin deacetylases (CDAs) are enzymes that modify chitin and play essential roles in insect metamorphosis and development [72]. For instance, in the cigarette beetle (Lasioderma serricorne) CDA1 is primarily expressed in late larval and pupal stages, with the highest expression in the integument; its silencing results in high larval mortality and prevents larval-pupal molting [72]. Another study detected a predominant immunogenic 60 kDa protein homologous to arthropod chitin deacetylase (IsCDA) in the Ixodes scapularis acellular epithelial barrier [73]. This is also known as the peritrophic membrane and serves to encapsulate the food bolus during feeding. Although silencing of this protein did not affect peritrophic membrane formation, treatment with antibodies against IsCDA significantly increased B. burgdorferi levels in ticks, indicating a role in spirochete establishment and persistence within I. scapularis [73]. Elsewhere it has been shown that IsCDA disruption impairs the structure of the peritrophic membrane and affects tick engorgement duration and pathogen transmission [74]. By contrast, Obst-E is a secreted protein that plays a significant role in the physical regulation of body shape during metamorphosis in Drosophila melanogaster [75] by facilitating the oriented contractility and expandability in the larval cuticle essential for metamorphic shape change. The absence of Obst-E leads to abnormal puparium formation [75].

Like chitin, cholesterol is a critical component of many arthropod structures, including ecdysteroid hormones and egg waxes. However, this sterol cannot be synthesized directly by the tick [76], and it stands to reason that interrupting such pathways could directly affect fitness. We detected very high expression of Niemann-Pick type C2 (NPC2) protein in the midgut (g5197). This protein is important for mediating intracellular transport and regulation of cholesterol metabolism [77]. In arthropods, NPC2 proteins are also involved in chemical communication [78, 79] and may have a role in odor recognition in ticks [80]. NPC2 has been detected in H. longicornis [81], I. ricinus [82] and A. americanum [78]. In another study, NPC2 proteins were found to be expressed at each developmental stage of Rhipicephalus linnaei with the highest levels in adult males; molecular docking indicated that several amino acid residues in this protein could bind multiple ligands, suggesting that these residues might be important in chemosensation [80]. Our study also showed high expression of Sterol O-acyltransferase 1 (SOAT1; g2856) in the ovaries, midgut, and legs. SOAT1 proteins are involved in processes such as lipoprotein assembly and the absorption and metabolism of cholesterol [83]. This protein has similarly been detected in the midgut of adult female Rhipicephalus species [84] and in the midgut and ovaries of R. microplus [57, 85].

Among the proteins that we predicted as potential vaccine candidates was SPARC (g2853), which exhibited high expression in the ovaries and midgut, with nominal expression in the salivary glands and legs of the H. longicornis ticks in our study. SPARC is a calcium-binding glycoprotein that was first detected in calf bones [86]. In the cockroach Blattella germanica, it functions in oogenesis by regulating follicular cell mitosis and maintaining cytoskeleton integrity [87]. Among insects, SPARC has been thoroughly studied in D. melanogaster, where it also has roles in oogenesis, embryo development, maintaining tissue integrity [88], and heart development [89]. Another study detected SPARC in the proteome of Rhipicephalus sanguineus tick saliva, but its main function in ticks has not yet been identified [90]. Our results also showed very high expression of Follistatin-like 1 (g22970) in the ovary, midgut, and legs, consistent with the homolog previously identified in H. longicornis ovaries; it may play a role in the negative regulation of cellular growth [91]. It has been shown that this gene is expressed in all tick life stages in the midgut, salivary glands, and hemocytes [91]. Silencing of follistatin causes a decrease in tick oviposition but does not affect blood feeding [91].

Finally, we noted potential vaccine candidates that are likely to be involved in the tick nervous system; two such predicted proteins were annotated as Neurexin IV (NRX-4/CNTNAP1; g22371 and g21630), which showed high expression in the legs and moderate expression in the ovary, midgut, and salivary gland. Neurexin IV was first identified in Drosophila (FLYBASE:FBgn0013997) and characterized as a new integral protein of septate junctions (SJs) [92] where they act predominantly at the presynaptic terminal in neurons and play essential roles in neurotransmission and differentiation of synapses [93]. These proteins may have additional roles in the initiation of myelination and glial wrapping [94, 95]. Although integral components of synaptic terminals may not be commonly associated with reverse-vaccinology approaches due to the nature of their localization, the function of NRX-4 at the plasma membrane of paracellular diffusion barriers may still mean antigenic sites could be exposed to host immune effectors during a blood meal.

Conclusions

PacBio HiFi and Hi-C sequencing coupled with organ-specific transcriptome profiling facilitated a highly contiguous genome assembly of invasive H. longicornis ticks in North America. Assembly completeness with respect to gene content as assessed by BUSCO identified 962 (96.1%) core eukaryote orthologs and underlines the robust nature of this assembly and its value as a future resource for tick genomic research. Moreover, our organ-specific analyses yielded many significant localizations across key organ systems in ovaries, salivary glands, midguts, and legs; we identified several thousand up- and down-regulated genes, highlighting the complex expression networks underlying tick physiology. Using these data, our bioinformatic screening identified many potential anti-tick vaccine candidates, including key members of diverse pathways that include cellular morphogenesis, osmoregulation, chitin-binding, cholesterol metabolism, oogenesis, and neural development. We envision that these will be among many targets for further experimentation aimed at validation. Our work provides a firm foundation for genetic and functional studies of parthenogenetic H. longicornis in North America and will inform vaccine development and other interventions for reducing these arthropods’ burden on human and animal health.
